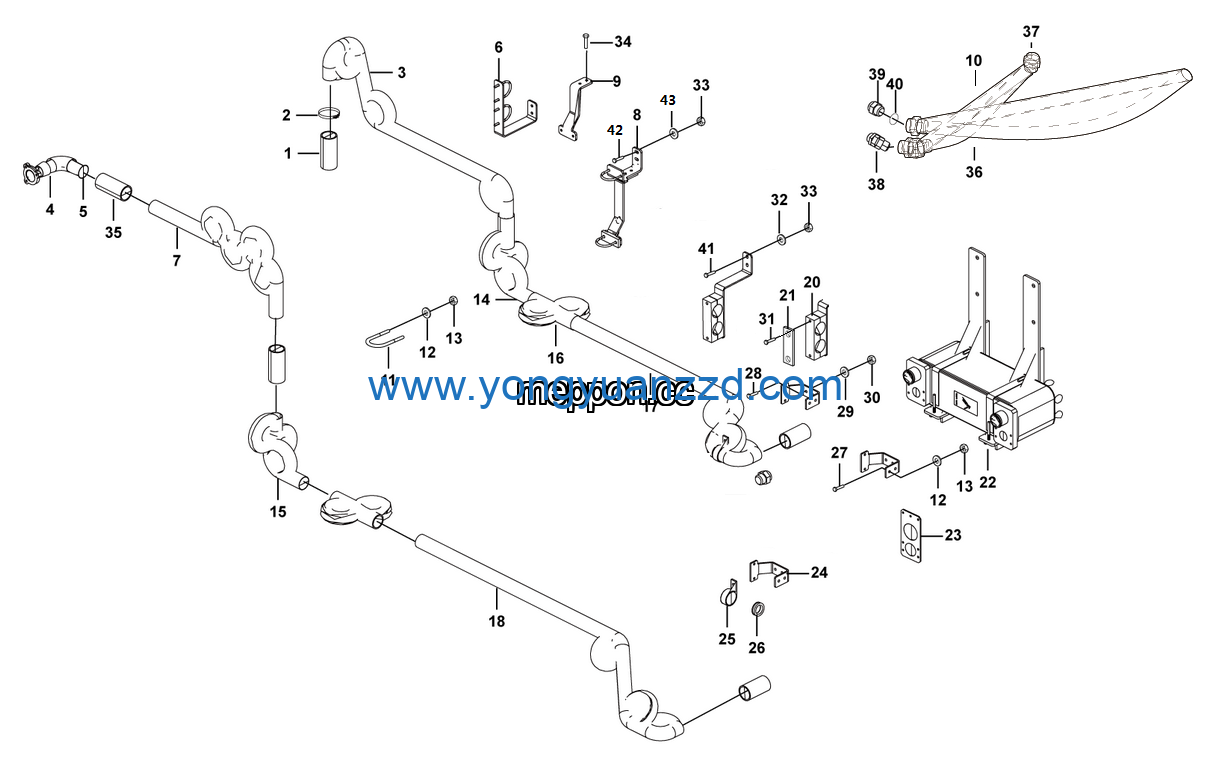

LGMG Off-Highway Dump Truck 2022 – Oil Radiator assy – A0300-2703012583
Category: 2022 > Off-Highway Dump Truck > MT106 > M1060W3A0A008
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Oil pipe assy 16# 201-16-1000 | 4110705307 | 1 |
| 2 | Ubolt | 27030120641 | 6 |
| 3 | Washer GB96.1-8EpZn-300HV | 4015000256 | 10 |
| 4 | Nut GB6170-M8EpZn-8 | 4013000033 | 28 |
| 5 | Pipe | 27030122741 | 1 |
| 6 | Pipe | 27030123211 | 1 |
| 7 | Pipe | 27030122761 | 2 |
| 8 | Pipe | 27030123221 | 1 |
| 9 | Pipe | 27030123241 | 1 |
| 10 | O-ring TD004104 | 4110704949 | 2 |
| 11 | Pipe | 27030121541 | 3 |
| 12 | WITHIN BEAM | 27030112491 | 4 |
| 13 | RIGHT CARLING | 27030112501 | 2 |
| 14 | Assemble | 27030123111 | 1 |
| 15 | Support4 | 27030122451 | 2 |
| 16 | Plate | 27030123201 | 2 |
| 17 | Pipe clamp LGB167-1060 | 4041000867 | 2 |
| 18 | Cushion sleeve LGB123-1060 | 4041000866 | 2 |
| 19 | Bolt GB5783-M8*30EpZn-8.8 | 4011000107 | 4 |
| 20 | Bolt GB5783-M12*30EpZn-8.8 | 4011000089 | 2 |
| 21 | Washer GB97.1-12EpZn-300HV | 4015000168 | 2 |
| 22 | No longer used | 4019010101 | 16 |
| 23 | Nut GB6170-M12EpZn-8 | 4013000011 | 2 |
| 24 | Bolt GB5782-M10*50EpZn-8.8 | 4011000048 | 10 |
| 25 | Washer GB97.1-10EpZn-300HV | 4015000162 | 18 |
| 26 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 18 |
| 27 | Bolt GB5782-M10*35EpZn-8.8 | 4011010164 | 4 |
| 28 | Pipe ⅱ | 27030118751 | 3 |
| 29 | Oil pipe 16# 201-16-550 | 4110705308 | 1 |
| 30 | Reduceing transition joint TD001239 | 4110705311 | 2 |
| 31 | Straight joint 16# TD001218 | 4110705310 | 2 |
| 32 | 45°Joint 16#（TD001217） | 4110705309 | 2 |
| 33 | Pipe | 27030122751 | 1 |
| 34 | O-ring TD004102 | 4110705312 | 5 |
| 35 | Bolt GB5782-M10*100EpZn-8.8 | 4011000817 | 4 |
| 36 | Bolt GB5786-M14*1.5*30-8.8 | 4011000903 | 2 |
| 37 | Washer GB96.1-14EpZn-300HV | 4015000188 | 2 |
| 38 | Pipe | 27030121391 | 1 |
| 39 | Pipe | 27030122951 | 1 |
| 40 | Support1 | 27030124041 | 1 |
| 41 | Pipe | 27030123231 | 1 |
| 42 | Support2 | 27030124051 | 2 |
| 43 | Support3 | 27030124061 | 2 |
