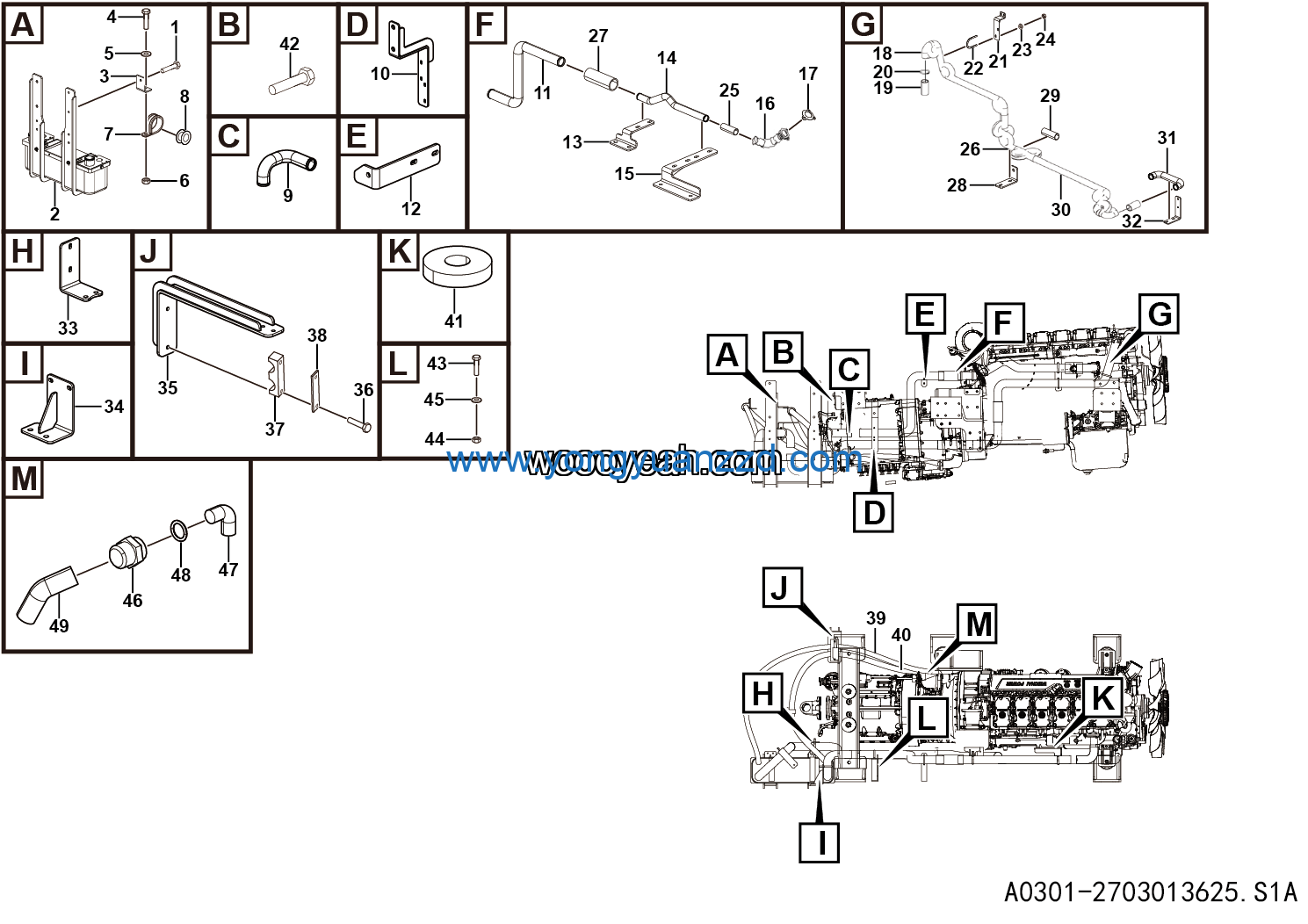

LGMG Off-Highway Dump Truck 2022 – Oil Radiator assy – A0301-2703013625.S1A
Category: 2022 > Off-Highway Dump Truck > MT96L > M096LW3A0A101
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bracket | 27030136451 | 1 |
| 2 | Pipe | 27030136281 | 1 |
| 3 | Support | 27030136421 | 1 |
| 4 | Bracket | 27030136391 | 1 |
| 5 | Pipe | 27030136271 | 1 |
| 6 | Bracket | 27030136321 | 1 |
| 7 | Pipe | 27030121391 | 1 |
| 8 | Pipe | 27030122951 | 1 |
| 9 | Pipe | 27030122751 | 1 |
| 10 | Pipe | 27030121541 | 3 |
| 11 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 7 |
| 12 | T-bolt clamp φ68-φ76 | 4190707306 | 36 |
| 13 | Bracket | 27030136351 | 1 |
| 14 | Ubolt | 27030120641 | 11 |
| 15 | Washer GB96.1-8EpZn-300HV | 4015000256 | 22 |
| 16 | Nut GB6170-M8EpZn-8 | 4013000033 | 44 |
| 17 | Pipe ⅱ | 27030118751 | 4 |
| 18 | Pipe | 27030122741 | 1 |
| 19 | Connecting hose | 27030136881 | 1 |
| 20 | Bracket | 27030136381 | 1 |
| 21 | Pipe | 27030122761 | 1 |
| 22 | Oil cooler mounting assembly | 27030136261 | 1 |
| 23 | Pipe | 27030136301 | 1 |
| 24 | Bracket | 27030136521 | 1 |
| 25 | Pipe | 27030136311 | 1 |
| 26 | Bracket | 27030136511 | 1 |
| 27 | Bracket | 27030136481 | 1 |
| 28 | Oil cooler fixed bracket | 27030136571 | 1 |
| 29 | Bolt GB5782-M10*85EpZn-8.8 | 4011010016 | 2 |
| 30 | Rubber plate | 27030106751 | 2 |
| 31 | Plate | 27030106761 | 1 |
| 32 | Outlet pipe assy | 4110001327 | 1 |
| 33 | Support ii | 27030107221 | 2 |
| 34 | Oil inlet hose assy | 4110001326 | 1 |
| 35 | Bracket backing plate | 27030136871 | 1 |
| 36 | Bolt GB5783-M10*50EpZn-8.8 | 4011000489 | 1 |
| 37 | Bolt GB5782-M16*70EpZn-8.8 | 4011000231 | 2 |
| 38 | Nut GB6185.1-M16EpZn-8 | 4013010122 | 2 |
| 39 | Washer GB97.1-16EpZn-300HV | 4015000181 | 2 |
| 40 | Adapter | 4110001033 | 2 |
| 41 | 90°Elbow CX31-1503602 | 4110001125 | 2 |
| 42 | O-ring | 4110001036 | 4 |
| 43 | 45°Joint CX31-1503601 | 4110001126 | 2 |
| 44 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 4 |
| 45 | Washer GB97.1-10EpZn-300HV | 4015000162 | 13 |
| 46 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 13 |
| 47 | Pipe clamp LGB167-0846 | 4041010082 | 2 |
| 48 | CUSHION SLEEVE LGB123-0846 | 4041001636 | 2 |
| 49 | Pipe | 27030136291 | 1 |
