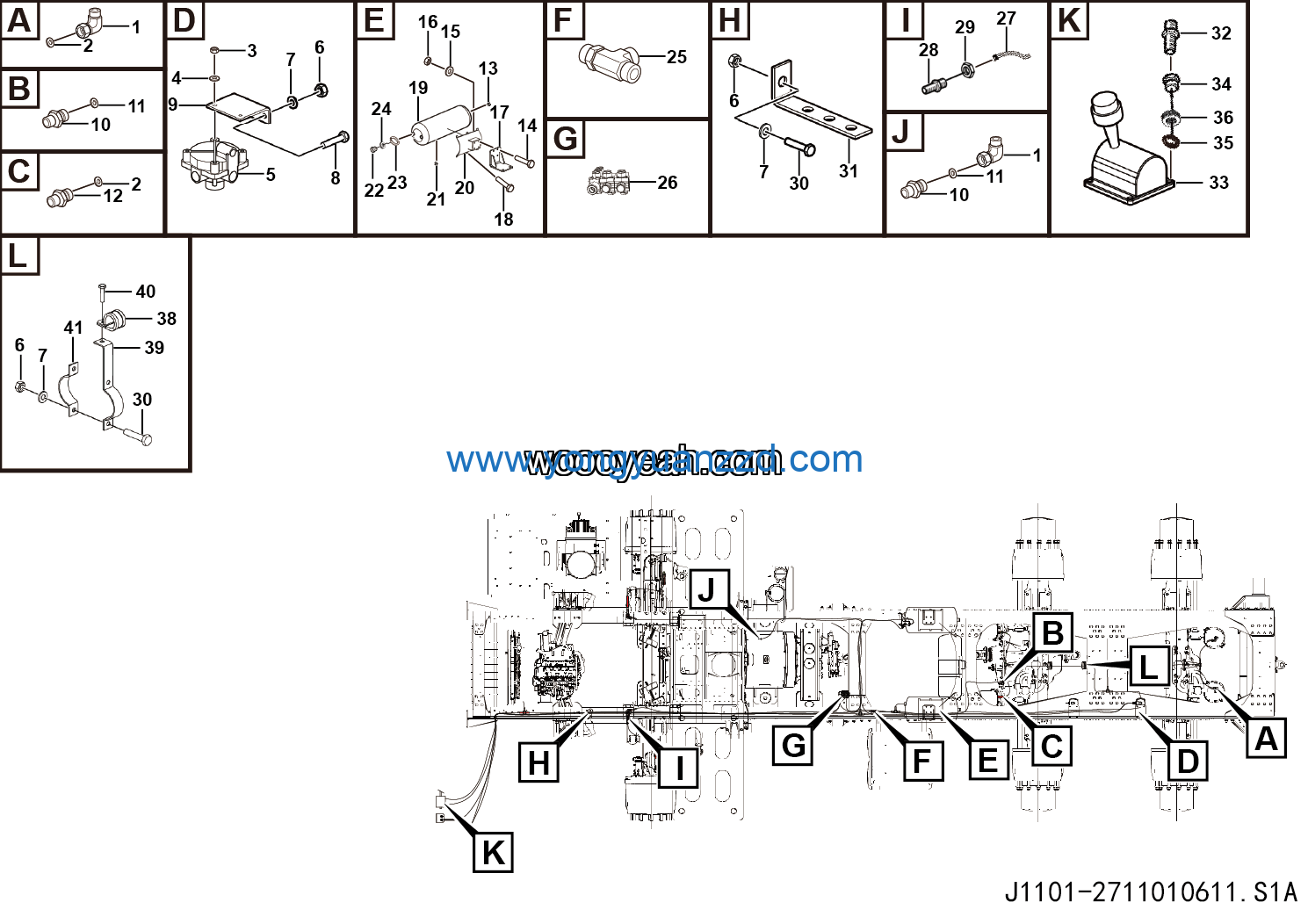

LGMG Off-Highway Dump Truck 2022 – Parking brake assy – J1101-2711010611.S1A

Category: 2022 > Off-Highway Dump Truck > MTE86H > M086HE0A2A101

No.	Part Name	Part Number	Qty
1	Joint M12-M12	27110101331	2
2	Washer JB982-12	4015000327	2
3	CONNECTOR	27100100661	4
4	Plug NG12-M22*1.5	4120000201	2
5	Bolt GB5782-M16*65EpZn-10.9	4011010012	4
6	Washer GB97.1-16EpZn-300HV	4015000181	4
7	Nut GB6170-M16EpZn-8	4013000016	4
8	Plate	27160122441	2
9	Bolt GB5783-M10*30EpZn-8.8	4011000084	8
10	Air reservoir 30L（275）	4120000142	2
11	M16-M18 rectangular connector	27100100641	2
12	Air reservoir bracket	27110101222	1
13	Drain valve	4120000200	2
14	Nut seat NG12	4120000190	5
15	Clip spring NG12	4120000192	5
16	Elastic element NG12	4120000193	5
17	T-connector M14-M12-M14	27110101341	1
18	Module installation assembly	27110106011	1
19	Air pipe gpu-13-i-880-sg	27100107441	2
20	Partition connector body L12 NG12	4120000257	2
21	Nut M18	4120000230	4
22	Washer JB982-16	4015000141	6
23	Bolt GB5783-M10*45EpZn-8.8	4011000514	6
24	Bracket 1	27100103561	2
25	connector	27110101371	1
26	Hand brake valve	4120000134	1
27	Nut seat NG8	4120000194	2
28	Clip spring NG8	4120000196	2
29	Elastic element NG8	4120000197	2
30	Combination joint LGB143-01205	4041010126	1
31	CLAMP	27110102381	4
32	Bracket 2	27100108201	4
33	Nut GB6170-M8EpZn-8	4013000033	2
34	Bolt GB5783-M10*25EpZn-8.8	4011000082	8
35	Support	27100108931	4
36	Washer GB97.1-8EpZn-300HV	4015000072	2
37	Relay valve	4120001087	1
38	Nut GB6170-M10EpZn-8	4013000007	16
39	Washer GB97.1-10EpZn-300HV	4015000162	24
40	Bolt GB5782-M10*50EpZn-8.8	4011000048	2
41	Plate	27100106811	1
