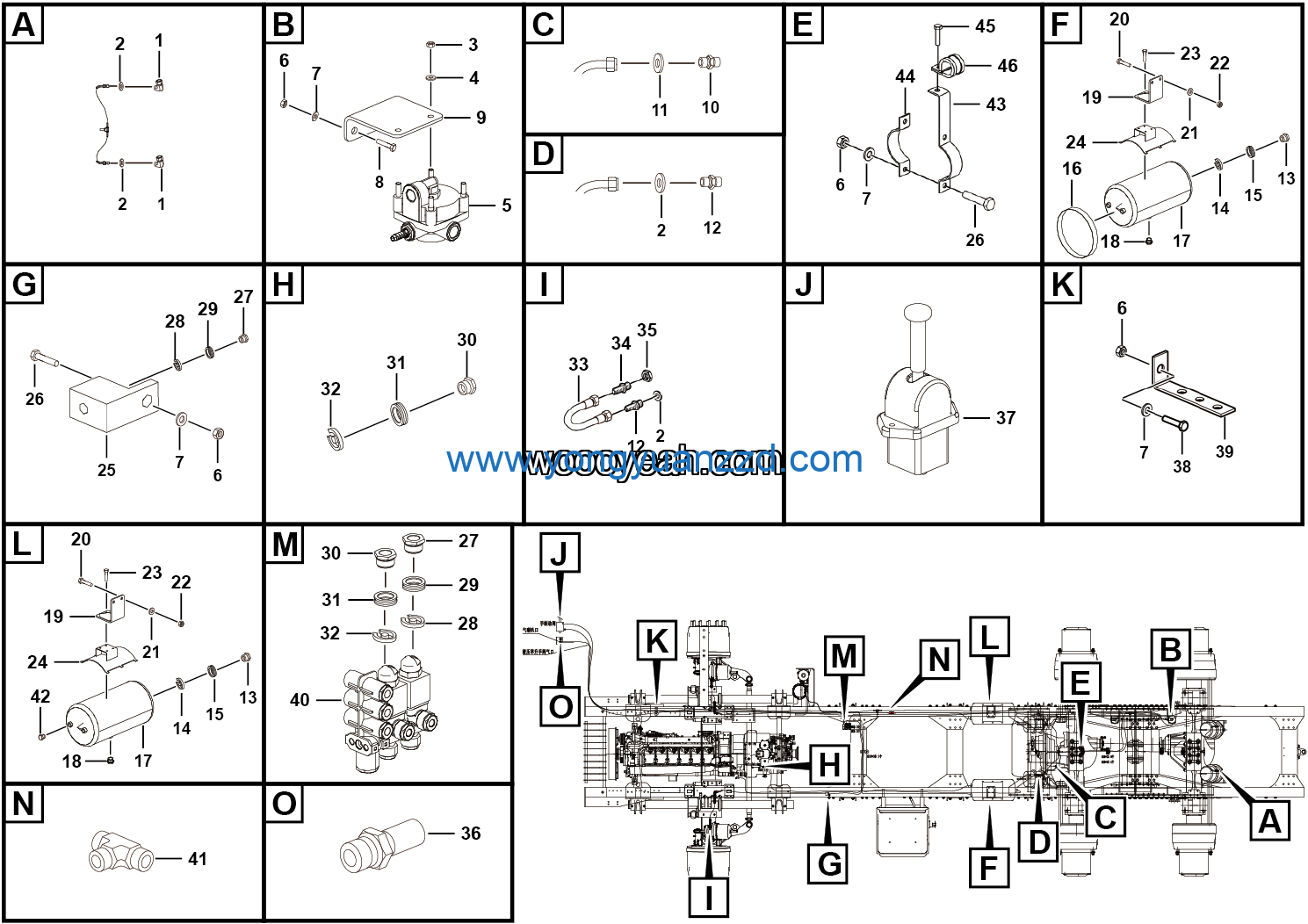

LGMG Off-Highway Dump Truck 2022 – Parking brake assy – J1101-2711010617.S1A
Category: 2022 > Off-Highway Dump Truck > MT86M > M086MW3E0M001
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Joint M12-M12 | 27110101331 | 1 |
| 2 | Washer JB982-12 | 4015000327 | 1 |
| 3 | CONNECTOR | 27100100661 | 4 |
| 4 | Nut seat NG12 | 4120000190 | 5 |
| 5 | Clip spring NG12 | 4120000192 | 5 |
| 6 | Elastic element NG12 | 4120000193 | 5 |
| 7 | Hose clamp φ275-φ280 | 4120000178 | 4 |
| 8 | Air reservoir 30L（275） | 4120000142 | 2 |
| 9 | Drain valve | 4120000200 | 2 |
| 10 | Air reservoir fixed bracket assembly | 27110103741 | 2 |
| 11 | M16-M18 rectangular connector | 27100100641 | 2 |
| 12 | Bolt GB5783-M16*55EpZn-8.8 | 4011000612 | 4 |
| 13 | Washer GB97.1-16EpZn-300HV | 4015000181 | 4 |
| 14 | Nut GB6170-M16EpZn-8 | 4013000016 | 4 |
| 15 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 9 |
| 16 | Air reservoir bracket | 27110101221 | 2 |
| 17 | Pressure switch block | 27110101381 | 1 |
| 18 | Bolt GB5783-M10*45EpZn-8.8 | 4011000514 | 5 |
| 19 | Nut seat NG6 | 4120000213 | 3 |
| 20 | Clip spring NG6 | 4120000212 | 3 |
| 21 | Elastic element NG6 | 4120000211 | 3 |
| 22 | Washer JB982-16 | 4015000141 | 6 |
| 23 | Nut seat NG8 | 4120000194 | 3 |
| 24 | Elastic element NG8 | 4120000197 | 3 |
| 25 | Clip spring NG8 | 4120000196 | 3 |
| 26 | Air pipe gpu-13-i-880-sg | 27100107441 | 2 |
| 27 | Partition connector body L12 NG12 | 4120000257 | 2 |
| 28 | Nut M18 | 4120000230 | 4 |
| 29 | connector | 27110101371 | 1 |
| 30 | Hand brake valve | 4120000134 | 1 |
| 31 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 1 |
| 32 | Bracket 1 | 27100103561 | 3 |
| 33 | Nut GB6170-M8EpZn-8 | 4013000033 | 2 |
| 34 | Two solenoid valve assy | 4120001139 | 1 |
| 35 | T-connector M14-M12-M14 | 27110101341 | 1 |
| 36 | Plug NG12-M22*1.5 | 4120000201 | 1 |
| 37 | Support | 27100108931 | 4 |
| 38 | Bracket 2 | 27100108201 | 4 |
| 39 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 8 |
| 40 | CLAMP | 27110102381 | 4 |
| 41 | Washer GB97.1-8EpZn-300HV | 4015000072 | 2 |
| 42 | Relay valve | 4120001087 | 1 |
| 43 | Nut GB6170-M10EpZn-8 | 4013000007 | 17 |
| 44 | Washer GB97.1-10EpZn-300HV | 4015000162 | 17 |
| 45 | Bolt GB5782-M10*50EpZn-8.8 | 4011000048 | 2 |
| 46 | Plate | 27100106811 | 1 |
