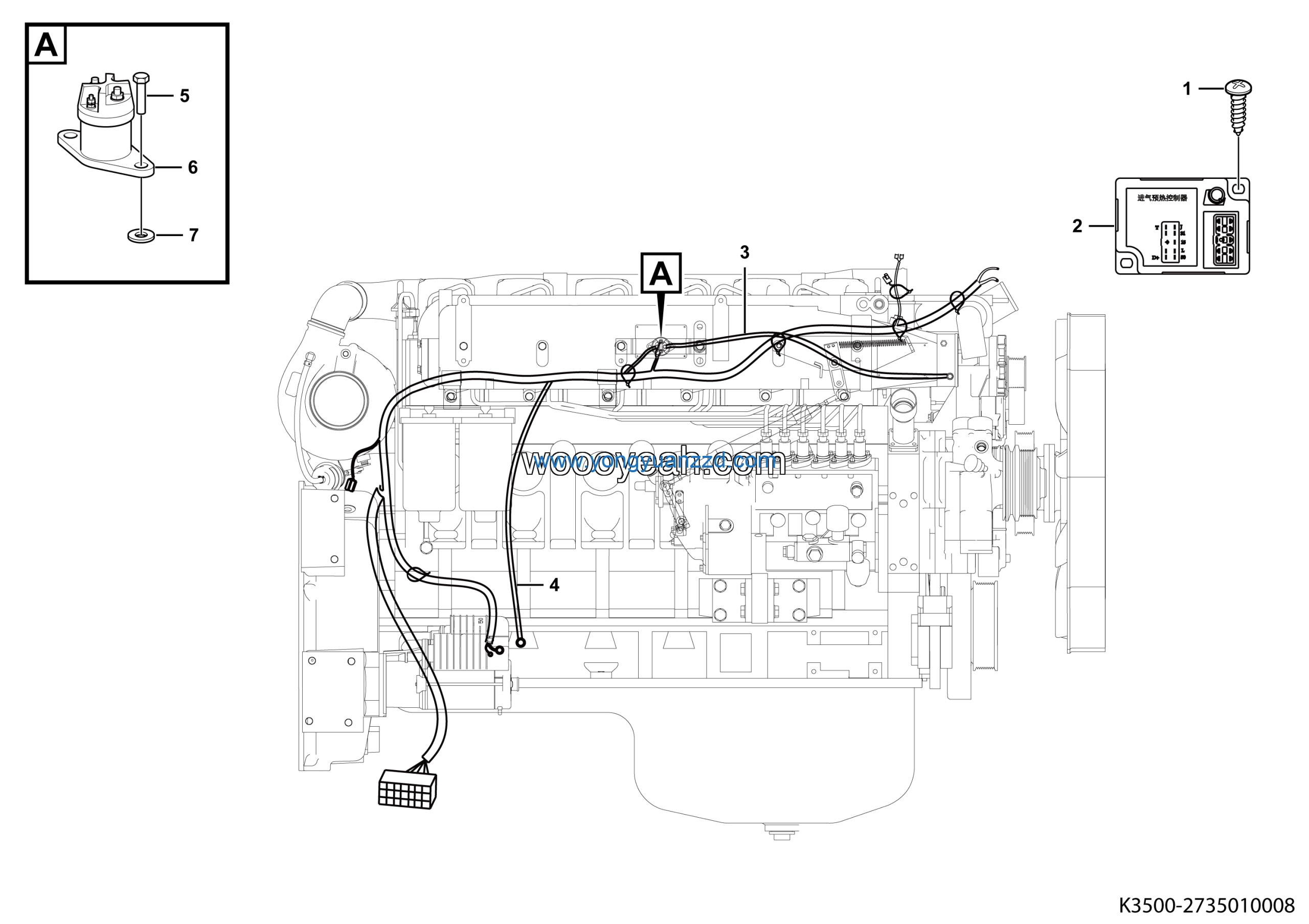

LGMG Off-Highway Dump Truck 2022 – Preheat electrical system assy – K3500-2735010008
Category: 2022 > Off-Highway Dump Truck > MT86H- > M086HWC66
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Screw GB818-M5*16EpZn-4.8 | 4014000088 | 2 |
| 2 | Intake preheat controller | 4130000293 | 1 |
| 3 | WIRE P15*800 | 27200102281 | 1 |
| 4 | ting preheat power cable 1P15*800 | 27200102271 | 1 |
| 5 | Bolt GB5783-M5*16EpZn-8.8 | 4011010096 | 2 |
| 6 | Preheating relay | 4130000273 | 1 |
| 7 | Washer GB97.1-5EpZn-300HV | 4015000110 | 4 |
