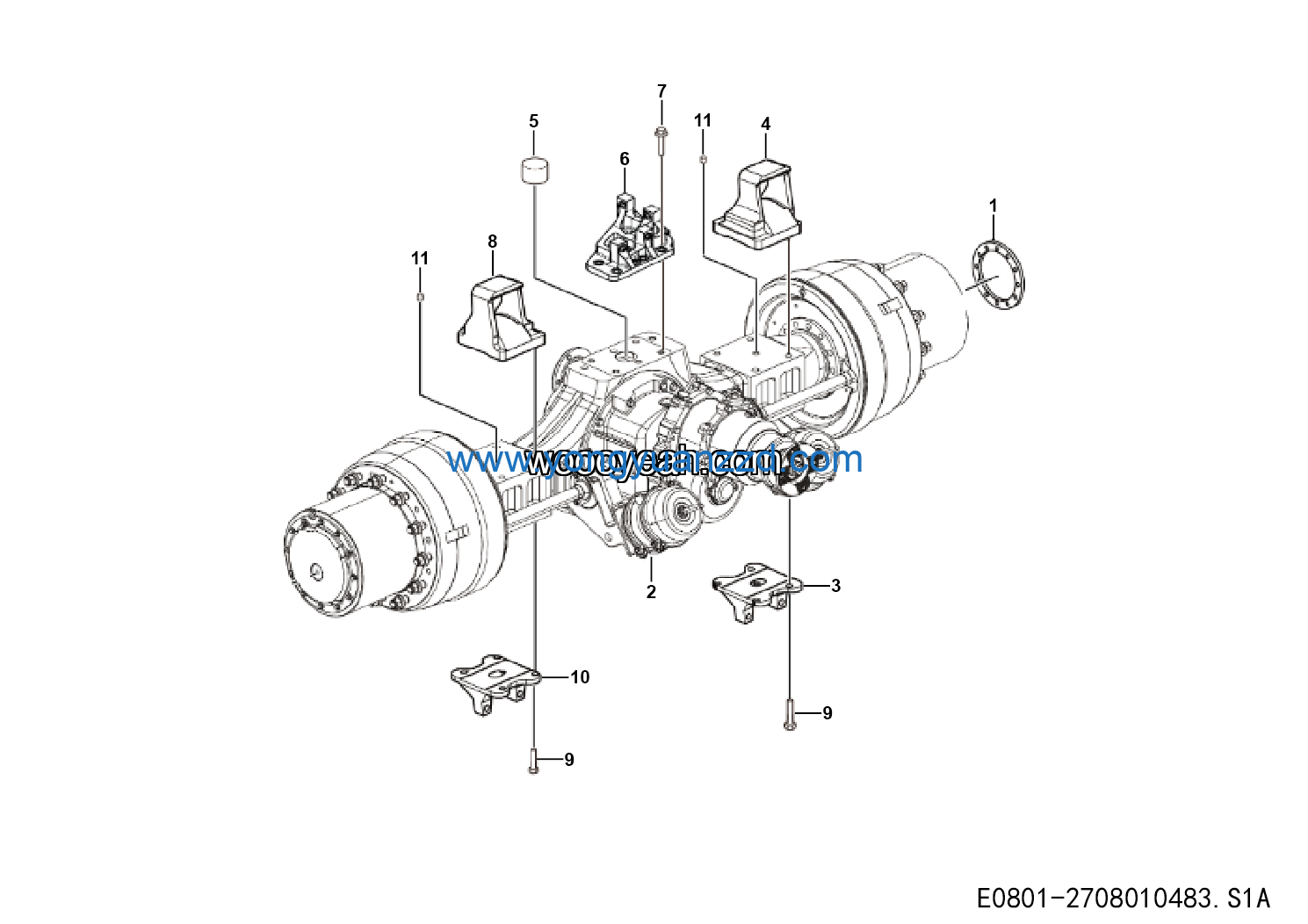

LGMG Off-Highway Dump Truck 2022 – Rear axle assy – E0801-2708010483.S1A
Category: 2022 > Off-Highway Dump Truck > MT60 > M060DW2E0M107
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Right support | 27070103891 | 1 |
| 2 | PIN | 27070103491 | 4 |
| 3 | Plate | 27070103841 | 2 |
| 4 | RR axle assy | 4110002028 | 1 |
| 5 | Left support | 27070103881 | 1 |
| 6 | Plate | 27080103301 | 1 |
| 7 | Locating pin | 27070101441 | 1 |
| 8 | Seat | 27120117371 | 1 |
| 9 | Bolt m24*2*60 | 27070103901 | 8 |
| 10 | Plate | 27080103311 | 1 |
| 11 | Bolt m24*2*250 | 27070103911 | 8 |
