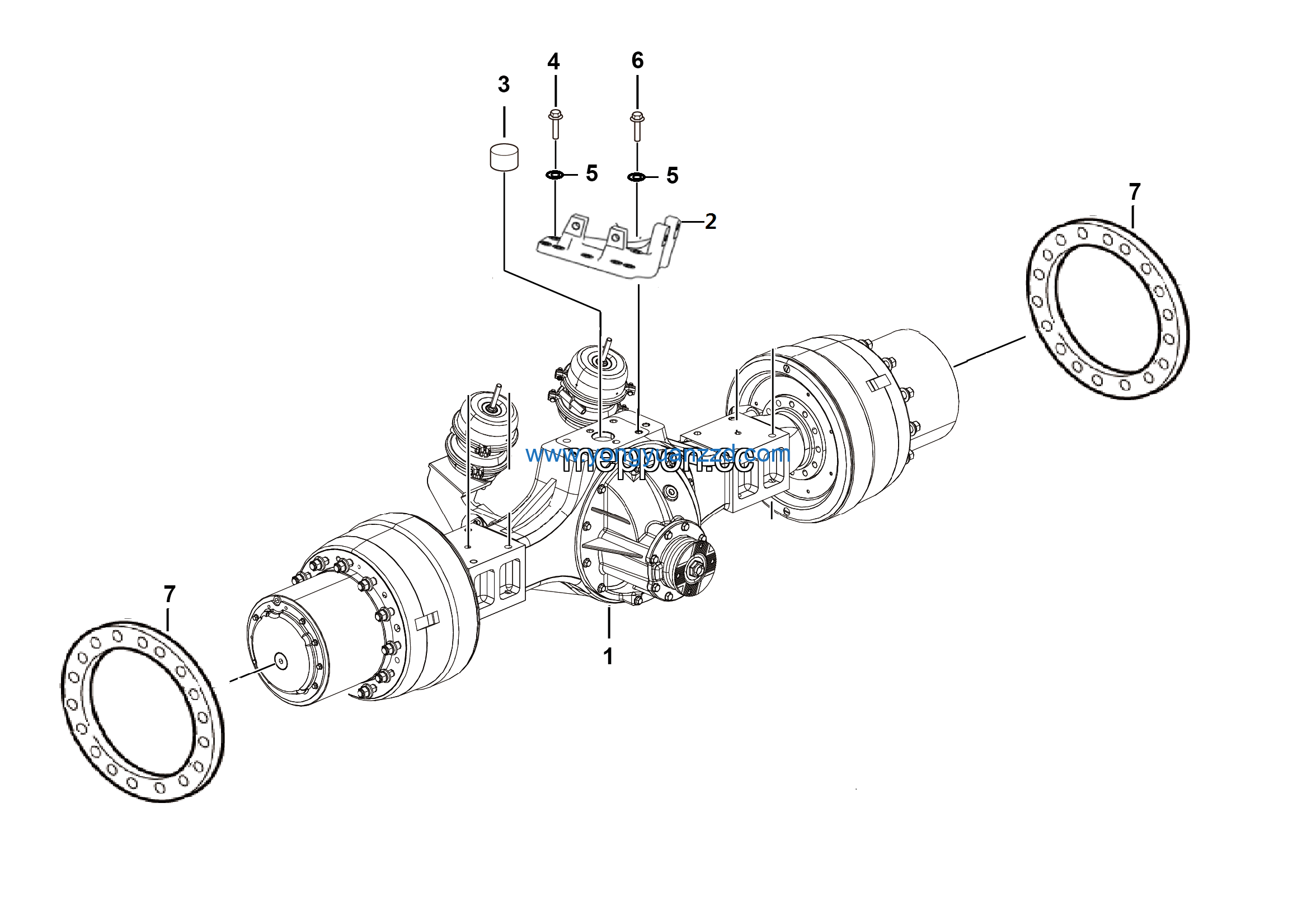

LGMG Off-Highway Dump Truck 2022 – Rear axle mounting assy PX40T – E0801-2708010495
Category: 2022 > Off-Highway Dump Truck > MT106H > M106HW3A0M002
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | RR axle assy PX40T（i=16.641） | 4110705509 | 1 |
| 2 | Support saddle | 27080103811 | 1 |
| 3 | Locating pin | 27070101441 | 1 |
| 4 | BOLT GB5785-M24*2*150-8.8 | 4011000117 | 1 |
| 5 | Washer | 27120111491 | 11 |
| 6 | BOLT GB5785-M24*2*80-12.9 | 4110001615 | 10 |
| 7 | Dummy plate | 27070104401 | 2 |
