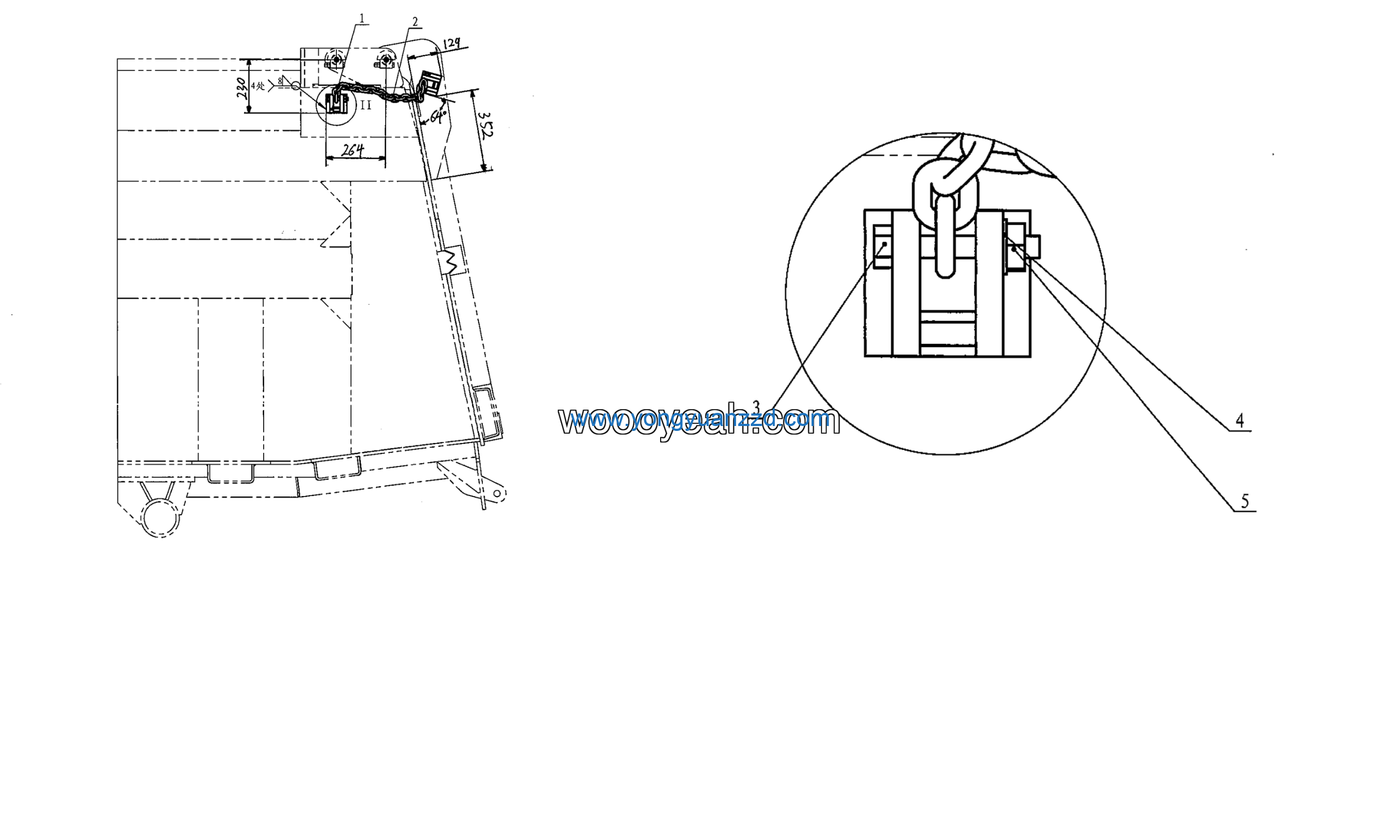

LGMG Off-Highway Dump Truck 2022 – Rear door secondary safety assy – L1700-2717026818
Category: 2022 > Off-Highway Dump Truck > MT86H- > M086HWE27
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Plate | 27170269101 | 4 |
| 2 | Plate | 27170269161 | 2 |
| 3 | BOLT | 4011011211 | 4 |
| 4 | Washer GB97.1-12flZnyc-300HV-480 | 4015010340 | 4 |
| 5 | Nut GB889.1-M12flznyc-8-480 | 4013010301 | 8 |
