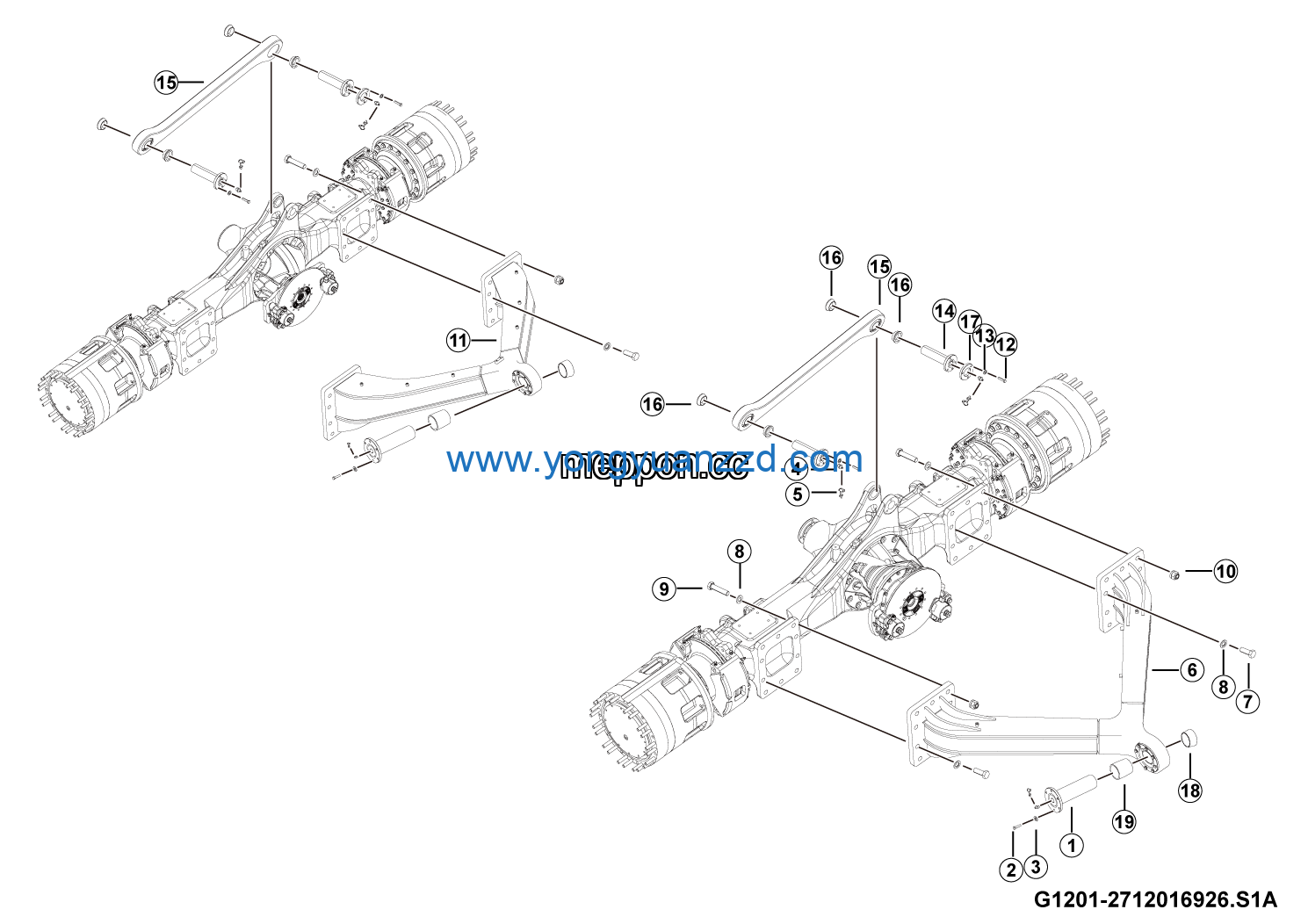

LGMG Off-Highway Dump Truck 2022 – Rear guide assy – G1201-2712016926.S1A
Category: 2022 > Off-Highway Dump Truck > – > R1260Y3A0A001
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Six angle with the shoulder self-locking nut | 27120103841 | 22 |
| 2 | Rear axle a grame mounting assembiy | 27120169391 | 1 |
| 3 | Bolt GB5782-M12*50EpZn-8.8 | 4011000064 | 12 |
| 4 | Washer GB97.1-12EpZn-300HV | 4015000168 | 12 |
| 5 | Pin | 27120169771 | 4 |
| 6 | Tie rod assembiy | 27120169741 | 2 |
| 7 | Pin | 27120169761 | 8 |
| 8 | Plate | 27120169871 | 2 |
| 9 | Spacer | 27120169841 | 2 |
| 10 | Spacer | 27120169831 | 2 |
| 11 | Pin | 27120169801 | 2 |
| 12 | Bolt GB5783-M12*45flZnyc-12.9-480 | 4011010923 | 12 |
| 13 | Washer GB1230-12EpZn-45 | 4015000288 | 12 |
| 14 | Grease nipple JB7940.1-M10*1 | 4030000065 | 6 |
| 15 | Butter nozzle cap JXHF-00006 | 4120000015 | 6 |
| 16 | Middle axle a grame mounting assembiy | 27120169381 | 1 |
| 17 | Bolt GB5786-M30*3*80flZnyc-12.9-480 | 4011011448 | 18 |
| 18 | Washer GB1230-30EpZn-45 | 4015000201 | 40 |
| 19 | Bolt GB5785-M30*3*130fZnyc-12.9-480 | 4011011449 | 22 |
