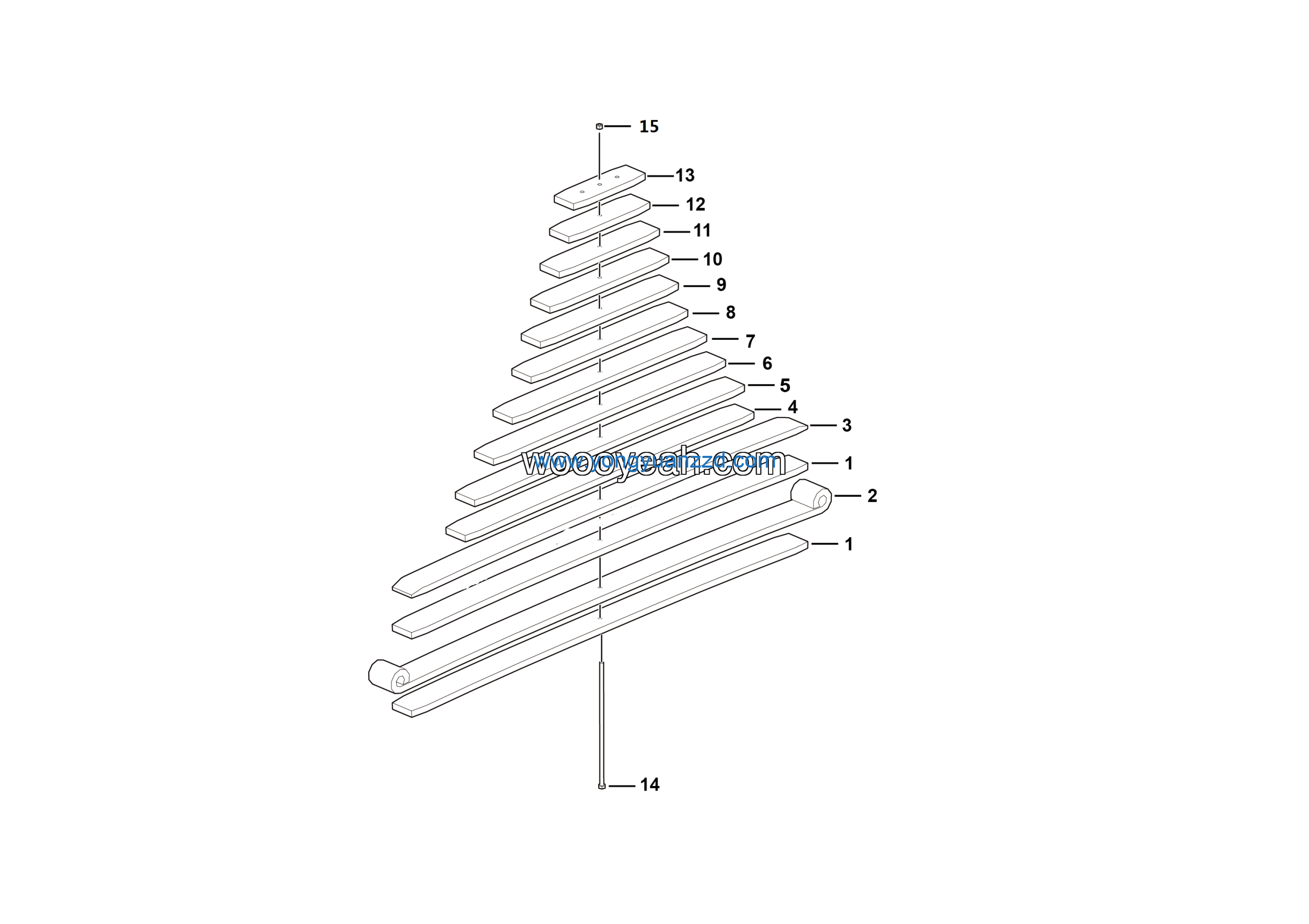

LGMG Off-Highway Dump Truck 2022 – Rear leaf spring assy – G1202-4110702194
Category: 2022 > Off-Highway Dump Truck > CMT66 > C0660W3E0A006
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | 11th leaf of rear leaf spring | 4110703105011 | 1 |
| 2 | 12th leaf of rear leaf spring | 4110703105012 | 1 |
| 3 | 13th leaf of rear leaf spring | 4110703105013 | 1 |
| 4 | 14th leaf of rear leaf spring | 4110703105014 | 1 |
| 5 | Center bolt | 4110703105015 | 1 |
| 6 | Center nut | 4110703105016 | 1 |
| 7 | Leaf of rear leaf spring | 4110703105001 | 2 |
| 8 | 2nd leaf of rear leaf spring | 4110702194002 | 1 |
| 9 | 4th leaf of rear leaf spring | 4110703105004 | 1 |
| 10 | 5th leaf of rear leaf spring | 4110703105005 | 1 |
| 11 | 6th leaf of rear leaf spring | 4110703105006 | 1 |
| 12 | 7th leaf of rear leaf spring | 4110703105007 | 1 |
| 13 | 8th leaf of rear leaf spring | 4110703105008 | 1 |
| 14 | 9th leaf of rear leaf spring | 4110703105009 | 1 |
| 15 | 10th leaf of rear leaf spring | 4110703105010 | 1 |
