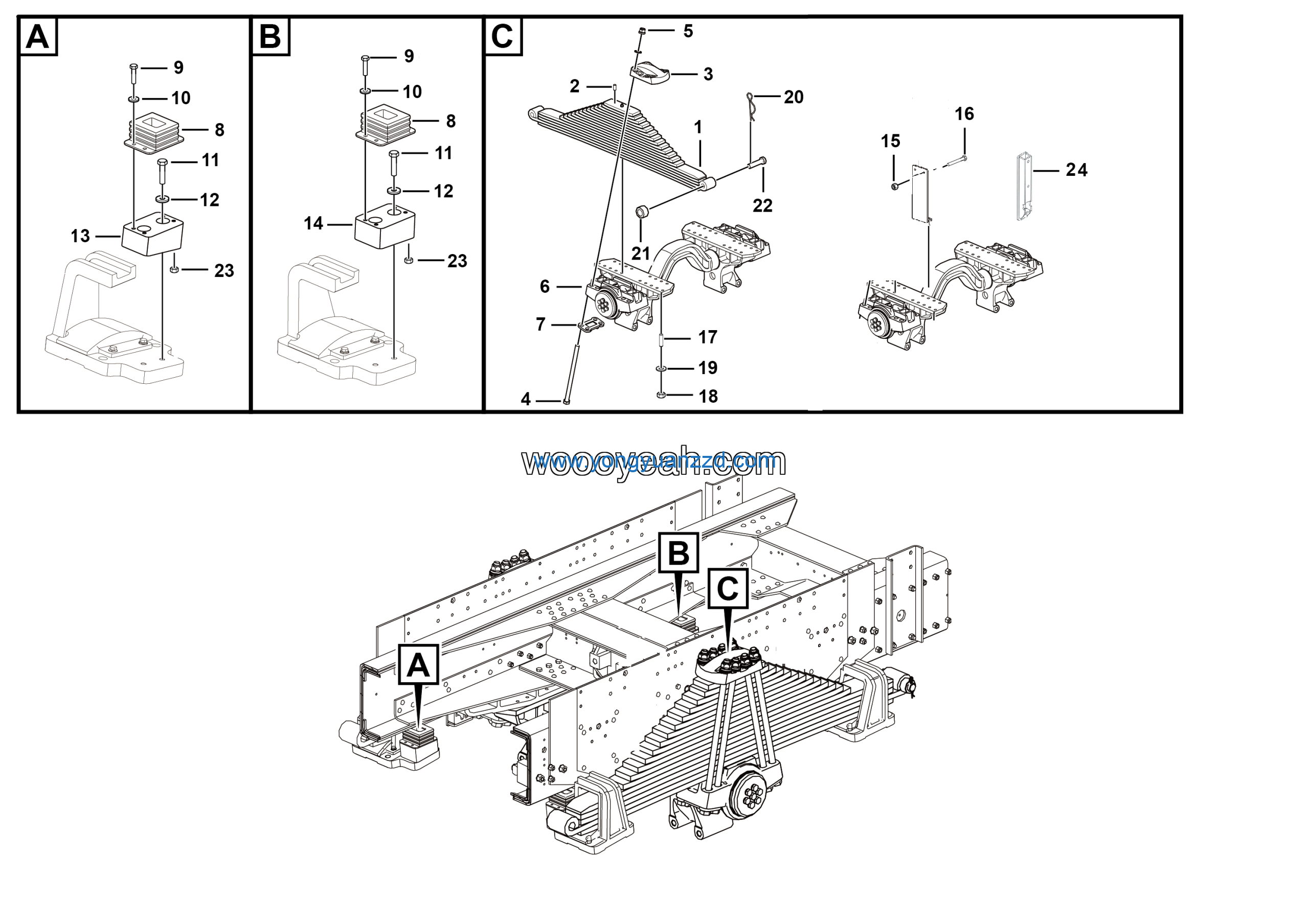

LGMG Off-Highway Dump Truck 2022 – Rear leaf spring installation assy – G1204-2712012324.S1D-G1
Category: 2022 > Off-Highway Dump Truck > MT96L > M096LW3A0M139
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB97.1-10EpZn-300HV | 4015000162 | 16 |
| 2 | Bolt GB5786-M16*1.5*35EpZn-8.8 | 4011000351 | 8 |
| 3 | Washer GB97.1-16EpZn-300HV | 4015000181 | 8 |
| 4 | Bearer of middle axle spacing block | 27120122951 | 2 |
| 5 | Bearer of rear axle spacing block | 27120122961 | 2 |
| 6 | Nut GB6185.1-M14EpZn-8 | 4013010121 | 16 |
| 7 | Bolt GB5782-M14*65EpZn-8.8 | 4011010194 | 16 |
| 8 | STUD GB899-A-M18*1.5*50flZny-12.9-480 | 4012010119 | 36 |
| 9 | Nut GB6171-M18*1.5flZnyc-12-480 | 4013010257 | 36 |
| 10 | Washer gb1230-18-45 | 27120105414 | 36 |
| 11 | RR leaf spring assy LG12-HBH-27 | 4110703078 | 2 |
| 12 | SPLIT PINGB91-8*80EPZN-Q235A | 4110702250 | 4 |
| 13 | Retaining ring | 27120115132 | 4 |
| 14 | Pin | 27120124161 | 4 |
| 15 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 16 |
| 16 | Guide plate | 27120169101 | 4 |
| 17 | Guide pin | 27120103821 | 4 |
| 18 | Spring pressing block | 27120115111 | 2 |
| 19 | Bolt | 27120116781 | 16 |
| 20 | Six angle with the shoulder self-locking nut | 27120103841 | 16 |
| 21 | Balance shaft assembly | 27120170101 | 1 |
| 22 | Base plate | 27120116741 | 4 |
| 23 | Frame bottom limit block | 4110705698 | 4 |
| 24 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 16 |
