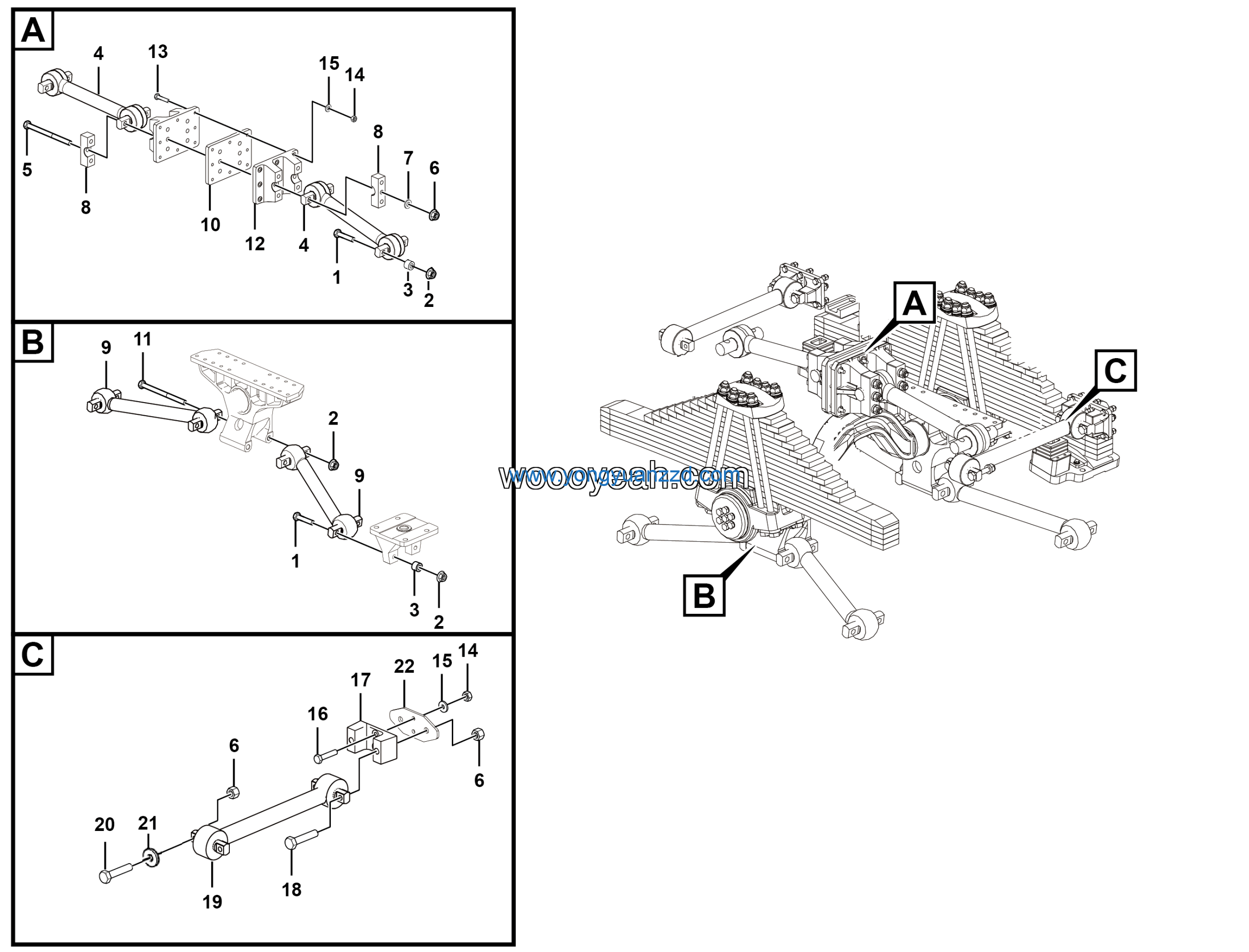

LGMG Off-Highway Dump Truck 2022 – Rear thrust rod installation assy – G1200-2712011503.S1B1
Category: 2022 > Off-Highway Dump Truck > MT96L > M096LW3A0M106-3
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Plate | 27120116841 | 1 |
| 2 | Bolt M27*3*330-12.9 | 27120103721 | 4 |
| 3 | lower thrust bar scale | 27120116811 | 2 |
| 4 | Bolt GB5782-M16*125flZnyc-12.9-480 | 4011010682 | 8 |
| 5 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 12 |
| 6 | Washer GB1230-16EpZn-45 | 4015000001 | 24 |
| 7 | Bolt GB5782-M16*90flZnyc-12.9-480 | 4011010646 | 4 |
| 8 | Across thrust rod frame seat | 27120119961 | 2 |
| 9 | BOLT GB5782-M24*215FLZNYC-12.9-480 | 4110001231 | 4 |
| 10 | Transverse thrust rod | 4110705693 | 2 |
| 11 | Bolt GB5782-M27*180flZnyc-12.9-480 | 4011010563 | 12 |
| 12 | Bolt GB5782-M24*150-12.9 | 4011010489 | 4 |
| 13 | Lock washer NL24-G | 4190707582 | 8 |
| 14 | Plate | 27120119971 | 2 |
| 15 | Hexangular self-locking nut with the shoulder M27 | 27120103881 | 16 |
| 16 | Spacer sleeve | 27120105031 | 12 |
| 17 | Upr thrust rod assy | 4110001986 | 2 |
| 18 | Bolt m24*3*470 | 27120118111 | 6 |
| 19 | Self-locking nut with the shoulder | 27120103611 | 14 |
| 20 | Washer GB1230-24EpZn-45 | 4015000003 | 6 |
| 21 | upper thrust bar scale | 27120116801 | 4 |
| 22 | Lower thrust rod assy | 4110000895 | 4 |
