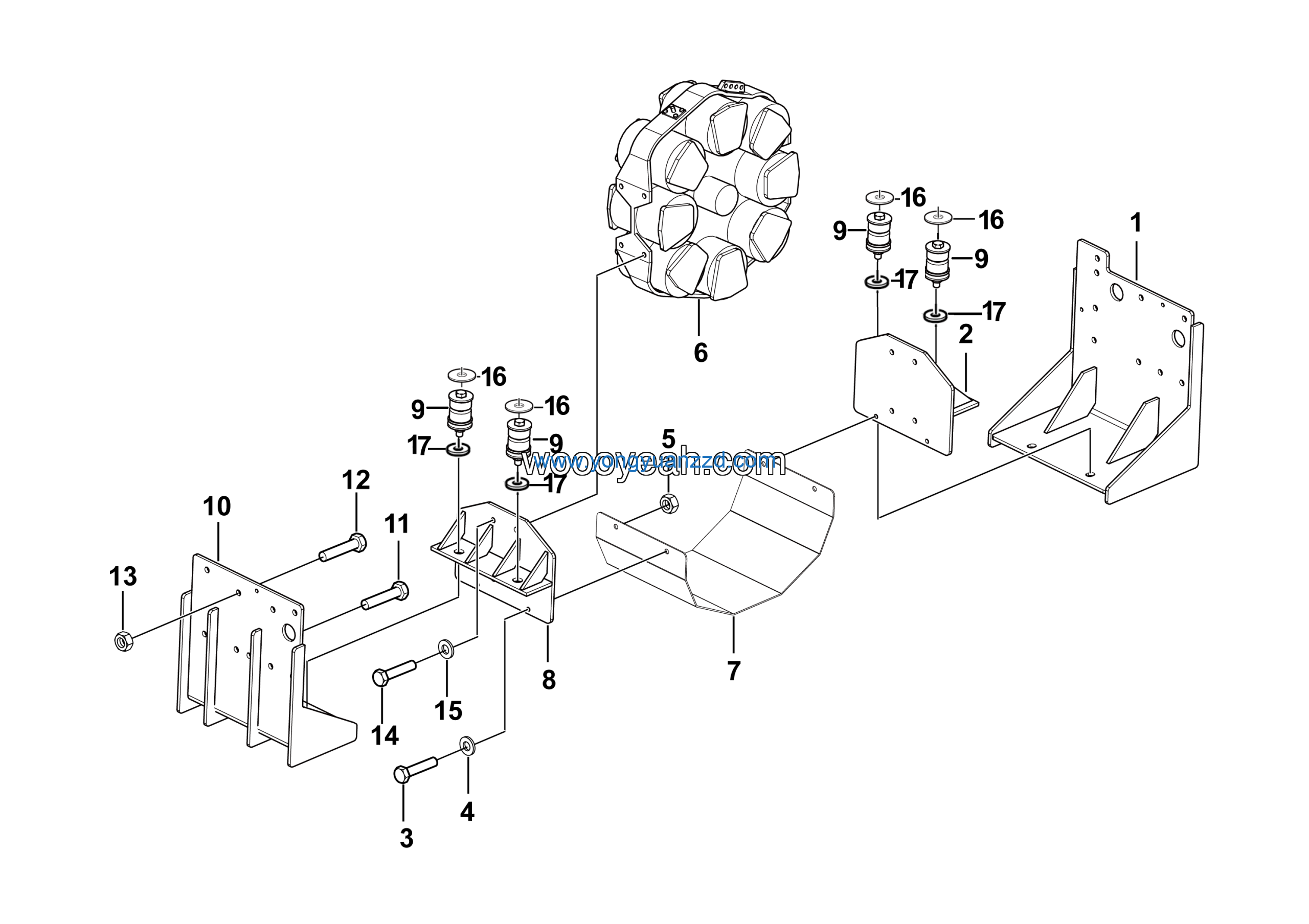

LGMG Off-Highway Dump Truck 2022 – Retarder mounting assy – J0700-2737010421
Category: 2022 > Off-Highway Dump Truck > MT86H- > M086HWB91-1
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Plate | 27370104251 | 1 |
| 2 | Bolt GB5783-M16*50EpZn-8.8 | 4011000269 | 7 |
| 3 | Bolt GB5783-M16*60EpZn-8.8 | 4011000594 | 4 |
| 4 | Nut GB6185.1-M16EpZn-8 | 4013010122 | 11 |
| 5 | Bolt GB5786-M18*1.5*35EpZn-10.9 | 4011010842 | 8 |
| 6 | Washer GB93-18-65Mn | 4015000029 | 8 |
| 7 | Damper plate | 27050103882 | 6 |
| 8 | Washer GB96.1-16EpZn-300HV | 4015000279 | 6 |
| 9 | Leftsupport | 27370104241 | 1 |
| 10 | Left support | 27370104221 | 1 |
| 11 | Bolt GB5783-M14*40EpZn-8.8 | 4011000814 | 4 |
| 12 | Washer GB97.1-14EpZn-300HV | 4015000177 | 4 |
| 13 | Nut GB6185.1-M14EpZn-8 | 4013010121 | 4 |
| 14 | Electromagnetic retarder | 4110702567 | 1 |
| 15 | Right mudguard | 27370101701 | 1 |
| 16 | Rightsupport | 27370104231 | 1 |
| 17 | Rubber shock pad assy | 4110705301 | 6 |
