LGMG Off-Highway Dump Truck 2022 – Seat installation assy – L1900-2719010194.S1A
Category: 2022 > Off-Highway Dump Truck > MTE108 > C1080W3A0M201

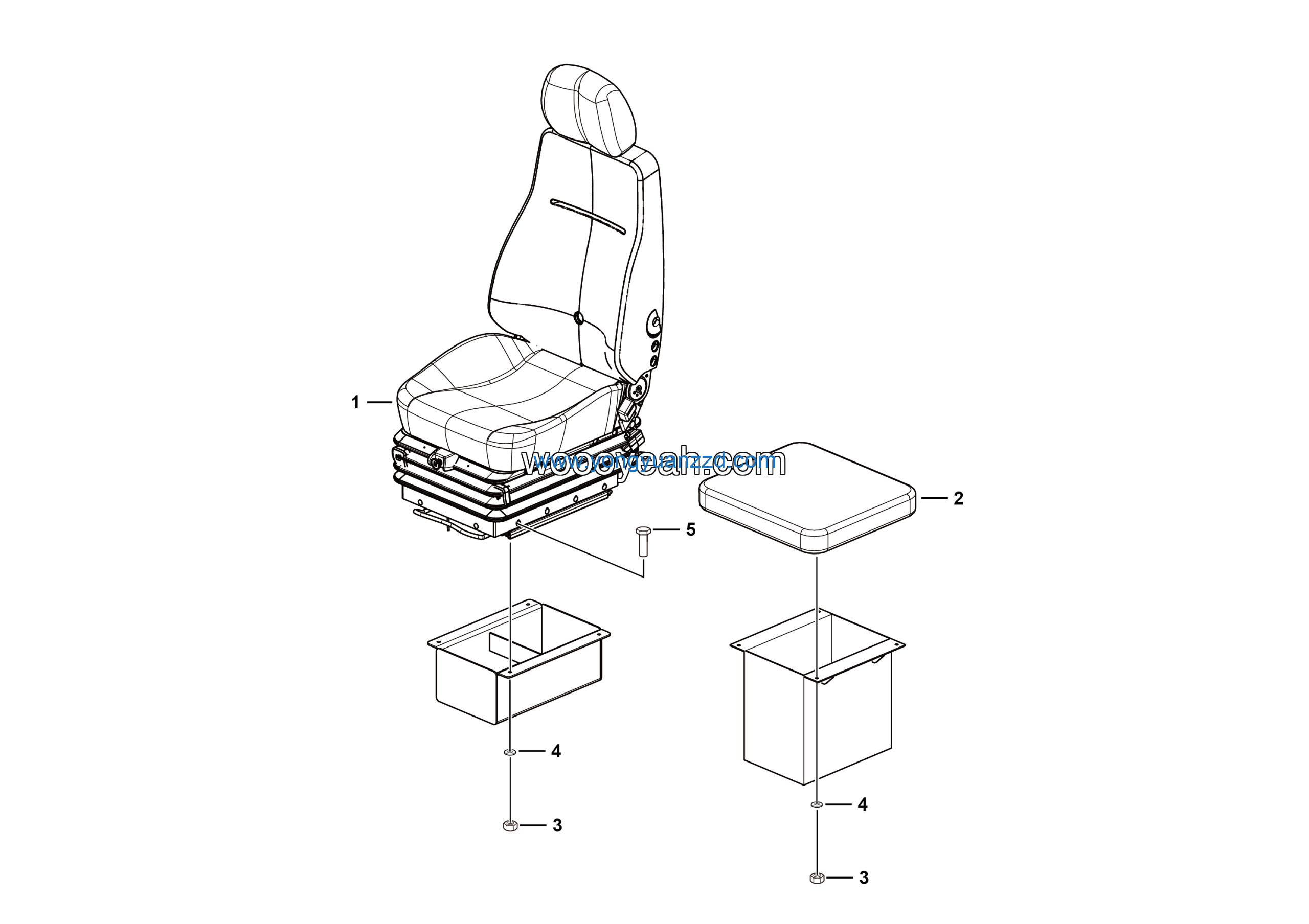

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Seat assy | 4190003462 | 1 |
| 2 | Deputy seat assembly | 27190101281 | 1 |
| 3 | Nut GB6170-M8EpZn-8 | 4013000033 | 8 |
| 4 | Washer GB97.1-8EpZn-300HV | 4015000072 | 8 |
| 5 | Screw GB70.1-M8*20EpZn-8.8 | 4014000211 | 4 |
