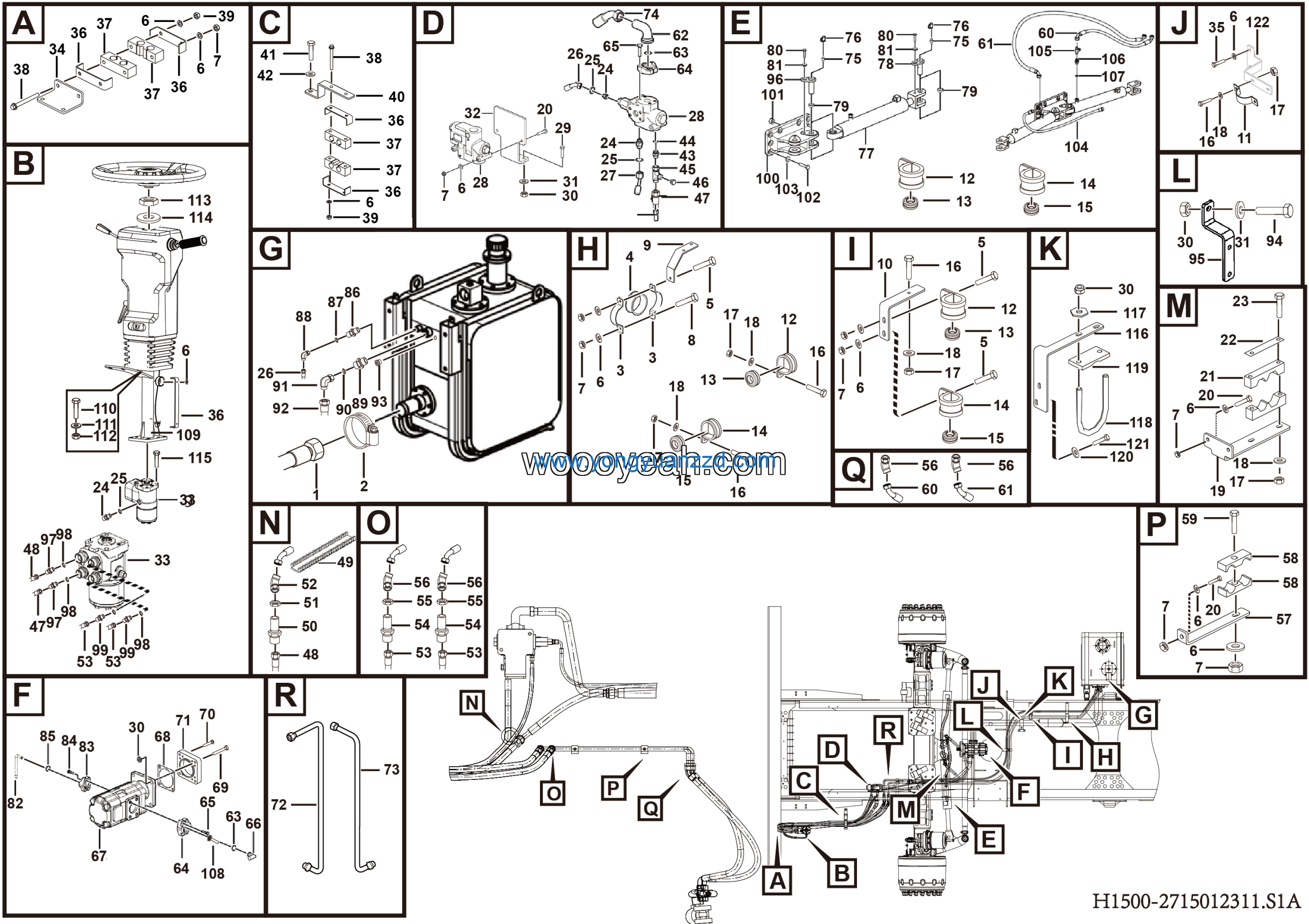

LGMG Off-Highway Dump Truck 2022 – Steering assy – H1500-2715012311.S1A
Category: 2022 > Off-Highway Dump Truck > MT106H > M106HW3A2A001
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Steering cylinder base | 27150110001 | 1 |
| 2 | Shaft | 27150106671 | 1 |
| 3 | Bolt GB5783-M16*45EpZn-10.9 | 4011000564 | 8 |
| 4 | Washer 16 | 27150105312 | 8 |
| 5 | Hose LGB127-006075 | 4041000699 | 2 |
| 6 | Tee CC-22 | 4190001347 | 2 |
| 7 | Straight joint LGB155-01822 | 4041000822 | 2 |
| 8 | O-ring GB3452.1-19.0*2.65G | 4030000280 | 2 |
| 9 | Flange joint | 27160111661 | 1 |
| 10 | Steering column assembly | 27150119341 | 1 |
| 11 | Bracket | 27160125751 | 1 |
| 12 | Bolt GB5783-M8*30EpZn-8.8 | 4011000107 | 2 |
| 13 | Washer GB96.1-8EpZn-300HV | 4015000256 | 2 |
| 14 | Nut GB6170-M8EpZn-8 | 4013000033 | 2 |
| 15 | Nut GB6173-M22*1.5EpZn-05 | 4013000152 | 1 |
| 16 | Washer GB97.1-22EpZn-300HV | 4015000184 | 1 |
| 17 | Bolt GB16674.1-M10*25EpZn-8.8 | 4011000474 | 4 |
| 18 | Oil suction pipe bracket | 27150122181 | 1 |
| 19 | Washer GB97.1-12-300HV | 4015000313 | 2 |
| 20 | U bolt | 27160121841 | 1 |
| 21 | Rubber pad | 27150122211 | 1 |
| 22 | Plate | 27150117881 | 1 |
| 23 | Washer GB96.1-10EpZn-300HV | 4015000197 | 2 |
| 24 | Bolt GB5783-M10*40EpZn-10.9 | 4011000578 | 2 |
| 25 | Bracket | 27160125731 | 1 |
| 26 | Pipe clamp LGB167-0426 | 4041001169 | 5 |
| 27 | Cushion sleeve LGB123-0426 | 4041001484 | 5 |
| 28 | Pipe clamp LGB167-0116 | 4041001132 | 5 |
| 29 | Cushion sleeve LGB123-0116 | 4041001252 | 5 |
| 30 | Bolt GB5783-M8*30EpZn-8.8 | 4011000107 | 3 |
| 31 | Nut GB6170-M8EpZn-8 | 4013000033 | 5 |
| 32 | Washer GB97.1-8EpZn-300HV | 4015000072 | 5 |
| 33 | Plate | 27150117922 | 1 |
| 34 | Suction hose | 27160125761 | 1 |
| 35 | Bolt GB5783-M10*60EpZn-8.8 | 4011010653 | 6 |
| 36 | Plate | 27150117931 | 2 |
| 37 | Plate | 27150117941 | 1 |
| 38 | Bolt GB5782-M8*95EpZn-8.8 | 4011000536 | 2 |
| 39 | Straight joint LGB120-01412 | 4041000131 | 3 |
| 40 | O-ring LGB168-10924 | 4041000784 | 3 |
| 41 | Hose LGB165-003390 | 4041010951 | 1 |
| 42 | HOSE LGB125-003245 | 4041001434 | 1 |
| 43 | Priority valve VLH-240 | 4120708738 | 1 |
| 44 | Bolt GB5782-M12*110EpZn-8.8 | 4011000262 | 2 |
| 45 | Hose clamp JB8870-D90 | 4017000013 | 4 |
| 46 | Nut GB6170-M12EpZn-8 | 4013000011 | 11 |
| 47 | Washer GB97.1-12EpZn-300HV | 4015000168 | 3 |
| 48 | Plate | 27150116171 | 1 |
| 49 | Steering gear Xcel80-800 | 4120704271 | 1 |
| 50 | Plate | 27150116641 | 1 |
| 51 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 7 |
| 52 | Cover plate | 27150110571 | 4 |
| 53 | Block | 27150108321 | 4 |
| 54 | Bolt GB16674.1-M10*85EpZn-8.8 | 4011000136 | 4 |
| 55 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 8 |
| 56 | Clamp | 27150112191 | 2 |
| 57 | PLATE | 27150114641 | 1 |
| 58 | Bolt GB5783-M16*35EpZn-8.8 | 4011000095 | 1 |
| 59 | Washer GB97.1-16EpZn-300HV | 4015000181 | 1 |
| 60 | Straight joint 33-26 | 27150109941 | 1 |
| 61 | O-ring LGB168-12931 | 4041000765 | 1 |
| 62 | Nipple | 27150108001 | 1 |
| 63 | Plug 4BN-04WD | 4190001419 | 1 |
| 64 | Hose LGB129-010210 | 4041010236 | 1 |
| 65 | Hose LGB166-010190 | 4041010309 | 1 |
| 66 | String casing | 27140105021 | 1 |
| 67 | Cushion | 27160108711 | 2 |
| 68 | Clapboard joint m26 | 27150116661 | 1 |
| 69 | Nut | 27150103221 | 1 |
| 70 | Combination joint LGB143-12616 | 4041001417 | 1 |
| 71 | Hose LGB129-006198 | 4041010595 | 2 |
| 72 | Bulkhead joint M22 | 27150116651 | 2 |
| 73 | NUT | 27150102951 | 2 |
| 74 | Combination joint LGB143-12213 | 4041001218 | 4 |
| 75 | Bracket | 27150109041 | 2 |
| 76 | Hold-down block | 27150106471 | 4 |
| 77 | Bolt GB5783-M10*50EpZn-8.8 | 4011000489 | 2 |
| 78 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 4 |
| 79 | Hose LGB128-006102 | 4041010404 | 1 |
| 80 | Hose LGB128-006074 | 4041010405 | 1 |
| 81 | Flange fittings | 27150109871 | 2 |
| 82 | O-ring GB3452.1-37.5*3.55G | 4030000029 | 2 |
| 83 | Split flange LGB117-312551 | 4041000027 | 2 |
| 84 | Bolt GB16674.1-M10*30EpZn-8.8 | 4011000475 | 8 |
| 85 | Combination joint LGB143-13625 | 4041001485 | 1 |
| 86 | Gear pump JHP2080/2040R04 | 4120704648 | 1 |
| 87 | Washera | 27150112891 | 1 |
| 88 | Bolt GB5782-M12*70EpZn-10.9 | 4011000595 | 4 |
| 89 | Washer GB97.1-10EpZn-300HV | 4015000162 | 20 |
| 90 | Screw GB70.1-M8*25EpZn-12.9 | 4014010141 | 8 |
| 91 | CARGO TANK ASSEMBLY | 27150113721 | 1 |
| 92 | Left steering pipe | 27150113781 | 1 |
| 93 | Right steering pipe | 27150109101 | 1 |
| 94 | Hose-1250 | 27160116101 | 1 |
| 95 | Grease nipple JB7940.1-M10*1 | 4030000065 | 4 |
| 96 | Butter nozzle cap JXHF-00006 | 4120000015 | 4 |
| 97 | Steering cylinder HSGL-80*45*370-760 | 4120706513 | 2 |
| 98 | Axis | 27150110951 | 2 |
| 99 | Sleeve | 27150109951 | 4 |
| 100 | Nut GB6170-M10EpZn-8 | 4013000007 | 16 |
| 101 | Bolt GB5783-M12*25EpZn-8.8 | 4011000197 | 4 |
| 102 | Washer GB1230-12EpZn-45 | 4015000288 | 4 |
| 103 | Pipe | 27150117971 | 1 |
| 104 | Split flange LGB117-320760 | 4041000009 | 1 |
| 105 | Bolt GB16674.1-M12*35EpZn-8.8 | 4011000477 | 4 |
| 106 | O-ring GB3452.1-56.0*3.55G | 4030000133 | 1 |
| 107 | Straight joint LGB120-01414 | 4041000133 | 1 |
| 108 | O-ring LGB168-11124 | 4041000767 | 1 |
| 109 | Combination joint LGB143-01406 | 4041001047 | 1 |
| 110 | Straight joint LGB120-02628 | 4041000796 | 1 |
| 111 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 1 |
| 112 | O-ring LGB168-12331 | 4041000779 | 1 |
| 113 | Combination joint LGB143-02616 | 4041001006 | 1 |
| 114 | Hose LGB165-010400 | 4041010515 | 1 |
| 115 | Plug 4MN-22WD | 4120002004 | 1 |
| 116 | Bolt GB5783-M12*40EpZn-8.8 | 4011000091 | 1 |
| 117 | Plate | 27150118001 | 1 |
| 118 | Axis | 27150109901 | 2 |
| 119 | Straight joint LGB120-02620 | 4041000564 | 2 |
| 120 | O-ring LGB168-11724 | 4041000783 | 4 |
| 121 | Straight joint LGB120-02220 | 4041000132 | 2 |
