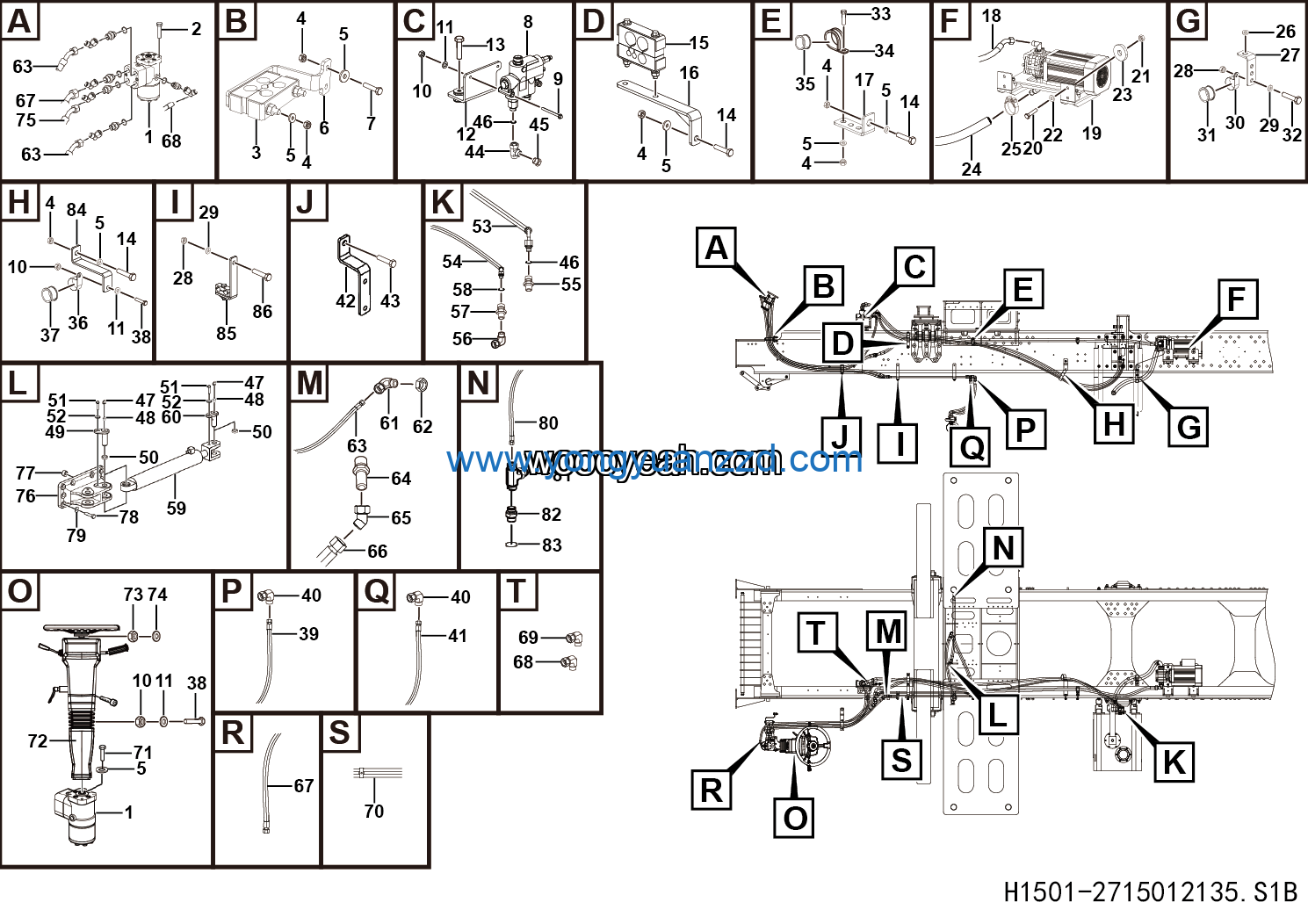

LGMG Off-Highway Dump Truck 2022 – Steering assy – H1501-2715012135.S1B
Category: 2022 > Off-Highway Dump Truck > MT86H- > M086HE0A2A101
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6170-M8EpZn-8 | 4013000033 | 8 |
| 2 | Washer GB96.1-8EpZn-300HV | 4015000256 | 8 |
| 3 | Assembly | 27150120851 | 1 |
| 4 | Bolt GB5782-M10*90EpZn-8.8 | 4011000053 | 2 |
| 5 | Bolt GB5782-M10*50EpZn-8.8 | 4011000048 | 4 |
| 6 | Assembly | 27150120881 | 1 |
| 7 | Plate | 27150116781 | 1 |
| 8 | Bracket | 27150120221 | 2 |
| 9 | Hose LGB129-012355 | 4041010929 | 1 |
| 10 | Assembly | 27150120871 | 1 |
| 11 | Steering gear assembly | 27150119581 | 1 |
| 12 | Bolt GB5782-M16*65flZnyc-12.9-480 | 4011010556 | 4 |
| 13 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 4 |
| 14 | Washer GB97.1-16flZnyc-300HV-480 | 4015010287 | 4 |
| 15 | Plate | 27150120801 | 2 |
| 16 | Hose | 27150121361 | 1 |
| 17 | T-hoop φ45 | 4120709367 | 4 |
| 18 | Washer GB96.1-10EpZn-300HV | 4015000197 | 1 |
| 19 | Plate | 27150120821 | 1 |
| 20 | Nut GB6170-M12EpZn-8 | 4013000011 | 3 |
| 21 | Washer GB97.1-12EpZn-300HV | 4015000168 | 3 |
| 22 | Bolt GB16674.1-M10*25EpZn-8.8 | 4011000474 | 4 |
| 23 | Pipe clamp LGB167-0952 | 4041000800 | 1 |
| 24 | Cushion sleeve LGB123-0952 | 4041010216 | 1 |
| 25 | Bolt GB5783-M12*30EpZn-8.8 | 4011000089 | 1 |
| 26 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 2 |
| 27 | Pipe clamp LGB167-0530 | 4041001269 | 2 |
| 28 | Cushion sleeve LGB123-0530 | 4041001392 | 2 |
| 29 | Pipe clamp LGB167-0426 | 4041001169 | 2 |
| 30 | Cushion sleeve LGB123-0426 | 4041001484 | 2 |
| 31 | Bolt GB5783-M8*30EpZn-8.8 | 4011000107 | 6 |
| 32 | Hose LGB128-006067 | 4041000700 | 1 |
| 33 | Pipe rubber clamp assy | 27150120831 | 2 |
| 34 | Combination joint LGB143-02213 | 4041001156 | 2 |
| 35 | Hose LGB128-006095 | 4041000929 | 1 |
| 36 | PLATE | 27150114641 | 1 |
| 37 | Bolt GB5783-M16*30EpZn-8.8 | 4011000094 | 1 |
| 38 | Pressure test tee | 27150108791 | 1 |
| 39 | Plug LGB135-11019 | 4041000772 | 1 |
| 40 | O-ring LGB168-11124 | 4041000767 | 2 |
| 41 | Grease nipple JB7940.1-M10*1 | 4030000065 | 4 |
| 42 | Butter nozzle cap JXHF-00006 | 4120000015 | 4 |
| 43 | Axis | 27150109901 | 2 |
| 44 | Nut GB6170-M10EpZn-8 | 4013000007 | 18 |
| 45 | Sleeve | 27150109951 | 4 |
| 46 | Bolt GB5783-M12*25EpZn-8.8 | 4011000197 | 4 |
| 47 | Washer GB1230-12EpZn-45 | 4015000288 | 4 |
| 48 | Hose LGB165-010315 | 4041010537 | 1 |
| 49 | Hose LGB165-003338 | 4041010438 | 1 |
| 50 | Straight joint LGB120-01414 | 4041000133 | 1 |
| 51 | Combination joint LGB143-02616 | 4041001006 | 1 |
| 52 | Straight joint LGB155-02726 | 4041001040 | 1 |
| 53 | O-ring GB3452.1-28.0*2.65G | 4030000090 | 1 |
| 54 | Steering cylinder HSGL-80*45*400-750 | 4120001982 | 2 |
| 55 | Washer GB97.1-10EpZn-300HV | 4015000162 | 22 |
| 56 | Axis | 27150110951 | 2 |
| 57 | Combination joint LGB143-12213 | 4041001218 | 2 |
| 58 | NUT | 27150102951 | 1 |
| 59 | Hose LGB129-006210 | 4041010276 | 2 |
| 60 | Clapboard joint m26 | 27150116661 | 1 |
| 61 | Combination joint LGB143-12616 | 4041001417 | 1 |
| 62 | Hose LGB166-010190 | 4041010309 | 1 |
| 63 | Hose LGB128-003260 | 4041010931 | 1 |
| 64 | Combination joint LGB143-01406 | 4041001047 | 2 |
| 65 | Combination joint LGB143-03019 | 4041001262 | 1 |
| 66 | Plate | 27150120791 | 1 |
| 67 | Welding | 27150121381 | 2 |
| 68 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 4 |
| 69 | Steering column assembly | 27150119341 | 1 |
| 70 | Nut GB6173-M22*1.5EpZn-05 | 4013000152 | 1 |
| 71 | Washer GB97.1-22EpZn-300HV | 4015000184 | 1 |
| 72 | Hose LGB129-006220 | 4041010234 | 1 |
| 73 | Steering cylinder base | 27150110001 | 1 |
| 74 | Shaft | 27150106671 | 1 |
| 75 | Bolt GB5783-M16*45flZnyc-12.9-480 | 4011010621 | 8 |
| 76 | Washer 16 | 27150105312 | 8 |
| 77 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 2 |
| 78 | Hose LGB127-006075 | 4041000699 | 2 |
| 79 | Tee CC-22 | 4190001347 | 2 |
| 80 | Straight joint LGB155-01822 | 4041000822 | 2 |
| 81 | O-ring GB3452.1-19.0*2.65G | 4030000280 | 2 |
| 82 | Bracket | 27150112142 | 1 |
| 83 | Assembly | 27150121421 | 2 |
| 84 | Bolt GB5782-M12*55EpZn-8.8 | 4011000186 | 2 |
| 85 | Assembly | 27150120841 | 1 |
| 86 | Bolt GB16674.1-M8*90EpZn-8.8 | 4011000493 | 2 |
