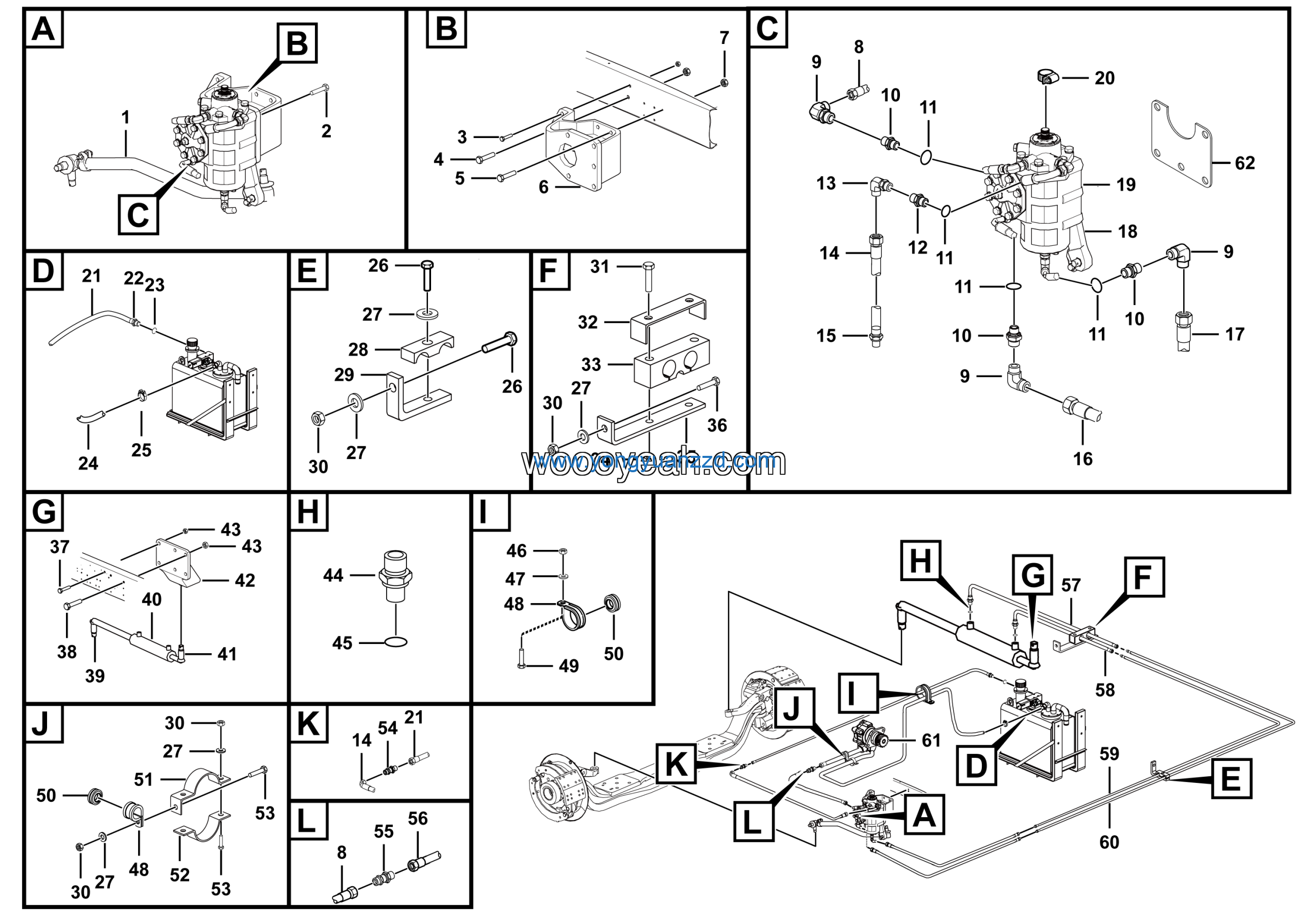

LGMG Off-Highway Dump Truck 2022 – Steering assy – H1501-2715012470
Category: 2022 > Off-Highway Dump Truck > MT50 > M0500WE11
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Straight joint LGB155-01822 | 4041000822 | 3 |
| 2 | O-ring GB3452.1-19.0*2.65G | 4030000280 | 4 |
| 3 | Straight joint | 27150102981 | 1 |
| 4 | Combination joint LGB143-02616 | 4041001006 | 2 |
| 5 | Hose LGB165-010088 | 4041010125 | 1 |
| 6 | Combination joint LGB143-12616 | 4041001417 | 1 |
| 7 | Hose LGB128-006085 | 4041000525 | 1 |
| 8 | Hose LGB129-006063 | 4041010122 | 1 |
| 9 | Pitman arm | 4120000976 | 1 |
| 10 | Steering gear ZJ120-201 | 4120706357 | 1 |
| 11 | PULL ROD ASSEMBLY | 27150107891 | 1 |
| 12 | CLAMP JB8870-D110 | 4017000012 | 1 |
| 13 | Hose LGB165-010240 | 4041010153 | 1 |
| 14 | Straight joint LGB120-02622 | 4041000187 | 1 |
| 15 | O-ring LGB168-11924 | 4041000771 | 1 |
| 16 | hose | 27150103671 | 1 |
| 17 | No longer used | 4030100020 | 2 |
| 18 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 4 |
| 19 | Washer GB97.1-10EpZn-300HV | 4015000162 | 8 |
| 20 | Hold-down block | 27150106471 | 2 |
| 21 | BEND PLATE | 27150106461 | 2 |
| 22 | Bolt 5783-M20*1.5*40flZnyc-12.9-480 | 4011011452 | 5 |
| 23 | Nut GB6170-M10EpZn-8 | 4013000007 | 6 |
| 24 | Bolt GB16674.1-M10*55EpZn-8.8 | 4011000473 | 2 |
| 25 | Plate | 27150108421 | 1 |
| 26 | Block | 27150108321 | 1 |
| 27 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 2 |
| 28 | Plate | 27150109761 | 1 |
| 29 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 1 |
| 30 | Bolt GB5782-M14*50EpZn-10.9 | 4011000988 | 2 |
| 31 | Bolt GB5782-M14*60EpZn-10.9 | 4011000539 | 4 |
| 32 | RH-Handed ball head | 4120000927 | 1 |
| 33 | Bolt GB5782-M16*80EpZn-10.9 | 4011000438 | 1 |
| 34 | Steering cylinder HSGL-50*30*260-485 | 4120001452 | 1 |
| 35 | LH-Handed ball head | 4120000926 | 1 |
| 36 | Bracket | 27150106341 | 1 |
| 37 | Nut GB6185.1-M14EpZn-10 | 4013010135 | 6 |
| 38 | JOINT LGB120-02218 | 4041000095 | 2 |
| 39 | O-ring LGB168-11524 | 4041000768 | 2 |
| 40 | Nut GB6170-M12EpZn-8 | 4013000011 | 2 |
| 41 | Washer GB97.1-12EpZn-300HV | 4015000168 | 2 |
| 42 | No longer used | 4041010211 | 3 |
| 43 | Bolt GB5783-M12*40EpZn-8.8 | 4011000091 | 2 |
| 44 | Bolt GB5783-M16*65EpZn-10.9 | 4011000665 | 1 |
| 45 | CUSHION SLEEVE LGB123-0846 | 4041001636 | 3 |
| 46 | Plate | 27150109741 | 1 |
| 47 | Plate | 27150109751 | 1 |
| 48 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 3 |
| 49 | Bulkhead joint SV15LOMDA3C | 4120000618 | 1 |
| 50 | Bulkhead joint SV18LOMDA3C | 4190001083 | 1 |
| 51 | Hose LGB129-006085 | 4041010110 | 1 |
| 52 | Hose LGB129-006120 | 4041010115 | 1 |
| 53 | Hose LGB129-006090 | 4041010116 | 1 |
| 54 | STEERING STEEL PIPE B | 27150106441 | 1 |
| 55 | Bolt GB5783-M16*55EpZn-10.9 | 4011000562 | 3 |
| 56 | STEERING STEEL PIPE A | 27150106431 | 1 |
| 57 | Pump assembly | 27150106511 | 1 |
| 58 | Plate | 27150119941 | 1 |
| 59 | STEERING GEAR SUPPORT | 27150106331 | 1 |
| 60 | Nut GB6185.1-M16EpZn-10 | 4013010136 | 5 |
| 61 | Hose LGB129-006070 | 4041010124 | 1 |
| 62 | Combination joint LGB143-02213 | 4041001156 | 4 |
