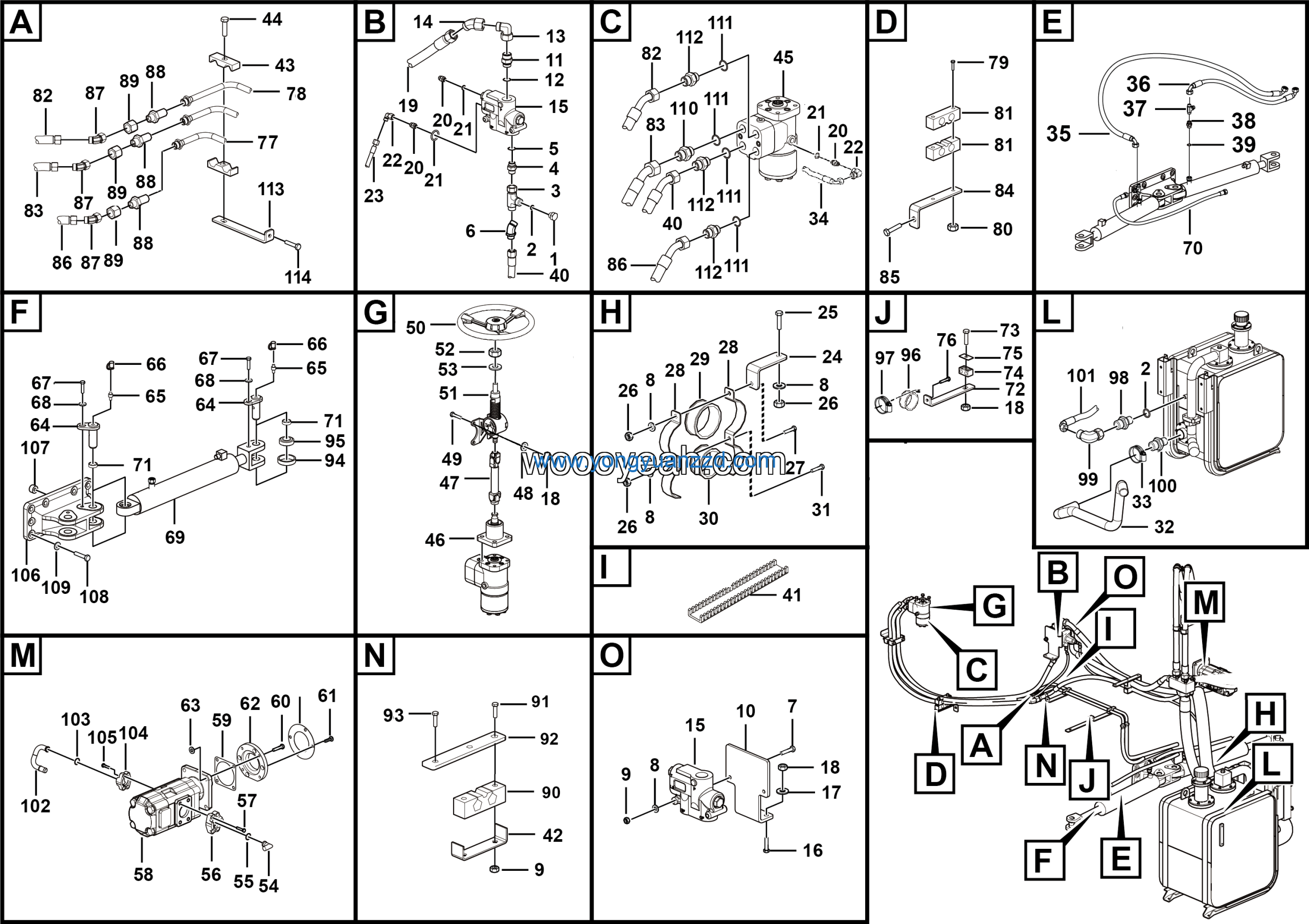

LGMG Off-Highway Dump Truck 2022 – Steering assy – H1502-2715011229
Category: 2022 > Off-Highway Dump Truck > MT60 > M060DWA07
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Straight joint LGB120-01414 | 4041000133 | 1 |
| 2 | Hose LGB165-003270 | 4041010319 | 1 |
| 3 | Intake oil tube of pump | 27150111431 | 1 |
| 4 | O-ring GB3452.1-56.0*3.55G | 4030000133 | 1 |
| 5 | Split flange LGB117-320760 | 4041000009 | 1 |
| 6 | Bolt GB16674.1-M12*35EpZn-8.8 | 4011000477 | 4 |
| 7 | Bracket | 27150108851 | 1 |
| 8 | Shaft | 27150106671 | 1 |
| 9 | Bolt GB5783-M16*45EpZn-10.9 | 4011000564 | 8 |
| 10 | Washer 16 | 27150105312 | 8 |
| 11 | Fixing plate | 27150108772 | 1 |
| 12 | Straight joint LGB120-02620 | 4041000564 | 1 |
| 13 | O-ring LGB168-11724 | 4041000783 | 4 |
| 14 | Straight joint LGB120-02220 | 4041000132 | 3 |
| 15 | LEFT REINFORCE CARLING | 27150112961 | 1 |
| 16 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 2 |
| 17 | Straight joint LGB120-03028 | 4041000188 | 1 |
| 18 | O-ring LGB168-12331 | 4041000779 | 2 |
| 19 | Combination joint LGB143-03019 | 4041001262 | 1 |
| 20 | Combination joint LGB143-13019 | 4041001650 | 1 |
| 21 | Priority valve VLE-150 | 4120000720 | 1 |
| 22 | Bolt GB16674.1-M8*90EpZn-8.8 | 4011000493 | 2 |
| 23 | Washer GB97.1-8EpZn-300HV | 4015000072 | 2 |
| 24 | Nut GB6170-M8EpZn-8 | 4013000033 | 6 |
| 25 | Hose -1560 | 27150112241 | 1 |
| 26 | Plug LGB135-11019 | 4041000772 | 1 |
| 27 | Straight joint LGB120-01412 | 4041000131 | 3 |
| 28 | O-ring LGB168-10924 | 4041000784 | 3 |
| 29 | Combination joint LGB143-01406 | 4041001047 | 2 |
| 30 | Hose LGB125-003225 | 4041001450 | 1 |
| 31 | Bracket | 27150112282 | 1 |
| 32 | Bolt GB5782-M10*40EpZn-8.8 | 4011000504 | 1 |
| 33 | Nut GB6170-M10EpZn-8 | 4013000007 | 7 |
| 34 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 1 |
| 35 | Clamp | 27150111951 | 2 |
| 36 | Cushion | 27160108711 | 1 |
| 37 | O-ring LGB168-11124 | 4041000767 | 2 |
| 38 | Cushion sleeve LGB123-0952 | 4041010216 | 1 |
| 39 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 1 |
| 40 | Hose | 27160111371 | 1 |
| 41 | Hose clamp JB8870-D90 | 4017000013 | 4 |
| 42 | Hose LGB165-010275 | 4041010371 | 1 |
| 43 | Hose LGB128-006054 | 4041010323 | 1 |
| 44 | Hose LGB128-006081 | 4041010322 | 1 |
| 45 | Tee CC-22 | 4190001347 | 2 |
| 46 | Straight joint LGB155-01822 | 4041000822 | 2 |
| 47 | O-ring GB3452.1-19.0*2.65G | 4030000280 | 2 |
| 48 | Pressure test tee | 27150108791 | 1 |
| 49 | Hose LGB129-006187 | 4041010379 | 1 |
| 50 | String casing | 27140105021 | 1 |
| 51 | Cover plate | 27150110571 | 5 |
| 52 | Block | 27150108321 | 4 |
| 53 | Bolt GB16674.1-M10*85EpZn-8.8 | 4011000136 | 4 |
| 54 | Steering gear | 4120000719 | 1 |
| 55 | Bracket assy | 4120001109 | 1 |
| 56 | Steering transmission shaft | 4120001108 | 1 |
| 57 | Washer GB96.1-8EpZn-300HV | 4015000256 | 4 |
| 58 | Bolt GB5783-M8*30EpZn-8.8 | 4011000107 | 4 |
| 59 | Straight joint LGB120-02222 | 4041000143 | 1 |
| 60 | Steering wheel 430 | 4120001247 | 1 |
| 61 | Directional column | 4120001388 | 1 |
| 62 | Nut GB6173-M22*1.5EpZn-05 | 4013000152 | 1 |
| 63 | Washer GB97.1-22EpZn-300HV | 4015000184 | 1 |
| 64 | Flange joint | 27150110651 | 1 |
| 65 | O-ring GB3452.1-32.5*3.55G | 4030000026 | 1 |
| 66 | Split flange LGB117-310491 | 4041000026 | 1 |
| 67 | Bolt GB16674.1-M10*30EpZn-8.8 | 4011000475 | 4 |
| 68 | Gear pump JHP2063/2040R01 | 4120002446 | 1 |
| 69 | Gasket | 29110000043 | 1 |
| 70 | O-ring LGB168-11924 | 4041000771 | 1 |
| 71 | Bolt GB5783-M12*35-10.9 | 4011010491 | 4 |
| 72 | Screw GB70.1-M8*25EpZn-12.9 | 4014010141 | 8 |
| 73 | CARGO TANK ASSEMBLY | 27150113721 | 1 |
| 74 | Washer GB97.1-12EpZn-300HV | 4015000168 | 9 |
| 75 | Axis | 27150108681 | 4 |
| 76 | Grease nipple JB7940.1-M10*1 | 4030000065 | 4 |
| 77 | No longer used | 4030000107 | 4 |
| 78 | Bolt GB5783-M12*25EpZn-8.8 | 4011000197 | 4 |
| 79 | Washer GB1230-12EpZn-45 | 4015000288 | 4 |
| 80 | Steering cylinder HSGL-63*40*400-710 | 4120703722 | 2 |
| 81 | Combination joint LGB143-12213 | 4041001218 | 3 |
| 82 | Hose LGB127-006075 | 4041000699 | 2 |
| 83 | Sleeve | 27150108221 | 4 |
| 84 | Bracket | 27150112261 | 1 |
| 85 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 5 |
| 86 | Hold-down block | 27150106471 | 2 |
| 87 | Block | 27150112231 | 1 |
| 88 | Bolt GB5782-M10*70EpZn-8.8 | 4011000051 | 1 |
| 89 | Tube | 27150108401 | 1 |
| 90 | STEEL PIPE | 27150106991 | 1 |
| 91 | Bolt GB5783-M16*55EpZn-8.8 | 4011000612 | 1 |
| 92 | Bolt GB5783-M10*50EpZn-8.8 | 4011000489 | 2 |
| 93 | Nut GB6185.1-M16EpZn-8 | 4013010122 | 3 |
| 94 | BLOCK | 27150102811 | 2 |
| 95 | Hose LGB129-006140 | 4041001677 | 1 |
| 96 | Hose LGB129-006125 | 4041010137 | 1 |
| 97 | Bracket | 27150109311 | 1 |
| 98 | Bolt GB5782-M16*50EpZn-8.8 | 4011000510 | 2 |
| 99 | Hose LGB166-010175 | 4041010200 | 1 |
| 100 | No longer used | 4041010222 | 1 |
| 101 | Bulkhead joint M26 | 27150109061 | 1 |
| 102 | Nut | 27150103221 | 1 |
| 103 | Washer GB97.1-10EpZn-300HV | 4015000162 | 15 |
| 104 | Rubber clip | 27150109611 | 1 |
| 105 | Bolt GB16674.1-M10*65EpZn-8.8 | 4011000230 | 2 |
| 106 | Plate | 27150111421 | 1 |
| 107 | Bolt GB5782-M10*45EpZn-8.8 | 4011000451 | 1 |
| 108 | Block | 27150111191 | 4 |
| 109 | Bearing GB9163-GE30ES | 4021000253 | 2 |
| 110 | Pipe clamp LGB167-0426 | 4041001169 | 1 |
| 111 | Cushion sleeve LGB123-0426 | 4041001484 | 1 |
| 112 | Straight joint LGB120-02628 | 4041000796 | 1 |
| 113 | Combination joint LGB143-02616 | 4041001006 | 1 |
| 114 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 10 |
