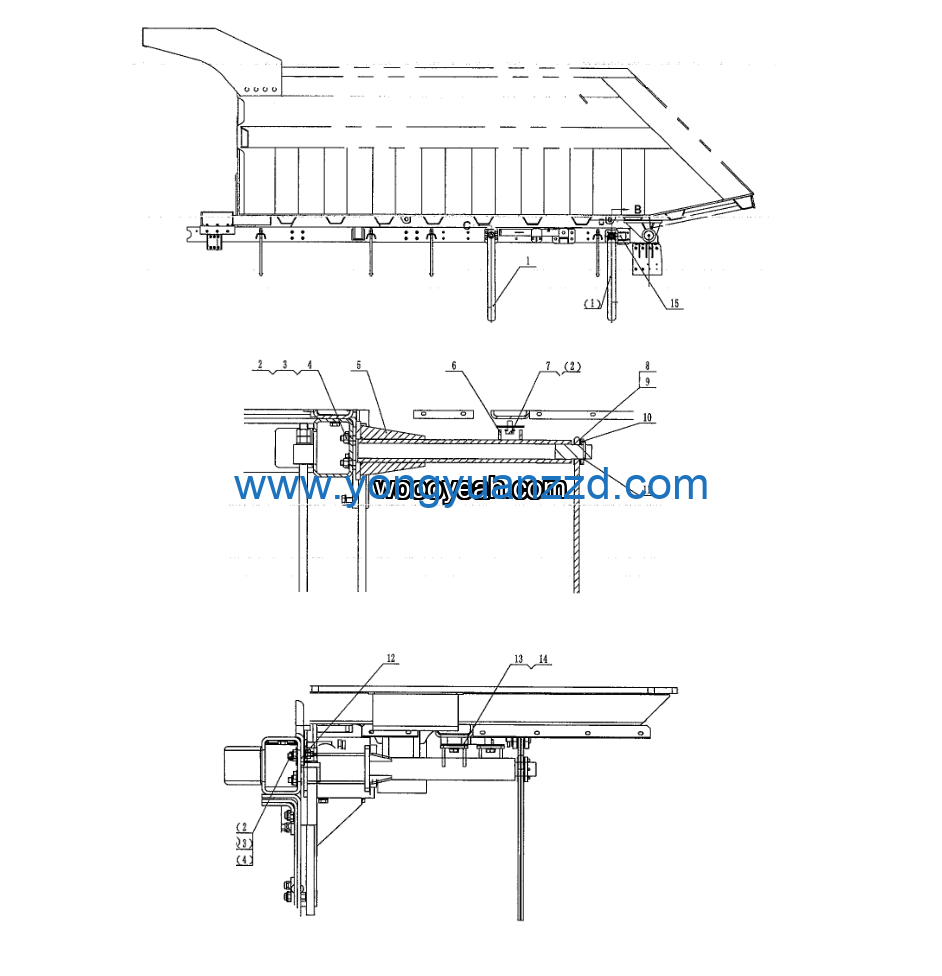

LGMG Off-Highway Dump Truck 2022 – Stone deflector assy – L1700-2717027799
Category: 2022 > Off-Highway Dump Truck > MT86H- > M086MWA31
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB97.1-42EpZn-300HV | 4015000311 | 1 |
| 2 | Pin GB91-6.3*63EpZn-Q235A | 4016000113 | 1 |
| 3 | Plate | 27170150311 | 1 |
| 4 | Plate | 27170177262 | 1 |
| 5 | Plate | 27170177252 | 1 |
| 6 | Plate | 27170278002 | 1 |
| 7 | Plate | 27170261331 | 1 |
| 8 | Washer GB97.1-16EpZn-300HV | 4015000181 | 1 |
| 9 | Bolt GB5782-M16*65EpZn-8.8 | 4011000459 | 1 |
| 10 | Nut GB6170-M16EpZn-8 | 4013000016 | 1 |
| 11 | Frame | 27170135263 | 1 |
| 12 | Plate | 27170177273 | 1 |
| 13 | Bolt GB5783-M16*30EpZn-8.8 | 4011000094 | 1 |
| 14 | Plate | 27170157931 | 1 |
| 15 | Plate | 27170157921 | 1 |
