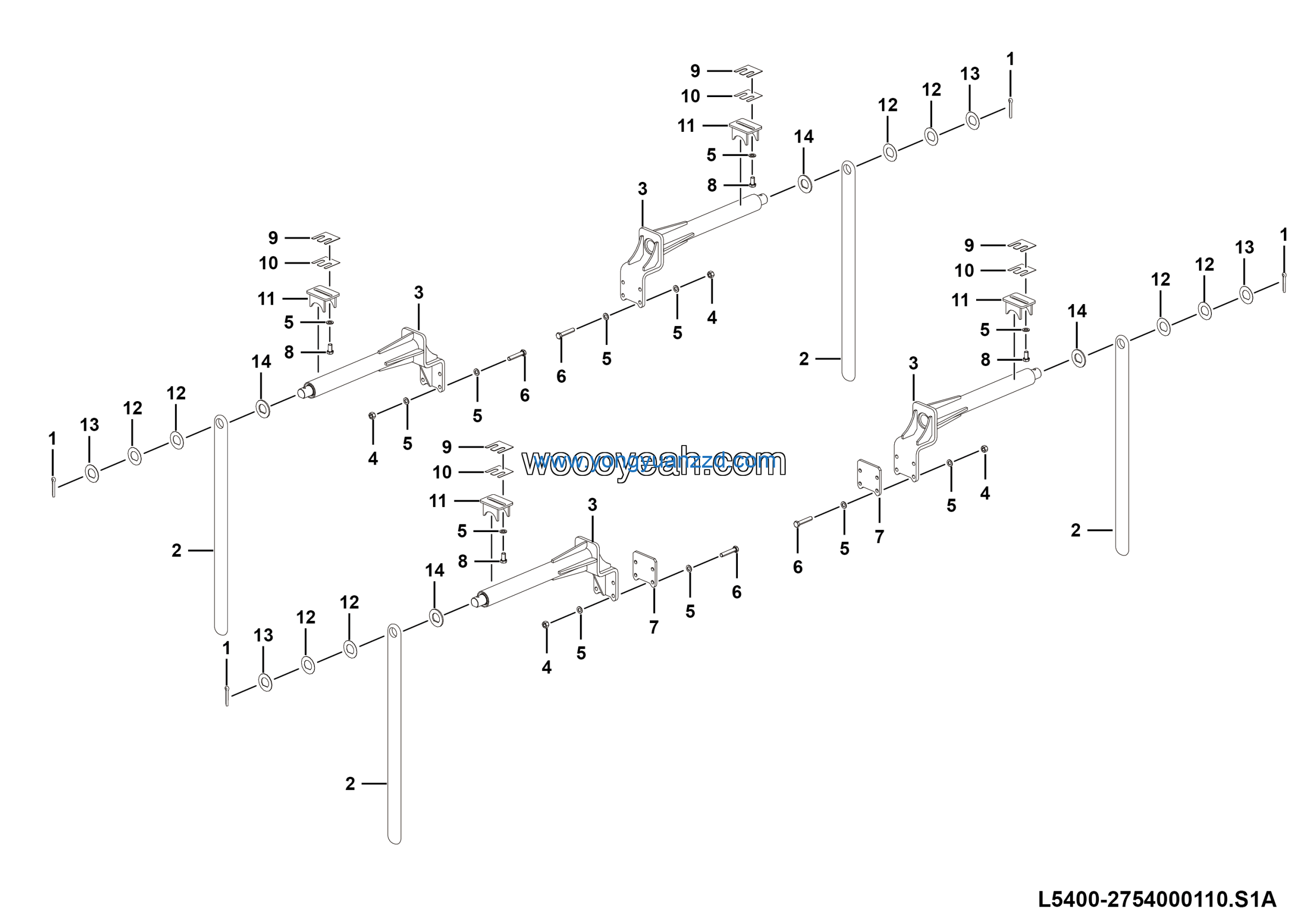

LGMG Off-Highway Dump Truck 2022 – Stone deflector assy – L5400-2754000110.S1A
Category: 2022 > Off-Highway Dump Truck > MT106H > M106HW3A2M003
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Plate | 27170177252 | 4 |
| 2 | Plate | 27170268121 | 4 |
| 3 | Plate | 27170305991 | 8 |
| 4 | Plate | 27170306001 | 4 |
| 5 | Plate | 27540000991 | 4 |
| 6 | Pin GB91-10*63EpZn-Q235B | 4016010269 | 4 |
| 7 | Plate | 27170261332 | 4 |
| 8 | Plate | 27540001111 | 4 |
| 9 | Nut GB6170-M16EpZn-8 | 4013000016 | 16 |
| 10 | Washer GB97.1-16EpZn-300HV | 4015000181 | 40 |
| 11 | Bolt GB5782-M16*80EpZn-8.8 | 4011000226 | 16 |
| 12 | Subpanel | 27170255042 | 2 |
| 13 | Bolt GB5783-M16*30EpZn-8.8 | 4011000094 | 8 |
| 14 | Plate | 27170177262 | 4 |
