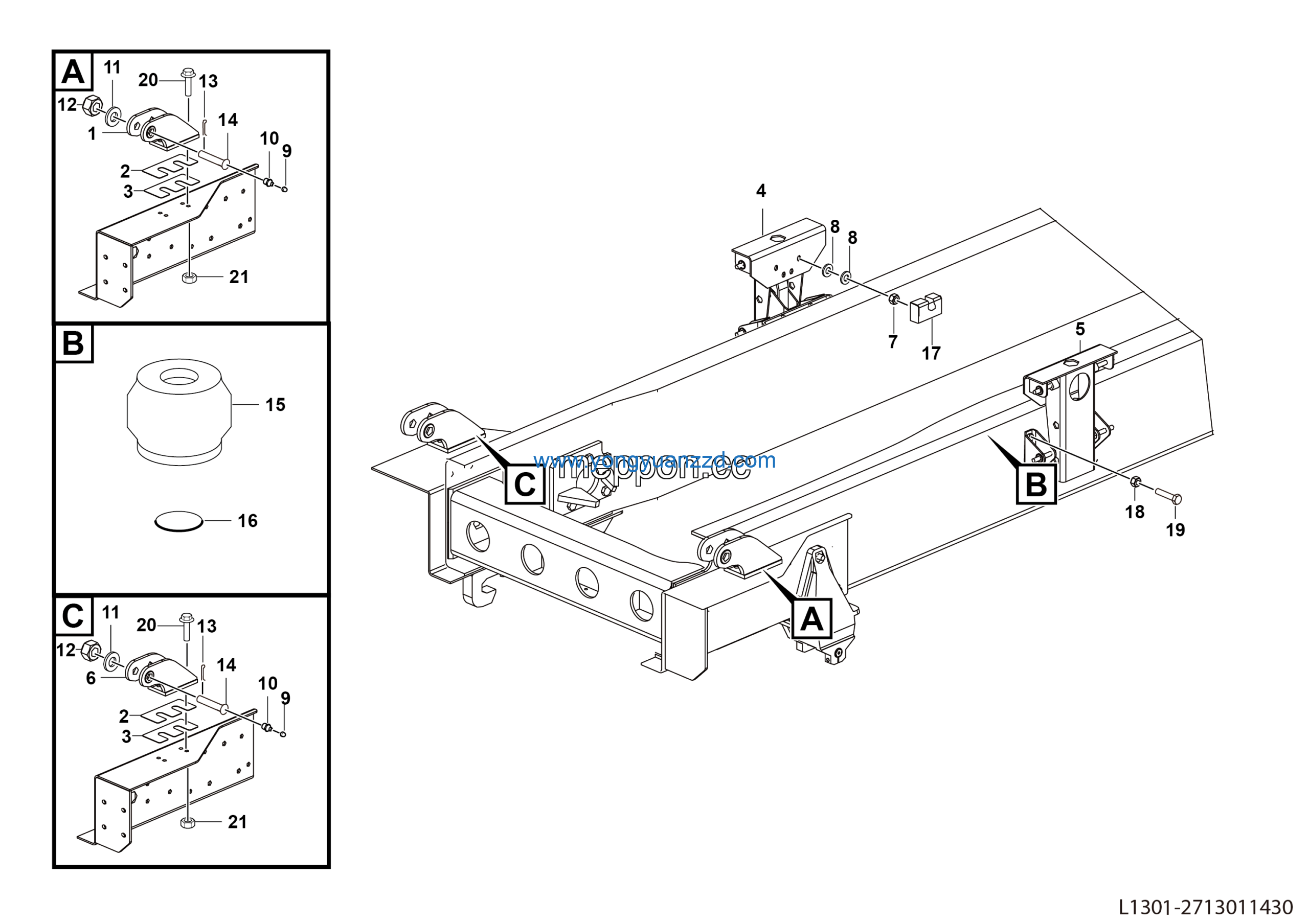

LGMG Off-Highway Dump Truck 2022 – Suspension assy – L1301-2713011430
Category: 2022 > Off-Highway Dump Truck > UT350 > M0500WA24
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Grease nipple JB7940.1-M8*1 | 4030000525 | 2 |
| 2 | Washer GB97.1-20EpZn-300HV | 4015000176 | 2 |
| 3 | Nut GB6179-M20*1.5-10 | 4013010003 | 2 |
| 4 | Pin GB91-4*45EpZn-Q235A | 4016000057 | 2 |
| 5 | Pin | 27130103521 | 2 |
| 6 | Shock absorber | 4190000306 | 2 |
| 7 | Snap ring GB894.1-70-65Mn | 4015010218 | 2 |
| 8 | Lock mechanism | 27130102351 | 2 |
| 9 | Nut GB6185.1-M14EpZn-8 | 4013010121 | 12 |
| 10 | Bolt GB5783-M14*45EpZn-8.8 | 4011000203 | 12 |
| 11 | Plate | 27130112071 | 1 |
| 12 | Bolt GB5782-M14*55EpZn-12.9 | 4011010488 | 8 |
| 13 | Nut GB6185.1-M14EpZn-12 | 4013010213 | 8 |
| 14 | Washer GB96.1-14EpZn-300HV | 4015000188 | 8 |
| 15 | Plate | 27130112151 | 2 |
| 16 | Plate | 27130112161 | 2 |
| 17 | Right rear suspension assembly of cab | 27130111881 | 1 |
| 18 | Left rear suspension assembly of cab | 27130111871 | 1 |
| 19 | Plate | 27130112101 | 1 |
| 20 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 6 |
| 21 | Washer GB96.1-12EpZn-300HV | 4015000186 | 12 |
| 22 | No longer used | 4030000107 | 2 |
