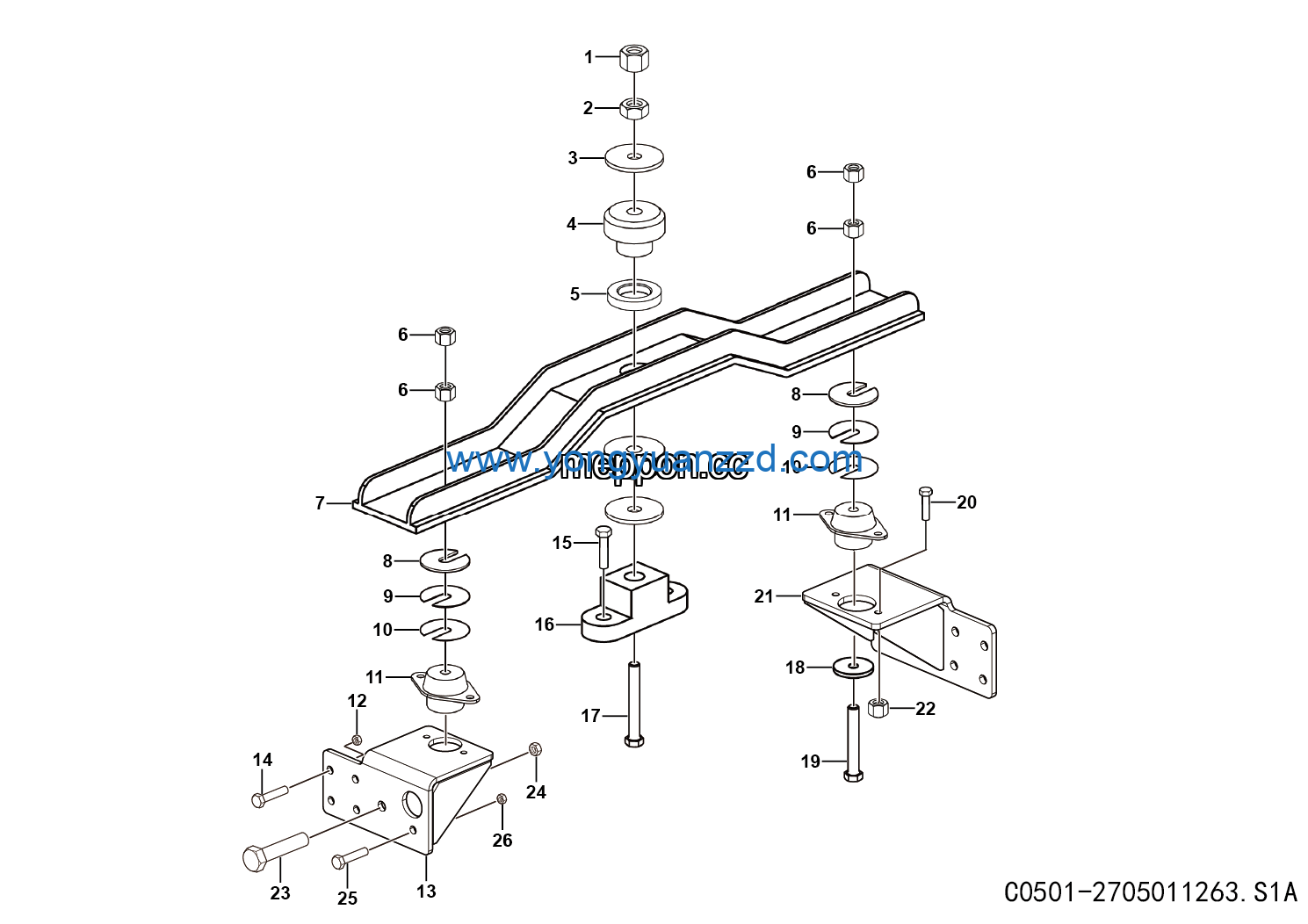

LGMG Off-Highway Dump Truck 2022 – Transmission anchorage assy – C0501-2705011263.S1A
Category: 2022 > Off-Highway Dump Truck > MT86H- > M0860W4A0A001
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Adjusting gasket | 27050103671 | 2 |
| 2 | Auxiliary support shock absorber | 4190001361 | 2 |
| 3 | Nut GB6185.1-M14flZnyc-12-480 | 4013010253 | 9 |
| 4 | Mounting seat lh | 27050112641 | 1 |
| 5 | Bolt GB5783-M14*50flZnyc-12.9-480 | 4011010549 | 9 |
| 6 | Bolt GB5783-M16*45flZnyc-12.9-480 | 4011010621 | 2 |
| 7 | Plate | 27050104241 | 1 |
| 8 | Bolt GB5782-M22*160EpZn-8.8 | 4011010411 | 1 |
| 9 | Frame | 27010109081 | 2 |
| 10 | Bolt GB5782-M12*100EpZn-8.8 | 4011000335 | 2 |
| 11 | Nut GB6172.1-M22EpZn-8 | 4013010231 | 1 |
| 12 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 4 |
| 13 | Mounting seat rh | 27050112651 | 1 |
| 14 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 4 |
| 15 | Bolt GB5782-M12*80EpZn-10.9 | 4011010245 | 1 |
| 16 | Nut GB6185.1-M12EpZn-10 | 4013010134 | 1 |
| 17 | Bolt GB5783-M16*60flZnyc-12.9-480 | 4011010570 | 2 |
| 18 | Nut GB6185.1-M16EpZn-10 | 4013010136 | 2 |
| 19 | Nut GB6170-M22EpZn-8 | 4013000138 | 1 |
| 20 | Plate | 27010105441 | 2 |
| 21 | Shock absorber Ⅰ | 4190000694 | 1 |
| 22 | Plate | 27050104231 | 1 |
| 23 | Nut GB6170-M12EpZn-8 | 4013000011 | 4 |
| 24 | Frame | 27010109201 | 1 |
| 25 | Adjusting gasket | 27050103661 | 2 |
| 26 | TUNING WASHER | 27050104201 | 2 |
