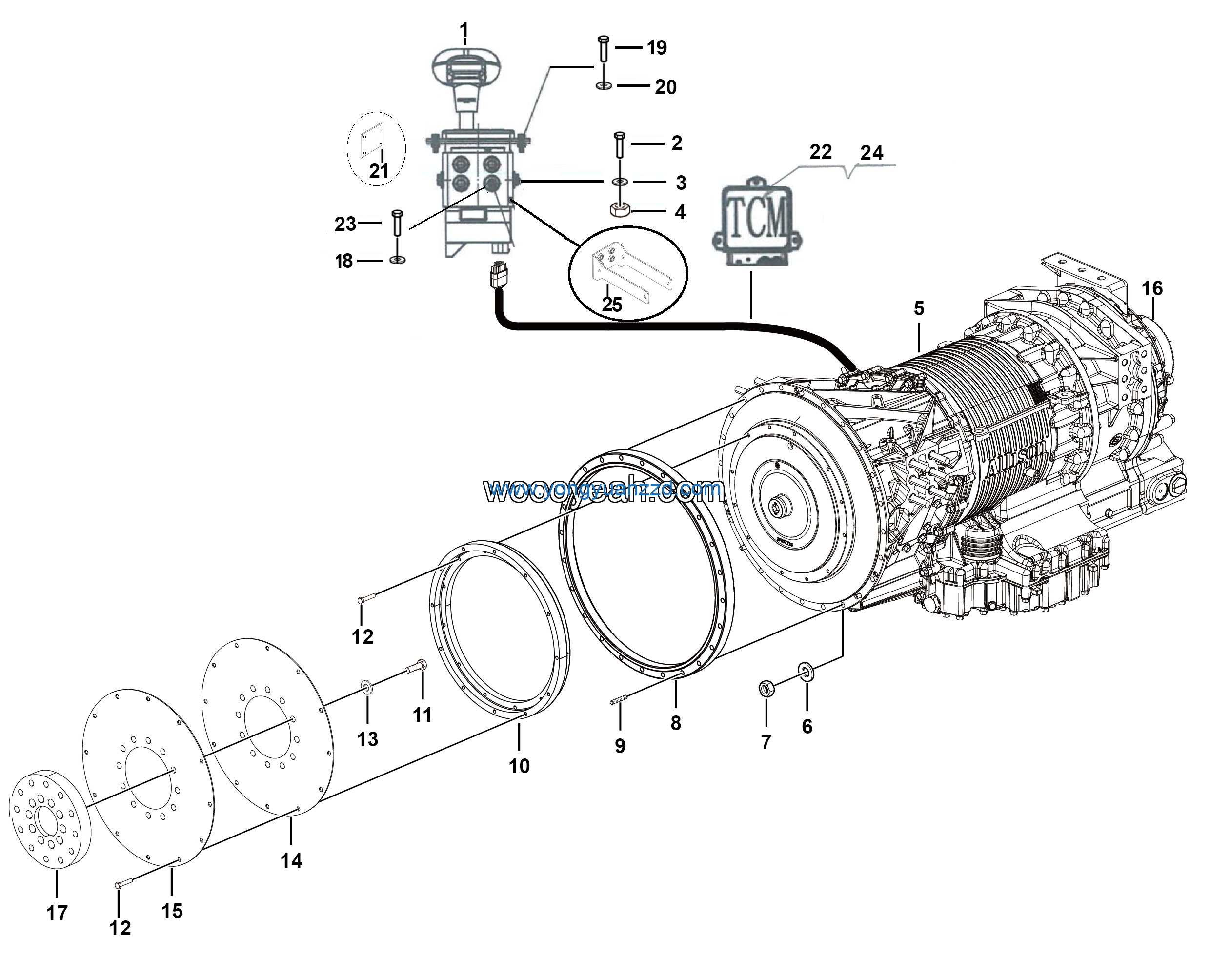

LGMG Off-Highway Dump Truck 2022 – Transmission assy – C0500-2705010985
Category: 2022 > Off-Highway Dump Truck > MT106 > M1060W3A0A008
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Flexible disc mounting ring TD005137 | 4110705212 | 1 |
| 2 | Flywheel connecting bolt 11505501 | 4110702832 | 24 |
| 3 | Bolt M8*1.25*25 | 4110704943 | 24 |
| 4 | Shim TD005109 | 4110705210 | 1 |
| 5 | Flexible disc 29514833 | 4110702834 | 3 |
| 6 | Flexible disc assy 29514832 | 4110702835 | 1 |
| 7 | End tooth output flange 29541697 | 4110702819 | 1 |
| 8 | Connecting flange TD005281 | 4110705211 | 1 |
| 9 | Washer GB97.1-8EpZn-300HV | 4015000072 | 4 |
| 10 | Screw GB70.1-M4*16EpZn-8.8 | 4014010171 | 4 |
| 11 | Lever selector（RH Hand）29557835 | 4110702822 | 1 |
| 12 | Washer GB93-4-65Mn | 4015000033 | 4 |
| 13 | Support plate | 27050109141 | 1 |
| 14 | Pressure switch 29511309（10psi） | 4110702825 | 2 |
| 15 | Screw GB70.1-M8*20EpZn-8.8 | 4014000211 | 4 |
| 16 | TCM 63CR0TQE | 4110705387 | 1 |
| 17 | Support plate | 27050109121 | 1 |
| 18 | Bolt GB5783-M6*25EpZn-8.8 | 4011000276 | 4 |
| 19 | Washer GB97.1-6EpZn-300HV | 4015000207 | 4 |
| 20 | Nut GB6170-M6EpZn-8 | 4013000028 | 4 |
| 21 | Transmission box 4800ORS 32402784 | 4110705386 | 1 |
| 22 | Washer GB97.1-10-300HV | 4015000322 | 12 |
| 23 | Nut GB6170-M10EpZn-8 | 4013000007 | 12 |
| 24 | Flywheel housing transition ring TD005103 | 4110705213 | 1 |
| 25 | Stud GB900-A M10*60EpZn-8.8 | 4012010111 | 12 |
