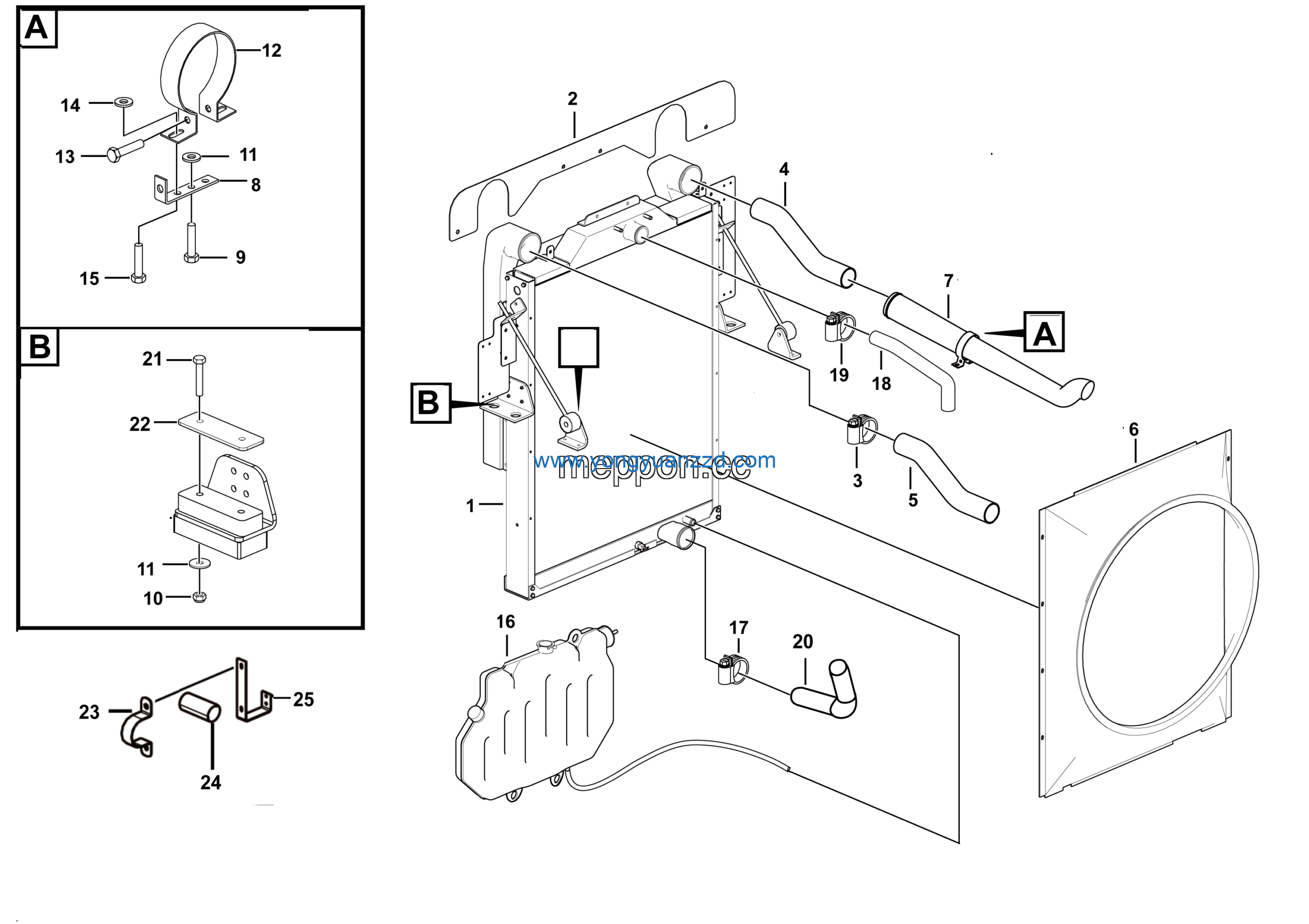

LGMG Off-Highway Dump Truck 2022 – Water radiator assy – A0300-2703012379
Category: 2022 > Off-Highway Dump Truck > CMT106 > C1060W3E0A002
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Nut GB6170-M8EpZn-8 | 4013000033 | 5 |
| 2 | Washer GB97.1-8EpZn-300HV | 4015000072 | 4 |
| 3 | Support i | 27030105861 | 1 |
| 4 | Bolt GB5782-M8*55EpZn-8.8 | 4011000415 | 1 |
| 5 | Washer GB97.1-10EpZn-300HV | 4015000162 | 1 |
| 6 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 1 |
| 7 | Expansion tank | 27030122661 | 1 |
| 8 | T-Clamp 78-86 | 4190002212 | 2 |
| 9 | SIGN | 27030115121 | 1 |
| 10 | No longer used | 4019010101 | 2 |
| 11 | Radiator assy | 4110702625 | 1 |
| 12 | INTLET PIPE OF HEATER 2 | 27030115131 | 1 |
| 13 | Bolt GB5783-M10*100EpZn-8.8 | 4011000914 | 4 |
| 14 | Plate | 27030112031 | 2 |
| 15 | HOOD COVER ASSY | 27030113881 | 1 |
| 16 | Cushion | 27160108711 | 1 |
| 17 | SIGN | 27030113871 | 1 |
| 18 | Cooler assemble support | 27030109981 | 1 |
| 19 | No longer used | 4019010211 | 4 |
| 20 | Pipe | 27030119501 | 1 |
| 21 | Pipe | 27030119481 | 1 |
| 22 | Wind guide cover DB1227 | 4110703401 | 1 |
| 23 | Pipe | 27030120072 | 1 |
| 24 | Support ii | 27030105872 | 1 |
| 25 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 4 |
