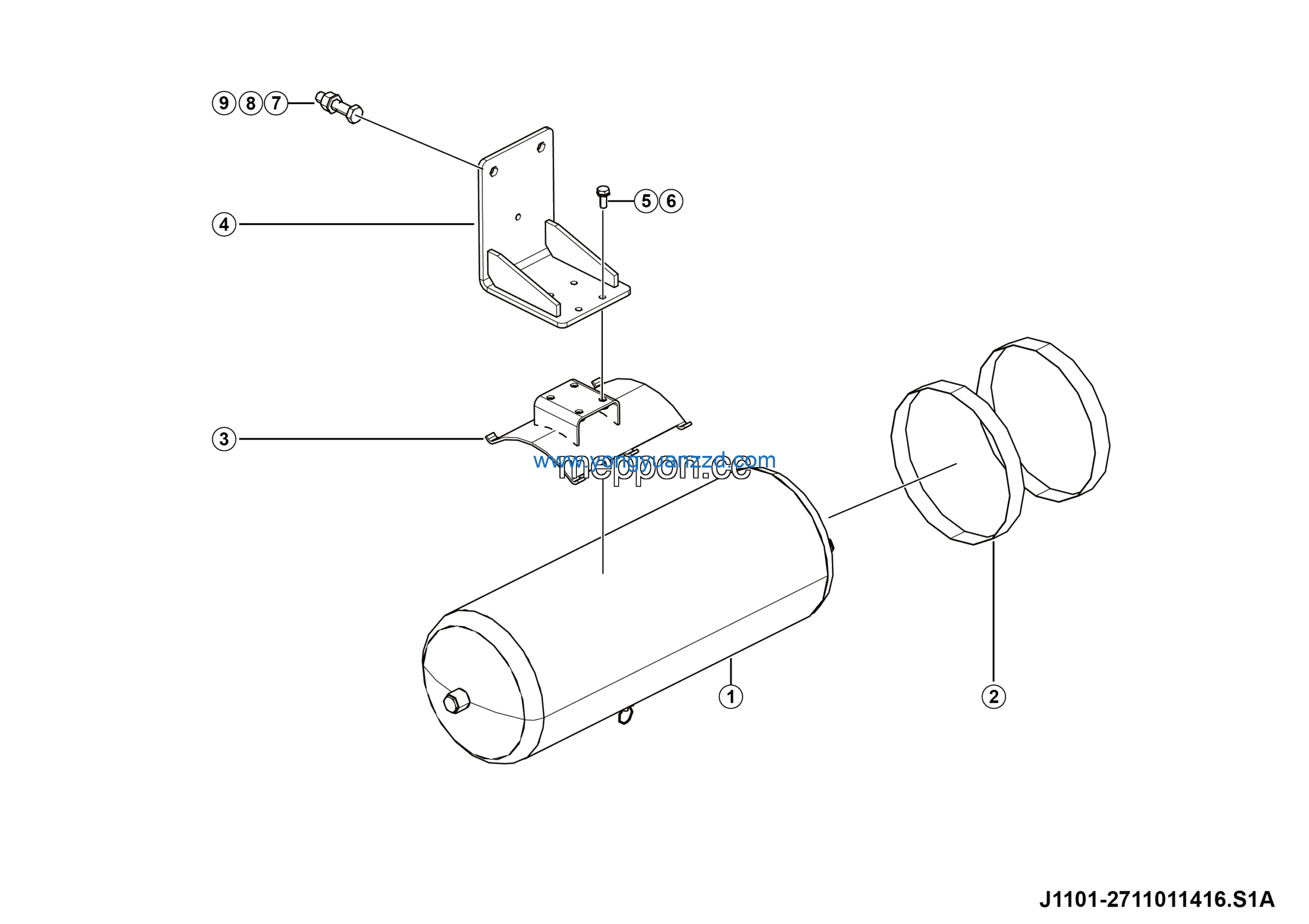

LGMG Off-Highway Dump Truck 2023 – 30L Air reservoir assy illustration – J1101-2711011416.S1A
Category: 2023 > Off-Highway Dump Truck > CMTE106H > C106HE0A0A409
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Air reservoir assembly | 27110113721 | 1 |
| 2 | Hose clamp φ246-φ250 | 4120000177 | 2 |
| 3 | Bracket of 30L reservior(246) | 27100106321 | 1 |
| 4 | Air reservoir bracket weldment | 27110114151 | 1 |
| 5 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 4 |
| 6 | Washer GB97.1-10-300HV | 4015000322 | 4 |
| 7 | Bolt GB5782-M16*70EpZn-8.8 | 4011000231 | 2 |
| 8 | Nut GB6170-M16EpZn-8 | 4013000016 | 2 |
| 9 | Washer GB97.1-16EpZn-300HV | 4015000181 | 2 |
