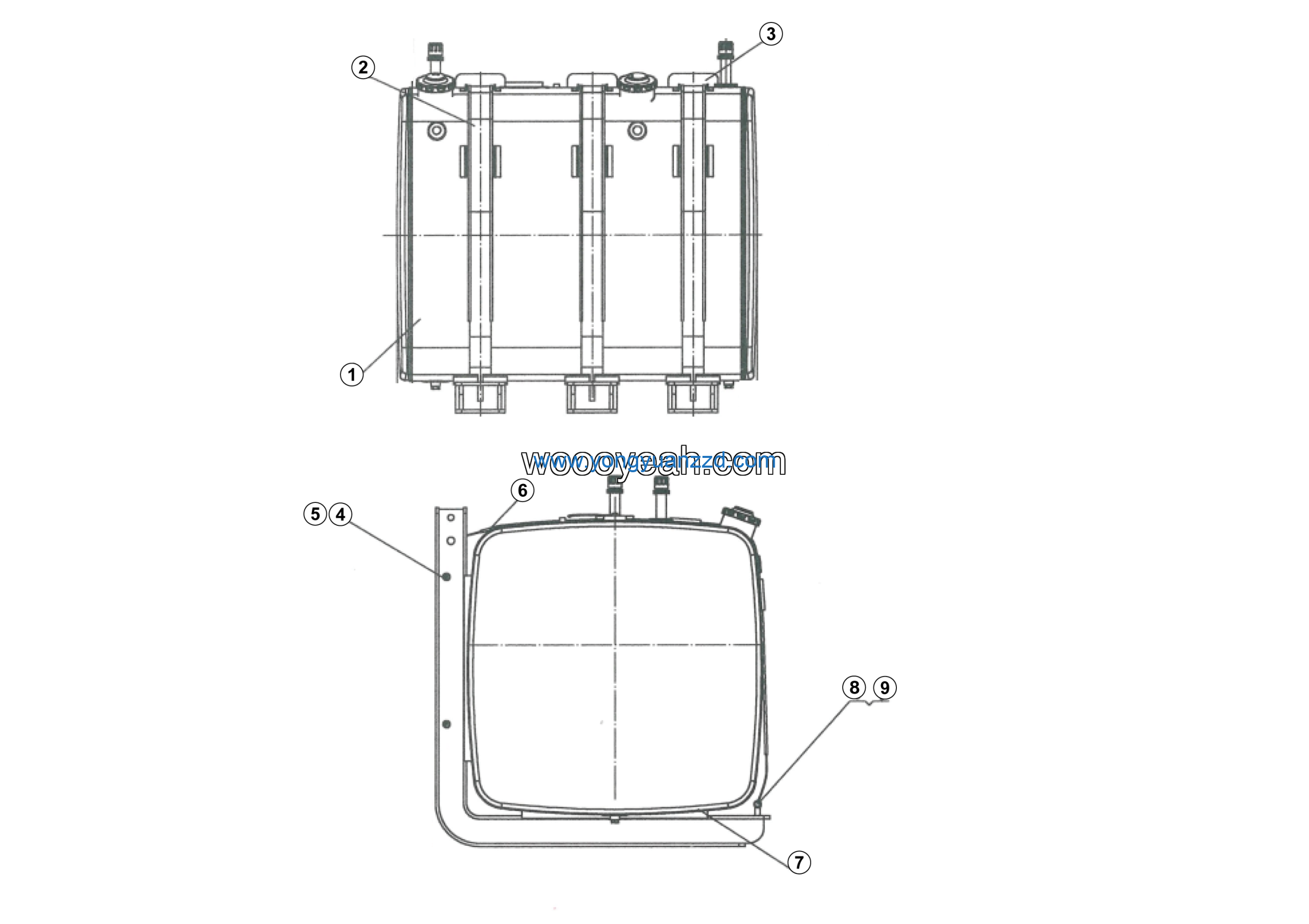

LGMG Off-Highway Dump Truck 2023 – 900L fuel tank – A0700-4190709008
Category: 2023 > Off-Highway Dump Truck > RTH136(EQ) > R1260Y3A0A504
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Tank | 4190709013 | 1 |
| 2 | Strap assy 76*1985 | 4110707997 | 1 |
| 3 | Bracket assy | 4190707488 | 3 |
| 4 | Pin | 4190707301 | 3 |
| 5 | Pin 3.2*40 | 4110706362 | 1 |
| 6 | Bracket pad belt 950*950 | 4110706120 | 6 |
| 7 | Pull strap cushion strap 950*950 | 4110706121 | 3 |
| 8 | Nut GB6170-M16EpZn-10 | 4013000205 | 6 |
| 9 | Washer GB97.1-16EpZn-300HV | 4015000181 | 3 |
