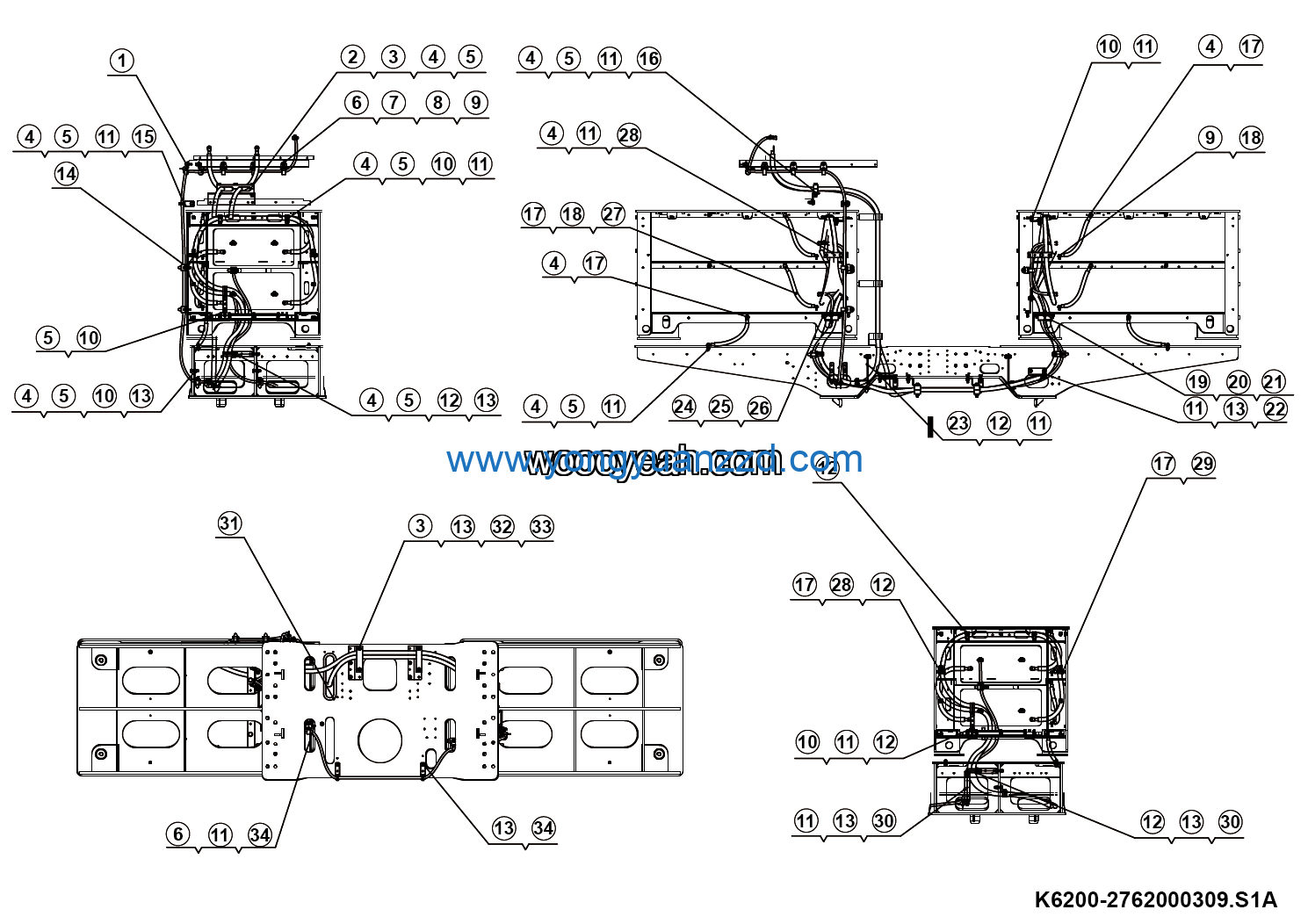

LGMG Off-Highway Dump Truck 2023 – A CHARGE – K6200-2762000309.S1A
Category: 2023 > Off-Highway Dump Truck > CMTE106H > C106HE0A0A201
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bracket | 27620002681 | 8 |
| 2 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 30 |
| 3 | Double hole R-type clamp R-D25*2-M10 | 4190707978 | 12 |
| 4 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 16 |
| 5 | Bolt GB16674.1-M8*35flZnyc-8.8-480 | 4011011020 | 2 |
| 6 | Support | 27620002241 | 1 |
| 7 | Bracket-125 | 27620001591 | 1 |
| 8 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 10 |
| 9 | Bolt GB5783-M8*20EpZn-8.8 | 4011000105 | 4 |
| 10 | Upr bracket sealing rubber | 4190708591 | 2 |
| 11 | Bolt GB16674.1-M8*30EpZn-8.8 | 4011000481 | 2 |
| 12 | Low voltage wire rubber sheath | 4190708590 | 4 |
| 13 | Plank | 27620003001 | 2 |
| 14 | Bracket | 27620002121 | 1 |
| 15 | Bracket | 27620002781 | 1 |
| 16 | Washer GB97.1-6EpZn-300HV | 4015000207 | 16 |
| 17 | Bolt GB5783-M6*25flZnyc-8.8-480 | 4011010731 | 8 |
| 18 | Nut GB6170-M6-8-304 | 4013010509 | 8 |
| 19 | wire | 2762000161-063 | 6 |
| 20 | Bracket | 27620002161 | 2 |
| 21 | Pipe clamp R-D24-M10 | 4190707970 | 2 |
| 22 | Row of tubes | 27620002701 | 2 |
| 23 | Bracket | 27620002691 | 3 |
| 24 | Protecting bush | 27620002711 | 1 |
| 25 | Panel bracket 70 | 27030141261 | 4 |
| 26 | Row of tubes | 27620001531 | 4 |
| 27 | Bracket | 27620002511 | 3 |
| 28 | Bolt GB5782-M10*75EpZn-8.8 | 4011000052 | 7 |
| 29 | Washer GB97.1-10EpZn-300HV | 4015000162 | 112 |
| 30 | Nut GB6170-M10EpZn-8 | 4013000007 | 47 |
| 31 | Cable tie 14400342 | 4130703098 | 16 |
| 32 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 4 |
| 33 | Nut GB6170-M8EpZn-8 | 4013000033 | 4 |
| 34 | Washer GB97.1-8EpZn-300HV | 4015000072 | 14 |
