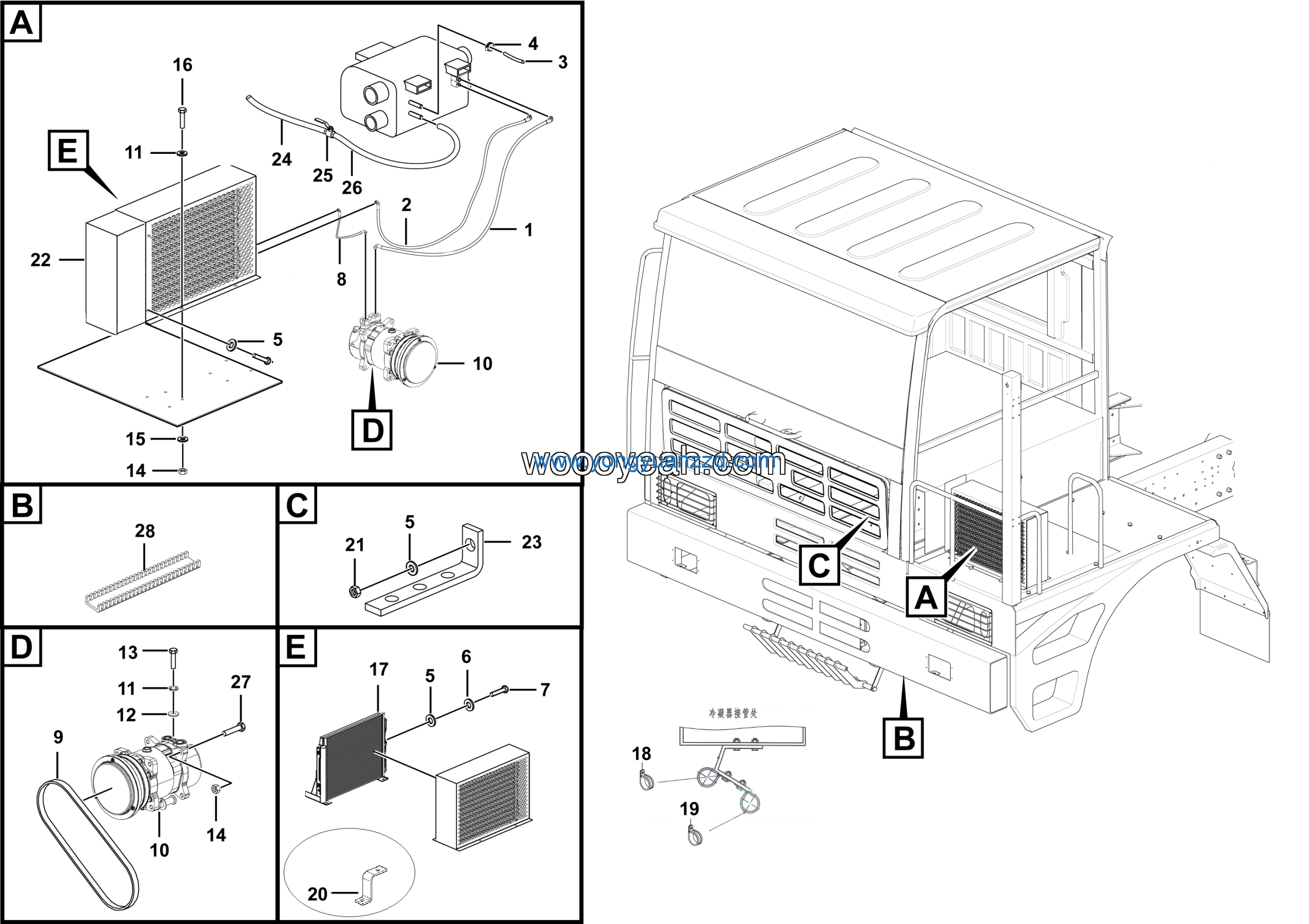

LGMG Off-Highway Dump Truck 2023 – Air conditioner assy – N2101-2721010580
Category: 2023 > Off-Highway Dump Truck > MT50 > M0500WE13
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Compressor | 4190001088 | 1 |
| 2 | Washer GB93-10-65Mn | 4015000025 | 1 |
| 3 | Washer GB97.1-10EpZn-300HV | 4015000162 | 5 |
| 4 | Bolt GB5786-M10*1.25*40EpZn-8.8 | 4011000837 | 1 |
| 5 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 6 |
| 6 | Washer GB96.1-10EpZn-300HV | 4015000197 | 4 |
| 7 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 4 |
| 8 | Condenser assy | 4190708206 | 1 |
| 9 | Clamp | 4190002390 | 1 |
| 10 | Clamp | 4190002391 | 1 |
| 11 | Pipe（Compressor-condenser）GK33-5.0K16-40-WX | 4130703622 | 1 |
| 12 | Bracket | 4190002389 | 1 |
| 13 | Nut GB6170-M6EpZn-8 | 4013000028 | 2 |
| 14 | Shield | 4190002561 | 1 |
| 15 | Bracket 1 | 27100103561 | 2 |
| 16 | Valve connecting pipe | 27210103882 | 1 |
| 17 | Valve assembly | 27210103841 | 1 |
| 18 | Intlet pipe of heater | 27210103902 | 1 |
| 19 | Bolt | 27210101851 | 2 |
| 20 | Sheath | 27210103441 | 2 |
| 21 | Pipe（Condenser-evaporator）GKZ36-5.0K16-50-WX | 4130703623 | 1 |
| 22 | Pipe（Evaporator-compressor）GK33-5.0K16-20-WX | 4130703620 | 1 |
| 23 | Hose clamp JB8870-D32 | 4017000011 | 6 |
| 24 | Washer GB97.1-6EpZn-300HV | 4015000207 | 7 |
| 25 | Washer GB93-6EpZn-65Mn | 4015000213 | 2 |
| 26 | Bolt GB5783-M6*30EpZn-8.8 | 4011000291 | 5 |
| 27 | Heating pipe(outlet) | 27210103622 | 1 |
| 28 | Compressor belt | 4190001292 | 1 |
