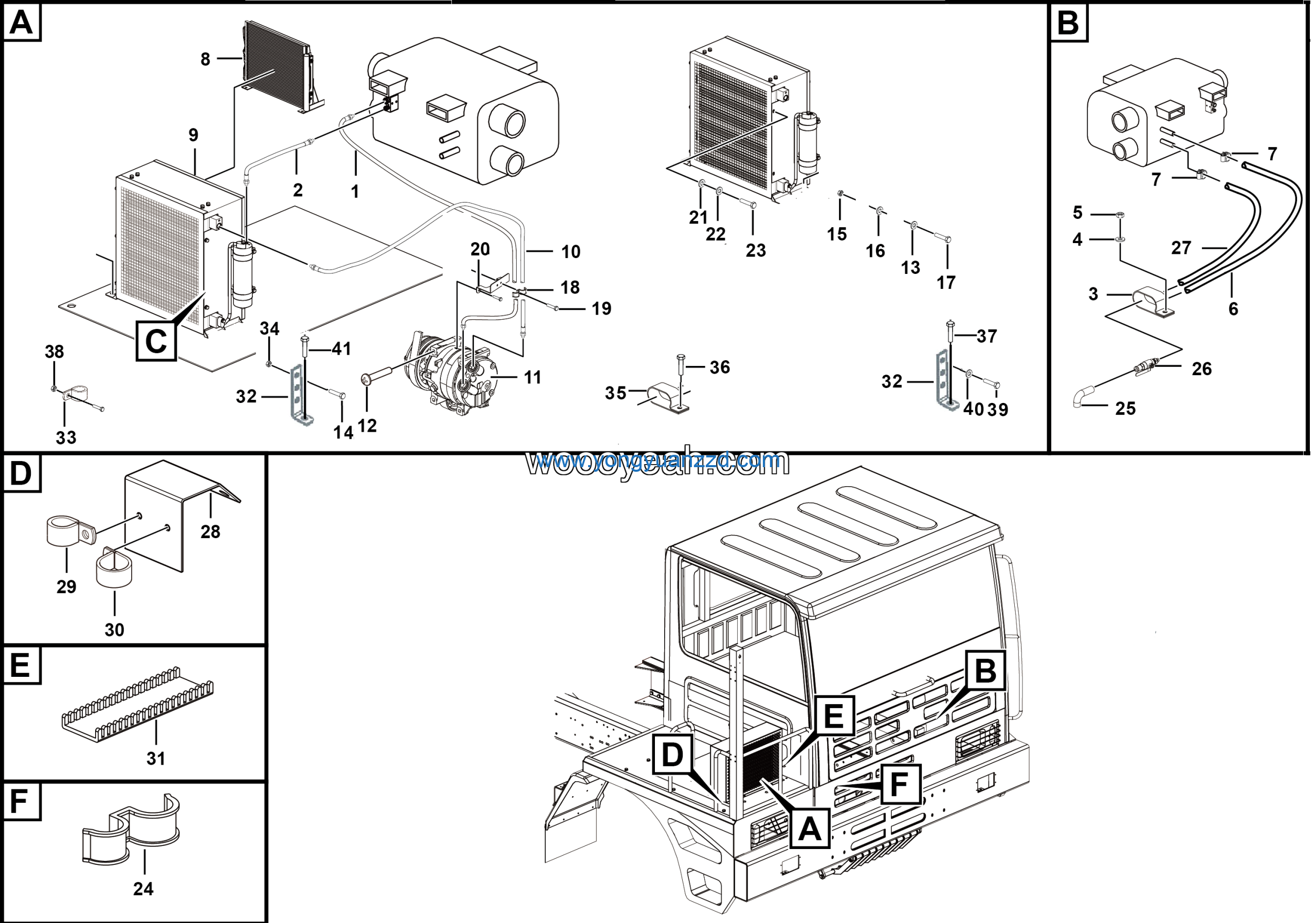

LGMG Off-Highway Dump Truck 2023 – Air conditioner assy – N2104-2721010340
Category: 2023 > Off-Highway Dump Truck > MT96LF > M096LW4A0M033
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Pipe（Compressor-condenser） | 4190708031 | 1 |
| 2 | Compressor assy | 4190003346 | 1 |
| 3 | Screw GB70.1-M8*100EpZn-10.9 | 4011010418 | 4 |
| 4 | Washer GB97.1-10EpZn-300HV | 4015000162 | 4 |
| 5 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 1 |
| 6 | Nut GB6170-M10EpZn-8 | 4013000007 | 4 |
| 7 | Washer GB96.1-10EpZn-300HV | 4015000197 | 9 |
| 8 | Bolt GB5783-M10*70EpZn-8.8 | 4011000413 | 4 |
| 9 | Clamp | 4190002236 | 1 |
| 10 | Bolt GB5783-M6*25EpZn-8.8 | 4011000276 | 2 |
| 11 | Pipe（Compressor-evaporator） | 4190001781 | 1 |
| 12 | Pipeline support | 4190002235 | 1 |
| 13 | Washer GB97.1-6EpZn-300HV | 4015000207 | 10 |
| 14 | Washer GB93-6EpZn-65Mn | 4015000213 | 2 |
| 15 | Bolt GB5783-M6*30EpZn-8.8 | 4011000291 | 8 |
| 16 | Clamp B | 4190001780 | 4 |
| 17 | SUPPORT PLATE | 27210104361 | 1 |
| 18 | Valve assembly | 27210103841 | 1 |
| 19 | Intlet pipe of heater | 27210103744 | 1 |
| 20 | Bracket | 4190002389 | 1 |
| 21 | Clamp | 4190002390 | 1 |
| 22 | Pipe（Evaporator-reservoir） | 4190001782 | 1 |
| 23 | Clamp | 4190002391 | 1 |
| 24 | Sheath | 27210103441 | 2 |
| 25 | Bracket 1 | 27100103561 | 2 |
| 26 | Cable tie HS-J117 | 4130704969 | 1 |
| 27 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 2 |
| 28 | Double hole R-type clamp R-D40*2-M10 | 4190707989 | 4 |
| 29 | Bolt GB5783-M10*12-8.8 | 4011000630 | 3 |
| 30 | Bolt GB5783-M10*100EpZn-8.8 | 4011000914 | 1 |
| 31 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 1 |
| 32 | Bolt GB5782-M8*45EpZn-8.8 | 4011000298 | 1 |
| 33 | Double nipple clamp | 27210101701 | 2 |
| 34 | Washer GB97.1-8EpZn-300HV | 4015000072 | 2 |
| 35 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 1 |
| 36 | Washer GB96.1-6EpZn-300HV | 4015000198 | 2 |
| 37 | Nut GB6170-M6EpZn-8 | 4013000028 | 3 |
| 38 | Outlet pipe of heater | 27210103224 | 1 |
| 39 | Hose clamp JB8870-D32 | 4017000011 | 6 |
| 40 | Condenser assy | 4190708206 | 1 |
| 41 | Shield | 4190002561 | 1 |
