LGMG Off-Highway Dump Truck 2023 – Air conditioner installation – N2101-2721010806.S1A
Category: 2023 > Off-Highway Dump Truck > RT136 > R1000W3A2A001

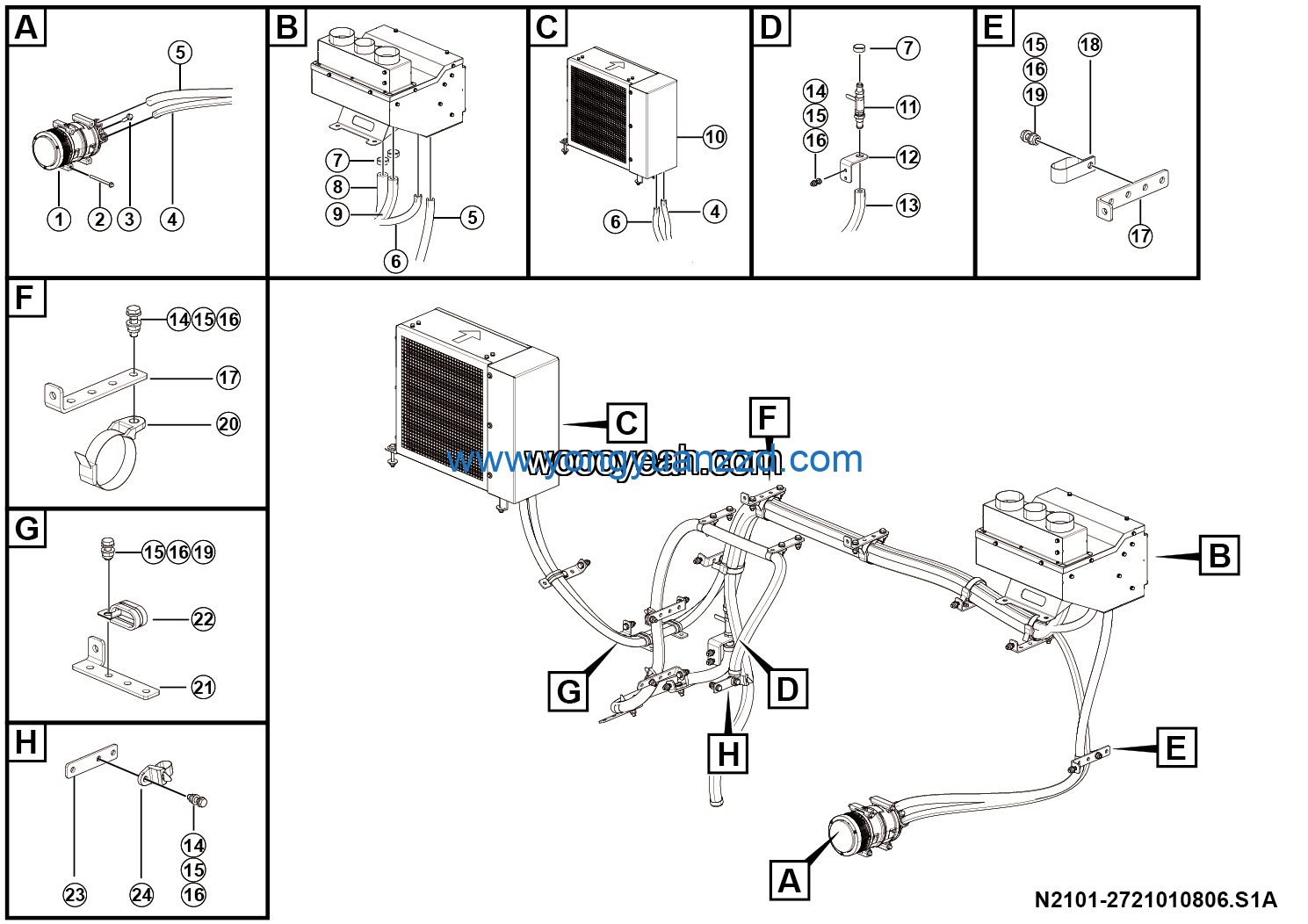

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Condenser installation | 27210108001 | 1 |
| 2 | Valve assembly | 27210103841 | 1 |
| 3 | Ball support | 27210104091 | 1 |
| 4 | Hose 20*5-2550 | 27210108151 | 1 |
| 5 | Bolt GB5782-M10*35EpZn-8.8 | 4011010164 | 30 |
| 6 | Washer GB97.1-10EpZn-300HV | 4015000162 | 69 |
| 7 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 34 |
| 8 | L-shaped bracket 169*30*38 | 27210107871 | 11 |
| 9 | Double hole R-type clamp R-D28*2-M10 | 4190707979 | 1 |
| 10 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 4 |
| 11 | Compressor assy | 4190003346 | 1 |
| 12 | Nylon large tie strap HS-J118 | 4130705870 | 5 |
| 13 | Bracket160*42*42 | 27210107711 | 2 |
| 14 | Double hole R-type clamp R-D25*2-M10 | 4190707978 | 3 |
| 15 | Bracket138*30*5 | 27210107671 | 3 |
| 16 | Cable tie HS-J117 | 4130704969 | 7 |
| 17 | Bolt GB16674.1-M8*95flZnyc-8.8-480 | 4011011120 | 4 |
| 18 | Bolt GB16674.2-M10*1.25*35EpZn-10.9 | 4011011611 | 1 |
| 19 | Hose（Compressor-condenser）GK33-5.0K-580 | 4190709889 | 1 |
| 20 | Hose (Evap-compressor) GK33-5.0K-570 | 4190709888 | 1 |
| 21 | Hose (Evap-condenser) GK33-5.0K-590 | 4190709890 | 1 |
| 22 | Clamp φ17-φ38 | 4190708280 | 6 |
| 23 | Hose 16-20*5-2050 | 27210108131 | 1 |
| 24 | Hose 16-20*5-3000 | 27210108141 | 1 |
