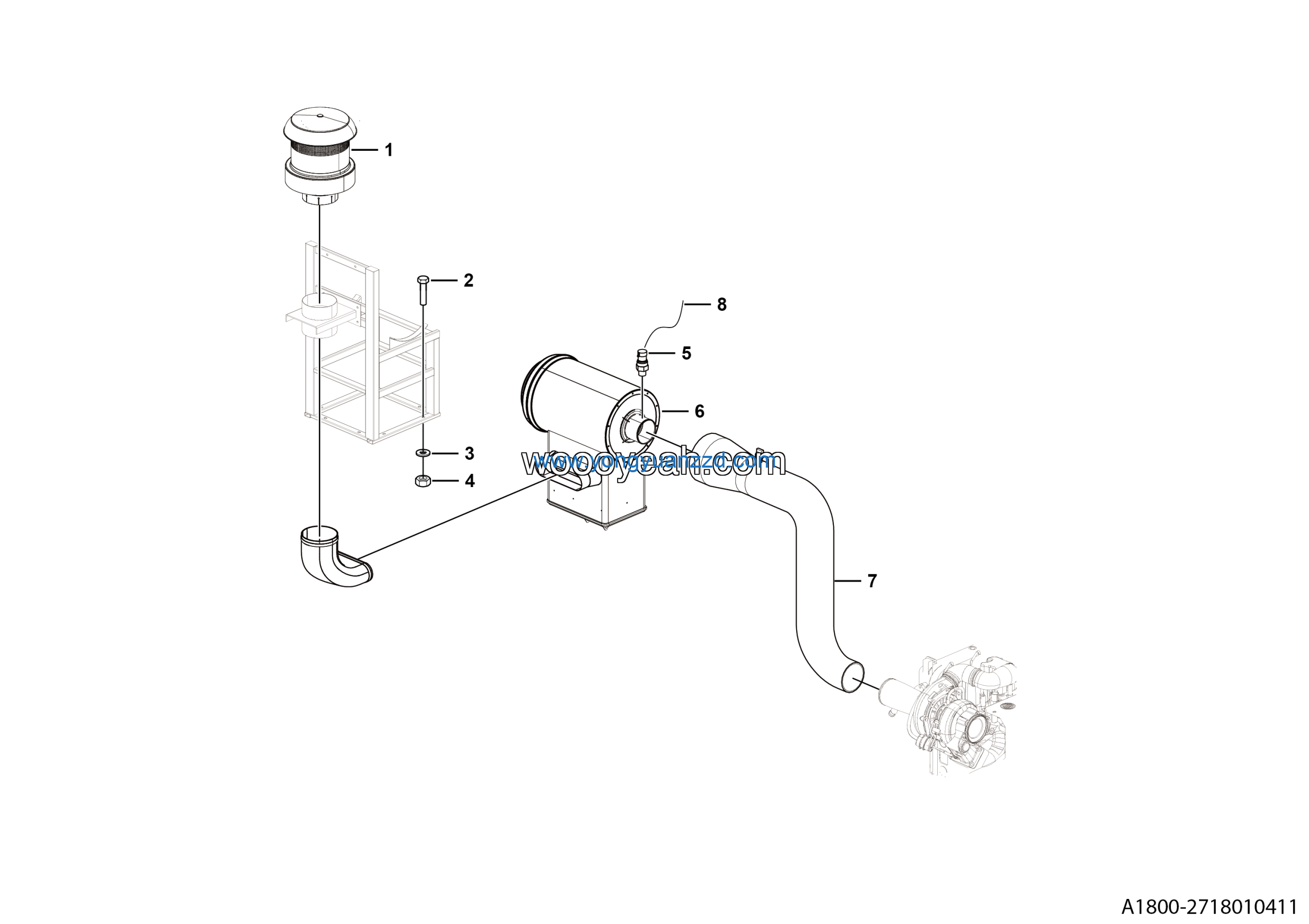

LGMG Off-Highway Dump Truck 2023 – Air filter assy – A1800-2718010411
Category: 2023 > Off-Highway Dump Truck > MT86H > M086HWE74
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Cyclone coarse filter subassy 1000293601 | 4110001274 | 1 |
| 2 | Bolt GB5782-M12*90EpZn-8.8 | 4011000414 | 8 |
| 3 | Washer GB96.1-12EpZn-300HV | 4015000186 | 16 |
| 4 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 8 |
| 5 | Air filter blockage alarm 1000267954 | 4110001277 | 1 |
| 6 | Dust air filter assy | 4110001275 | 1 |
| 7 | Engine intake hose | 4110001924 | 1 |
| 8 | Wire | 27200107741 | 1 |
