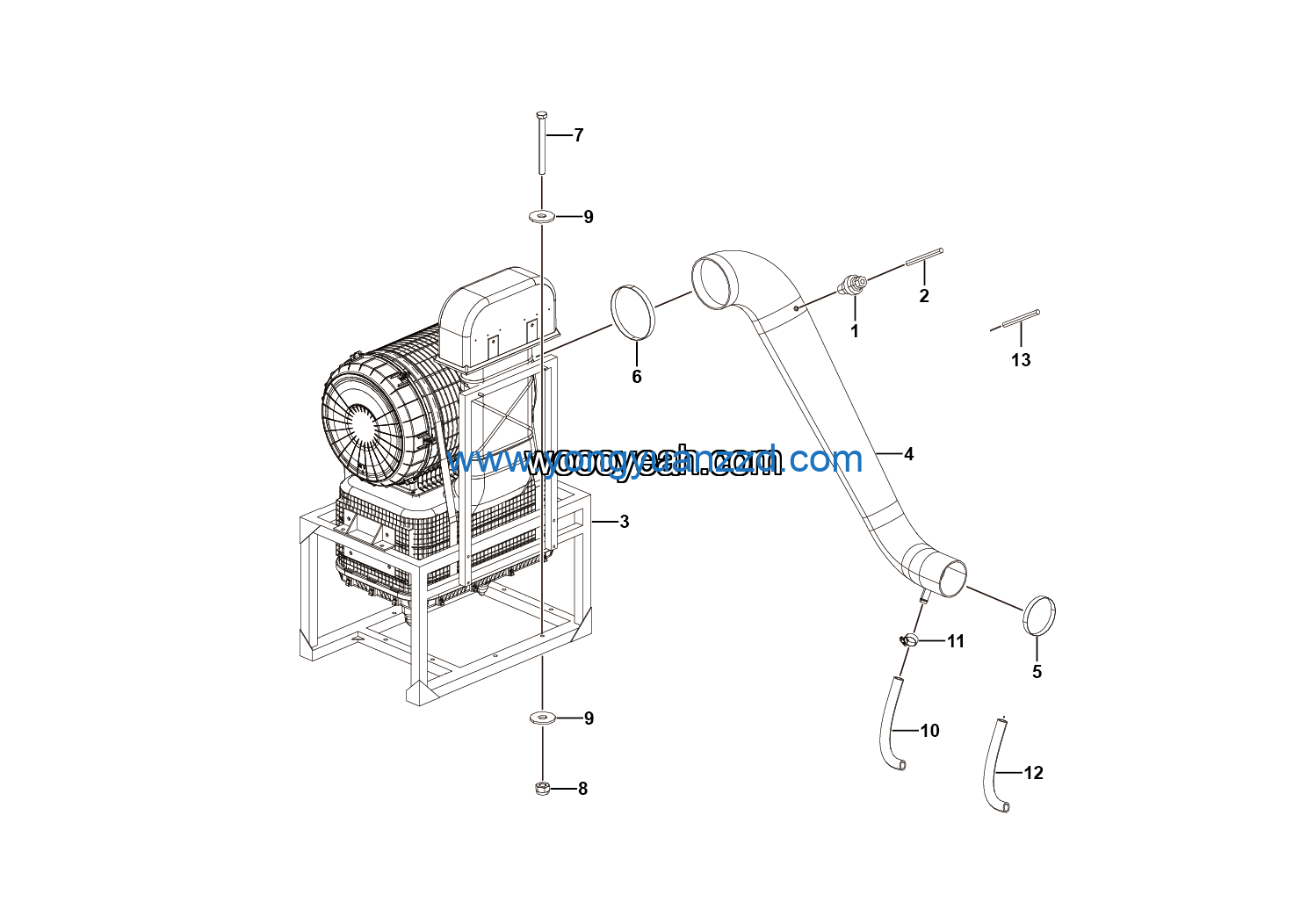

LGMG Off-Highway Dump Truck 2023 – Air filter assy – A1802-2718011004.S1A
Category: 2023 > Off-Highway Dump Truck > MT96LF > M096LW4A0M024
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | PLATE | 27180104271 | 1 |
| 2 | Hose clamp JB8870-D32 | 4017000011 | 2 |
| 3 | Pipe | 27180110051 | 1 |
| 4 | Wire | 27200146251 | 1 |
| 5 | Vacuum level alarm | 4110001427 | 1 |
| 6 | Wire | 27200107621 | 1 |
| 7 | Desert air filter assy 1109010-3560SM | 4190707350 | 1 |
| 8 | Pipe | 27180107841 | 1 |
| 9 | T-Hoop φ132-φ140 | 4190703914 | 1 |
| 10 | T-bolt clamp φ188-φ196 | 4190002630 | 1 |
| 11 | Bolt GB5782-M12*120EpZn-8.8 | 4011000054 | 8 |
| 12 | Nut GB6185.1-M12EpZn-8 | 4013010120 | 8 |
| 13 | Washer GB96.1-12EpZn-300HV | 4015000186 | 16 |
