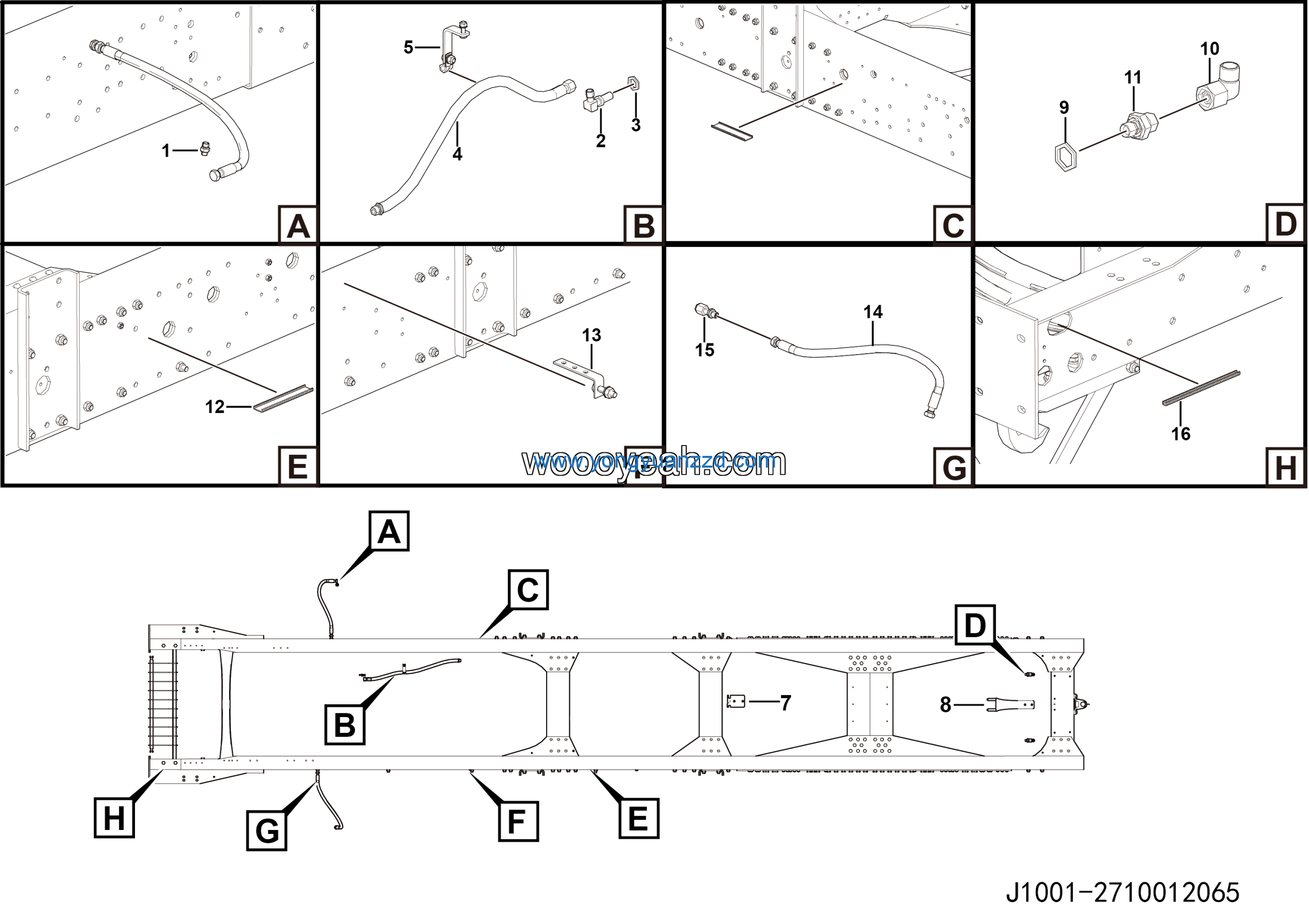

LGMG Off-Highway Dump Truck 2023 – ASM-Driving accessory assy – J1001-2710012065
Category: 2023 > Off-Highway Dump Truck > MT96LF > M096LW4A0M035
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Combination joint LGB143-02213 | 4041001156 | 2 |
| 2 | Straight joint LGB155-11622 | 4041001160 | 4 |
| 3 | String casing | 27140105021 | 1 |
| 4 | Plate | 27100120611 | 2 |
| 5 | Air pipe gpu-13-i-880-sg | 27100107441 | 2 |
| 6 | Nipple | 27100118011 | 2 |
| 7 | Fagging | 27100107131 | 1 |
| 8 | CONNECTOR | 27100100661 | 2 |
| 9 | Joint m12-m12 | 27100104301 | 1 |
| 10 | Washer JB982-12 | 4015000327 | 1 |
| 11 | Wired hose | 27100112591 | 1 |
| 12 | Plate | 27100120661 | 1 |
| 13 | Cable protector | 27140108701 | 1 |
| 14 | Pipe bracket | 27100107393 | 1 |
| 15 | Plate | 27100120621 | 1 |
| 16 | Washer JB982-16 | 4015000141 | 6 |
