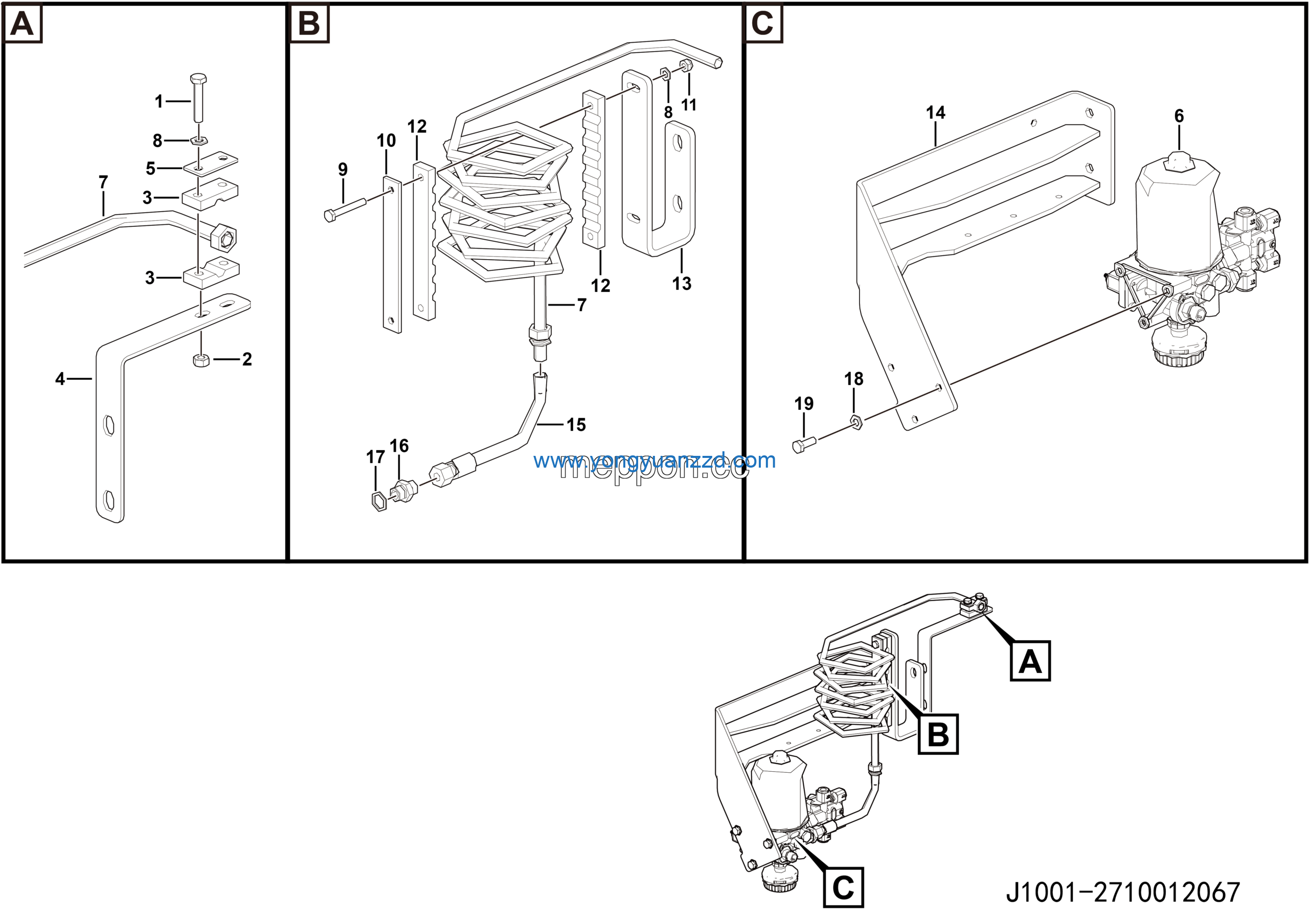

LGMG Off-Highway Dump Truck 2023 – ASM-Dryer installation assy – J1001-2710012067
Category: 2023 > Off-Highway Dump Truck > MT106LF > M1060W4A0M001
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Plate | 27100108872 | 1 |
| 2 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 2 |
| 3 | Rubber clip | 27100108841 | 2 |
| 4 | Plate | 27100112453 | 1 |
| 5 | Plate | 27100111862 | 1 |
| 6 | Wired hose | 27100107941 | 1 |
| 7 | M22-m22 rectangular connector | 27100100691 | 1 |
| 8 | Washer JB982-22 | 4015000092 | 1 |
| 9 | Washer GB97.1-12EpZn-300HV | 4015000168 | 3 |
| 10 | Bolt GB5783-M12*30EpZn-8.8 | 4011000089 | 3 |
| 11 | Bolt GB5782-M10*50EpZn-8.8 | 4011000048 | 2 |
| 12 | Nut GB6170-M10EpZn-8 | 4013000007 | 2 |
| 13 | Rubber fixed chunk | 27100104181 | 2 |
| 14 | Plate | 27100112581 | 1 |
| 15 | Fixed plate | 27100104191 | 1 |
| 16 | Air Handling unit | 4120001482 | 1 |
| 17 | Pipe assembly | 27100112751 | 1 |
| 18 | Washer GB97.1-10EpZn-300HV | 4015000162 | 4 |
| 19 | Bolt GB5782-M10*65EpZn-8.8 | 4011000497 | 2 |
