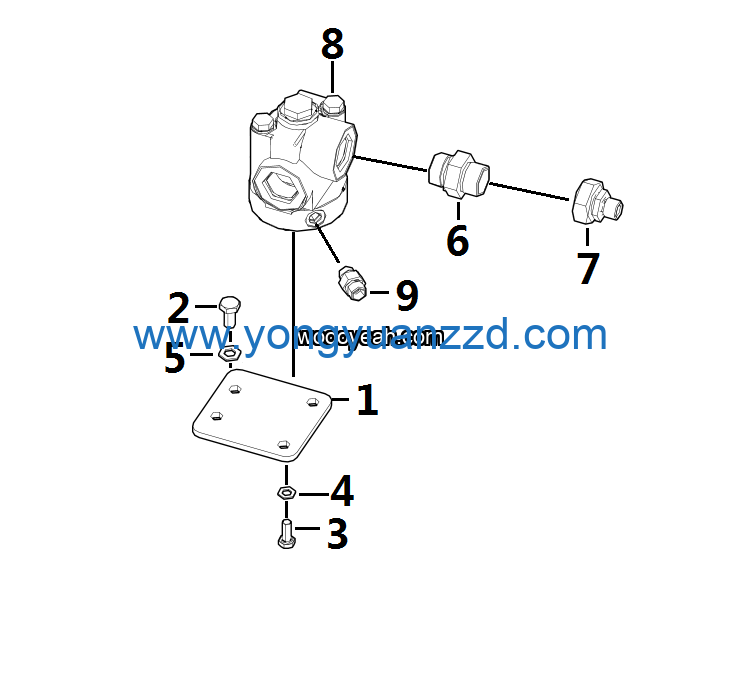

LGMG Off-Highway Dump Truck 2023 – ASM-Front axle relay valve assy – J1000-2710012238
Category: 2023 > Off-Highway Dump Truck > EL100 > R1260Y3A0A602
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Armor plate | 27100119092 | 1 |
| 2 | Bolt GB5783-M10*20EpZn-8.8 | 4011000081 | 2 |
| 3 | Bolt GB5783-M8*20EpZn-8.8 | 4011000105 | 2 |
| 4 | Washer GB97.1-8EpZn-300HV | 4015000072 | 2 |
| 5 | Washer GB97.1-10EpZn-300HV | 4015000162 | 2 |
| 6 | Straight joint 1CO-30-16 | 4120002014 | 3 |
| 7 | Reducing joint RED22/12LOMDCF | 4120705587 | 3 |
| 8 | Relay valve RV-B-LGZJ | 4120710952 | 1 |
| 9 | Straight joint 1CO-16-04 | 4190000983 | 1 |
