LGMG Off-Highway Dump Truck 2023 – ASM-Lift valve assy – M1601-2716013017
Category: 2023 > Off-Highway Dump Truck > MT96LF > M096LW4A0M014

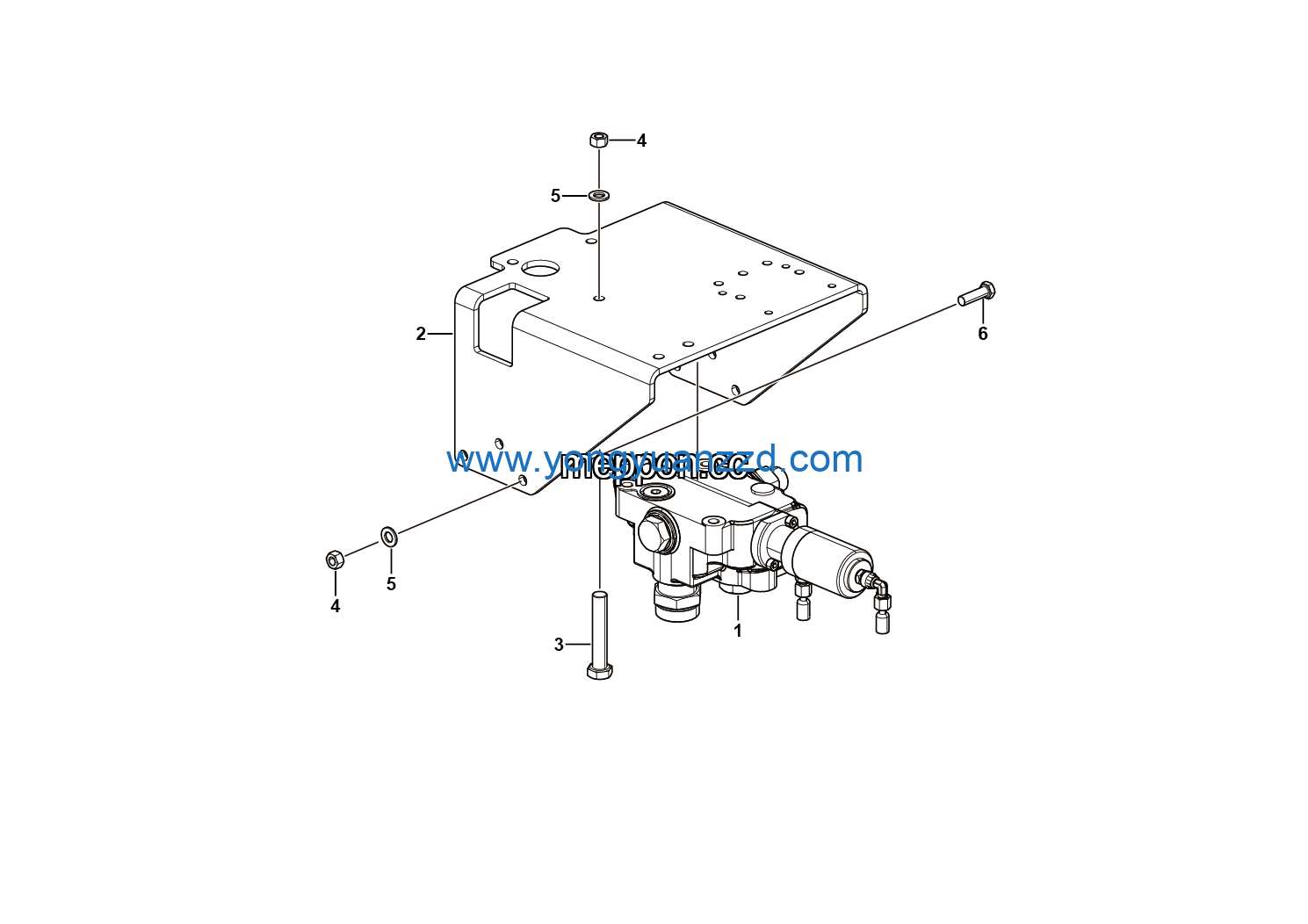

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Lifting valve assembly | 27160130181 | 1 |
| 2 | Lifting valve brkt | 27160124221 | 1 |
| 3 | Bolt GB5782-M12*65EpZn-8.8 | 4011000261 | 3 |
| 4 | Nut GB6170-M12EpZn-8 | 4013000011 | 7 |
| 5 | Washer GB97.1-12EpZn-300HV | 4015000168 | 7 |
| 6 | Bolt GB5783-M12*40EpZn-8.8 | 4011000091 | 4 |
