LGMG Off-Highway Dump Truck 2023 – ASM – Relief valve installation assembly – H6000-2760000205
Category: 2023 > Off-Highway Dump Truck > RTH136(EQ) > R1260Y3A0A501

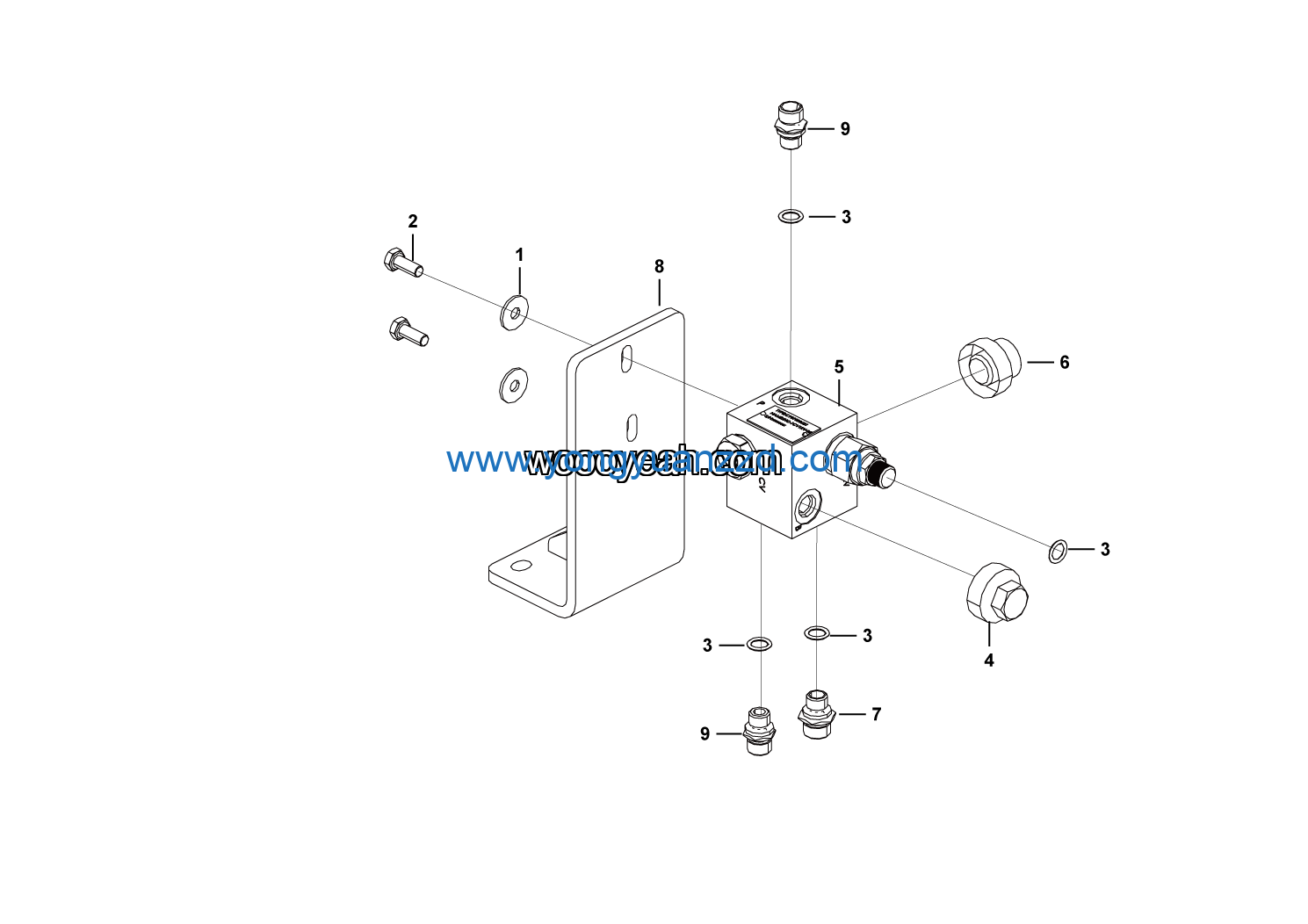

Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB96.1-8EpZn-300HV | 4015000256 | 2 |
| 2 | Bolt GB5783-M8*20EpZn-8.8 | 4011000105 | 2 |
| 3 | O-ring LGB168-11124 | 4041000767 | 4 |
| 4 | Nut LGB135-01422 | 4041000774 | 1 |
| 5 | Relief valve C101000681-A | 4120708100 | 1 |
| 6 | Plug VSTI22*1.5OR | 4120706952 | 1 |
| 7 | Straight joint LGB120-01814 | 4041000150 | 1 |
| 8 | Relief valve bracket welding | 27600002061 | 1 |
| 9 | Straight joint LGB120-01614 | 4041000604 | 2 |
