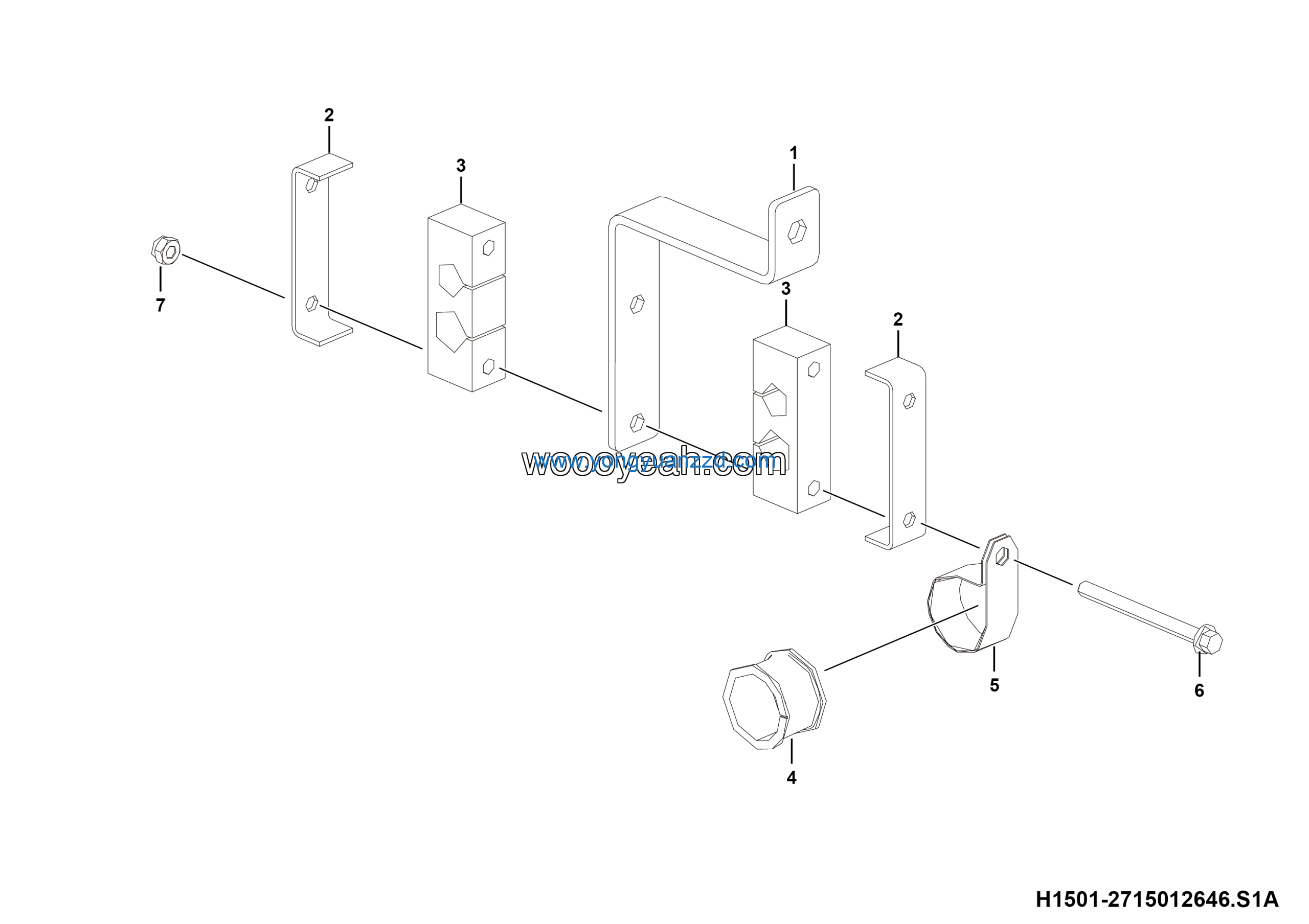

LGMG Off-Highway Dump Truck 2023 – ASM-Return oil hose fixing assy – H1501-2715012646.S1A
Category: 2023 > Off-Highway Dump Truck > MS40 > MS400W3A0M005
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Plate | 27160112981 | 1 |
| 2 | Cover plate | 27150110571 | 2 |
| 3 | Pipe rubber clamp | 27150111141 | 2 |
| 4 | CUSHION SLEEVE LGB123-0846 | 4041001636 | 1 |
| 5 | Pipe clamp LGB167-0846 | 4041010082 | 1 |
| 6 | Bolt GB16674.1-M10*110EpZn-8.8 | 4011000532 | 2 |
| 7 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 2 |
