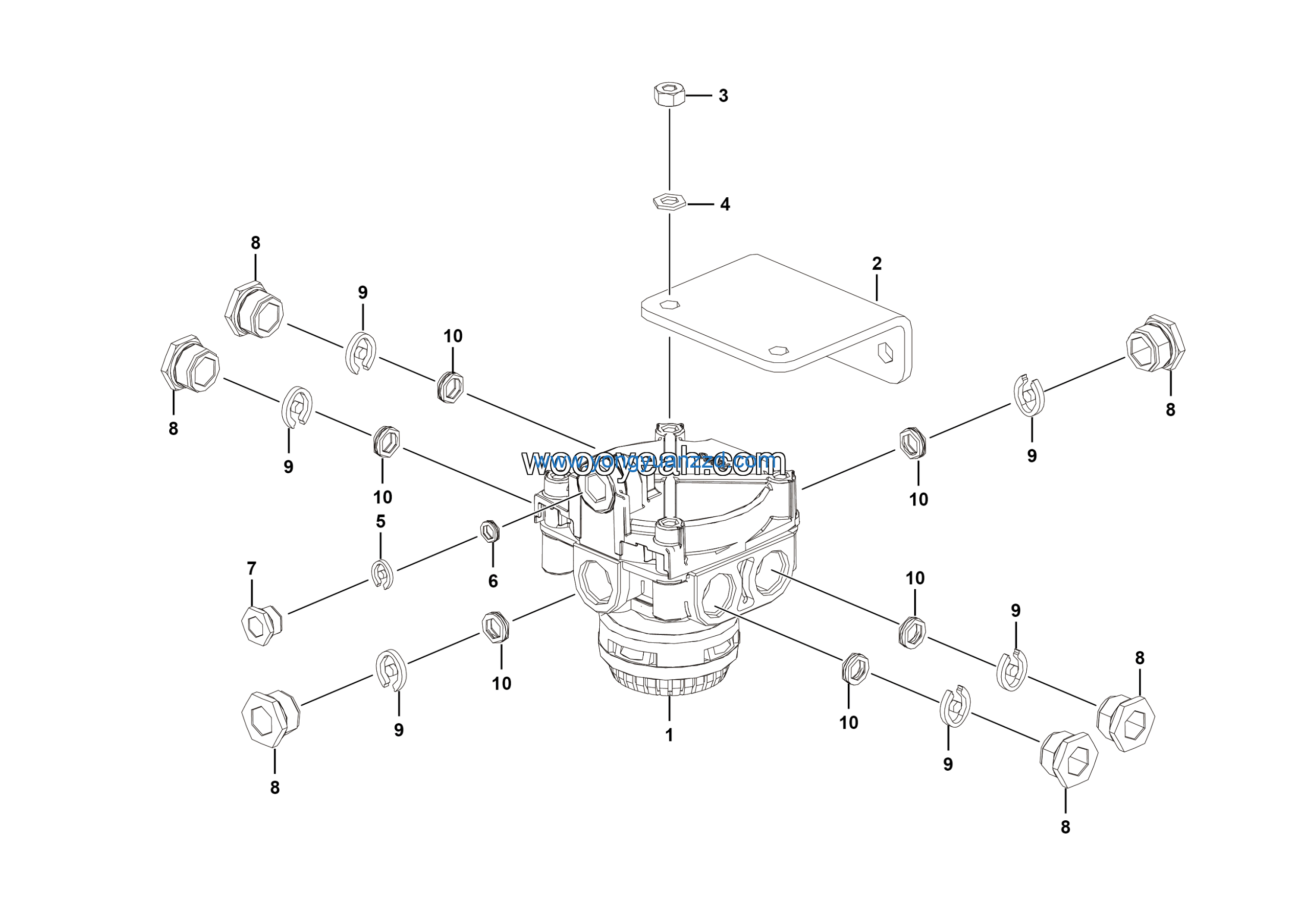

LGMG Off-Highway Dump Truck 2023 – ASM-Run relay valve installation assy – J1001-2710011744
Category: 2023 > Off-Highway Dump Truck > MT96LF > M096LW4A0M068
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Elastic element NG12 | 4120000193 | 6 |
| 2 | Relay valve | 4120706504 | 1 |
| 3 | Plate | 27100106811 | 1 |
| 4 | Nut GB6170-M8EpZn-8 | 4013000033 | 2 |
| 5 | Washer GB97.1-8EpZn-300HV | 4015000072 | 2 |
| 6 | Clip spring NG8 | 4120000196 | 1 |
| 7 | Elastic element NG8 | 4120000197 | 1 |
| 8 | Nut seat NG8 | 4120000194 | 1 |
| 9 | Nut seat NG12 | 4120000190 | 6 |
| 10 | Clip spring NG12 | 4120000192 | 6 |
