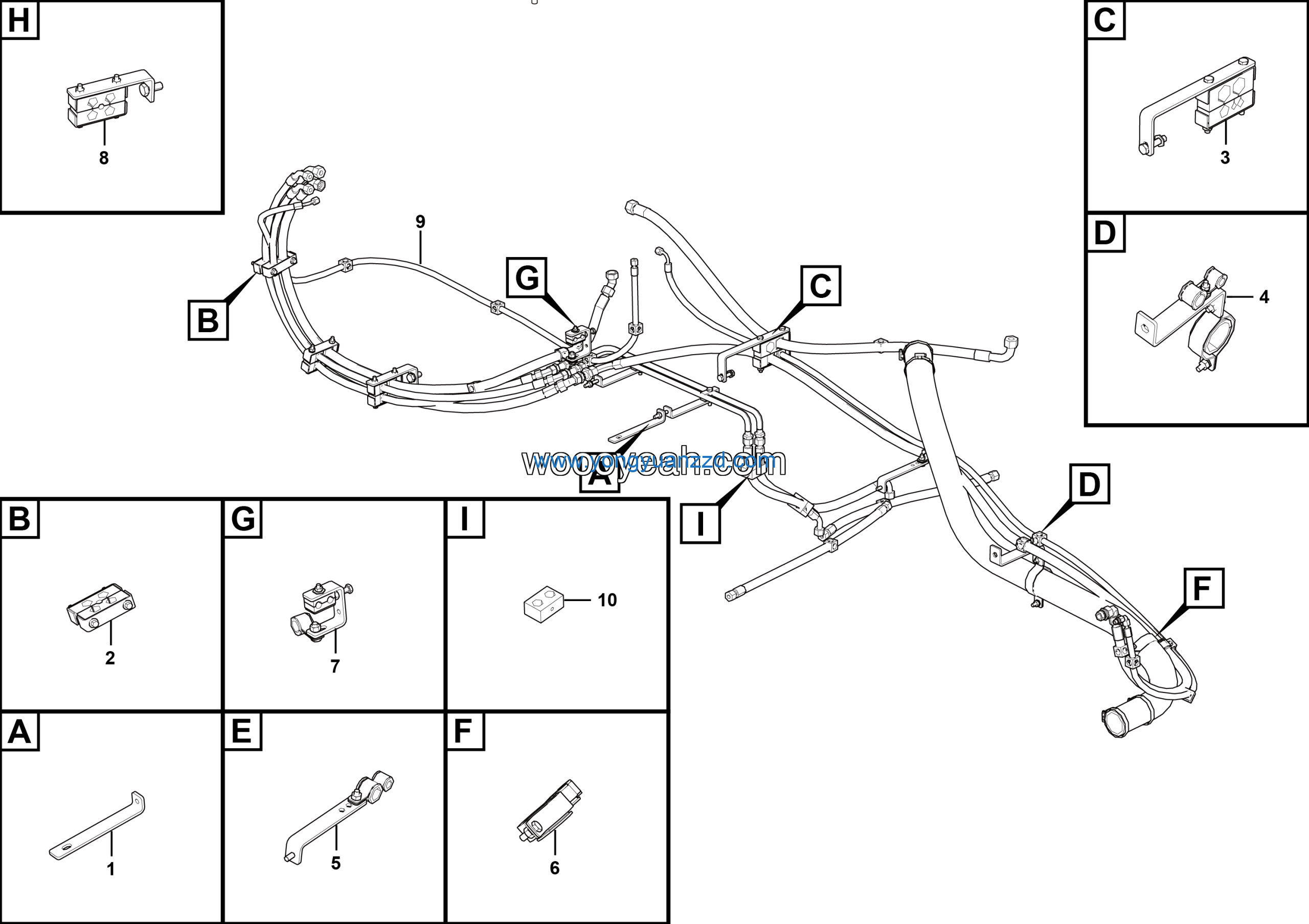

LGMG Off-Highway Dump Truck 2023 – ASM-Steering accessory assy – H1501-2715012503.S1A
Category: 2023 > Off-Highway Dump Truck > MT96LF > M096LW4A0M004
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Clamp TTPG3-323 | 4120710492 | 2 |
| 2 | Bracket | 27150109041 | 1 |
| 3 | Pipe rubber clamp assy | 27150120831 | 2 |
| 4 | Tube bundle brkt assy | 27150124941 | 1 |
| 5 | Asm-bracket | 27150124961 | 1 |
| 6 | Asm-bracket | 27150124991 | 1 |
| 7 | Asm-bracket | 27150125001 | 1 |
| 8 | Asm-bracket | 27150125011 | 1 |
| 9 | Steering pipe clamp installation | 27150125021 | 1 |
| 10 | Hose assembly | 27150125051 | 1 |
