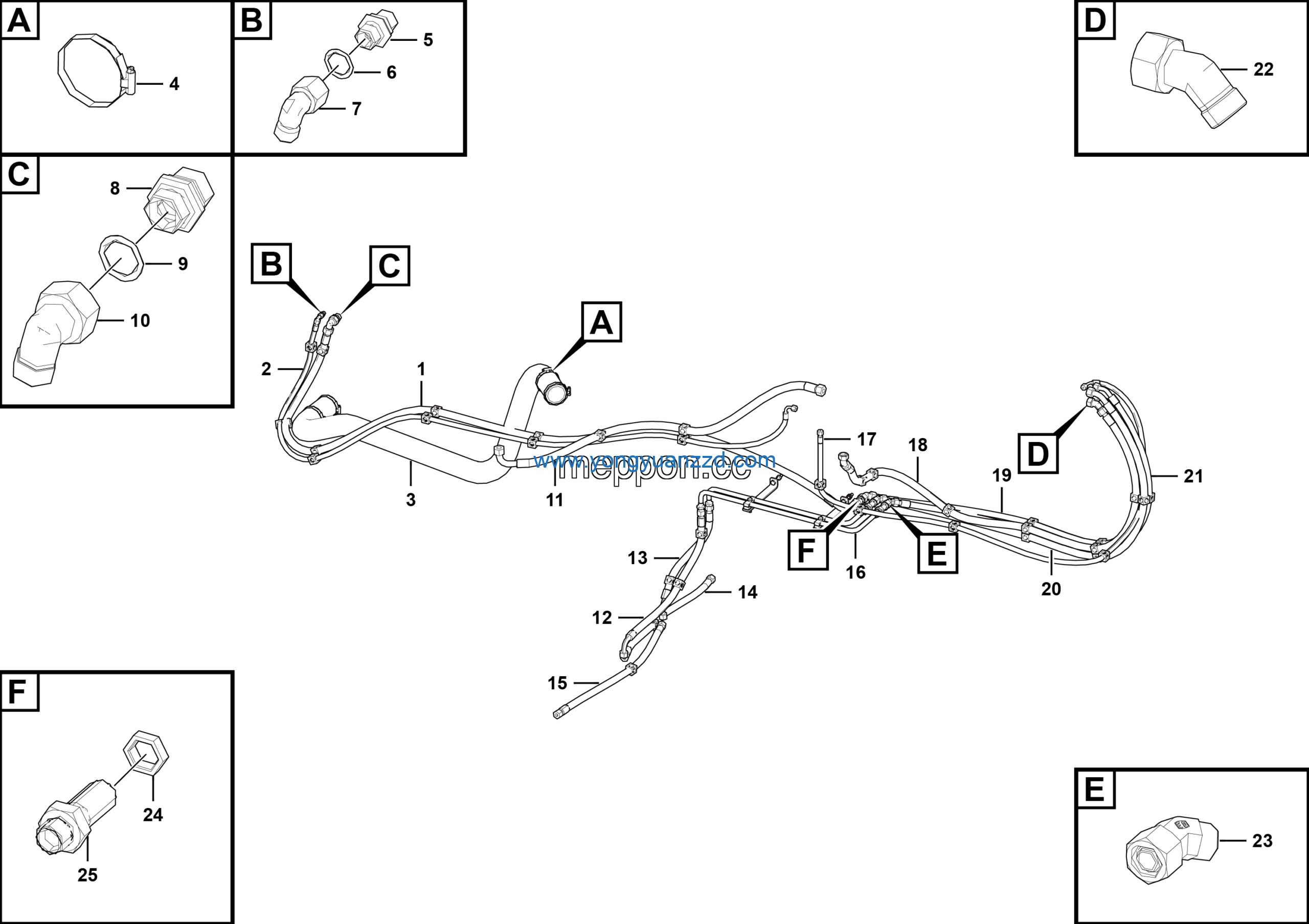

LGMG Off-Highway Dump Truck 2023 – ASM-Steering hoseline assy – H1501-2715012670
Category: 2023 > Off-Highway Dump Truck > MT96LF > M096LW4A0M068
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Combination joint LGB143-02616 | 4041001006 | 1 |
| 2 | High pressure hose 1460 | 2715012347-003 | 1 |
| 3 | Hose LGB128-006085 | 4041000525-002 | 1 |
| 4 | Hose LGB129-006057 | 4041010172-001 | 1 |
| 5 | Hose LGB127-206075 | 4041011075-007 | 1 |
| 6 | Hose LGB127-206075 | 4041011075-008 | 1 |
| 7 | Asm-pipe | 27150126681 | 1 |
| 8 | Hose F481CACE080804-2260 | 4120710588-003 | 1 |
| 9 | Hose F451TCCACA151508-1960 | 4120711200 | 1 |
| 10 | Hose LGB129-006162 | 4041010338-006 | 1 |
| 11 | Hose F681CACF181810-3080 | 4120710806-001 | 1 |
| 12 | Hose LGB166-010175 | 4041010200-003 | 1 |
| 13 | Hose LGB129-006165 | 4041010168-005 | 1 |
| 14 | Combination joint LGB143-12616 | 4041001417 | 1 |
| 15 | Combination joint LGB143-12213 | 4041001218 | 3 |
| 16 | Nut | 27150103221 | 1 |
| 17 | Clapboard joint m26 | 27150116661 | 1 |
| 18 | Hose F681CACF080804-3080 | 4120711201 | 1 |
| 19 | Pipe | 27150126744 | 1 |
| 20 | Hose clamp JB8870-D90 | 4017000013 | 4 |
| 21 | Straight joint LGB120-01414 | 4041000133 | 1 |
| 22 | O-ring LGB168-11124 | 4041000767 | 1 |
| 23 | Combination joint LGB143-01406 | 4041001047 | 1 |
| 24 | Straight joint LGB120-02628 | 4041000796 | 1 |
| 25 | O-ring LGB168-12331 | 4041000779 | 1 |
