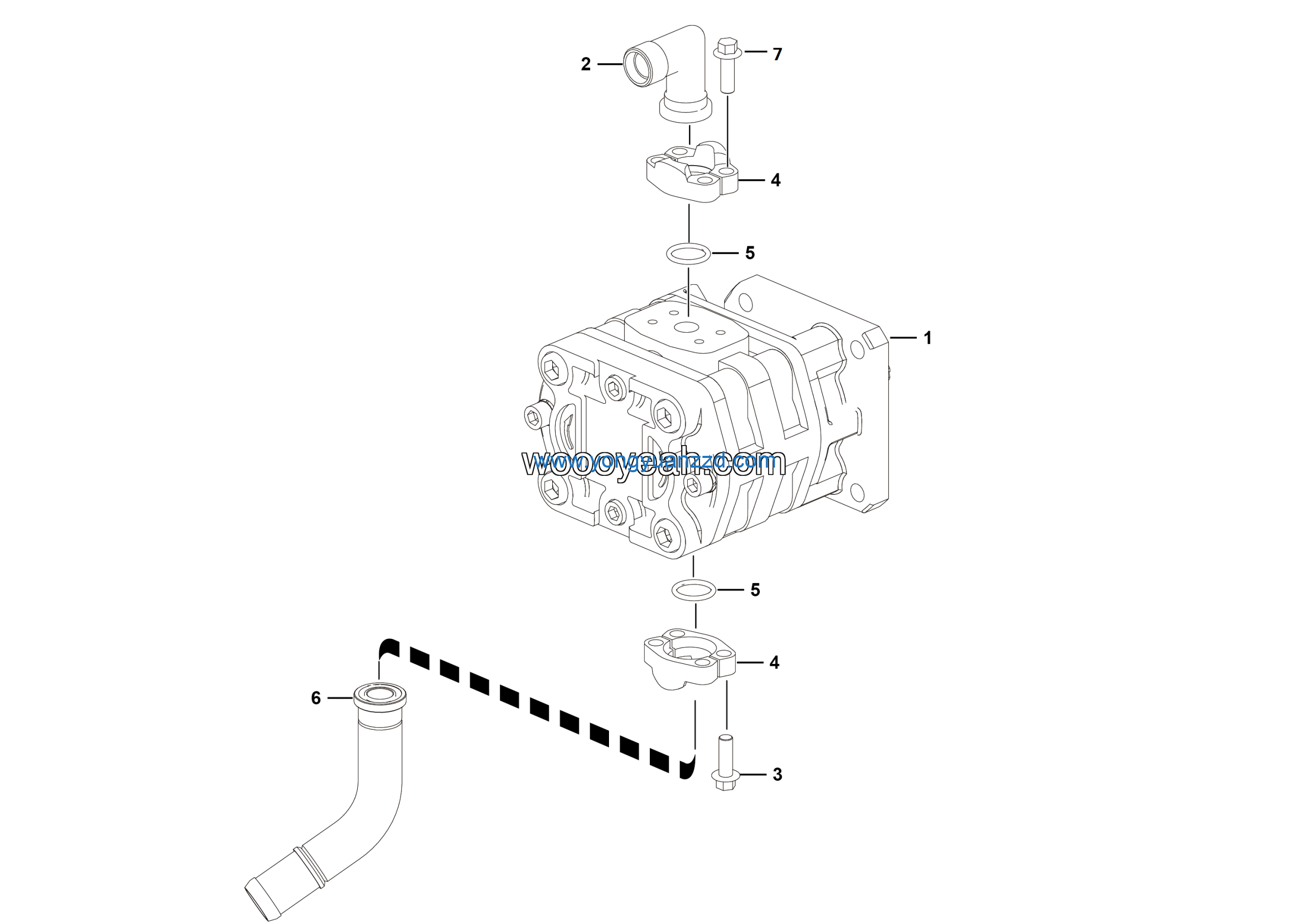

LGMG Off-Highway Dump Truck 2023 – ASM – Steering Pump Assembly – H1501-2715013079
Category: 2023 > Off-Highway Dump Truck > RTH136(EQ) > R1260Y3A0A503
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Gear pump HGP2040RC | 4120001117 | 1 |
| 2 | Flange joint LGB148-03019 | 4041010139 | 1 |
| 3 | Bolt GB16674.1-M10*30EpZn-8.8 | 4011000475 | 4 |
| 4 | FLANGE LGB117-306400 | 4041000137 | 2 |
| 5 | O-ring GB3452.1-25.0*3.55G | 4030000279 | 2 |
| 6 | Oil absorption steel pipe welding | 27150129191 | 1 |
| 7 | Bolt GB16674.1-M8*30EpZn-8.8 | 4011000481 | 4 |
