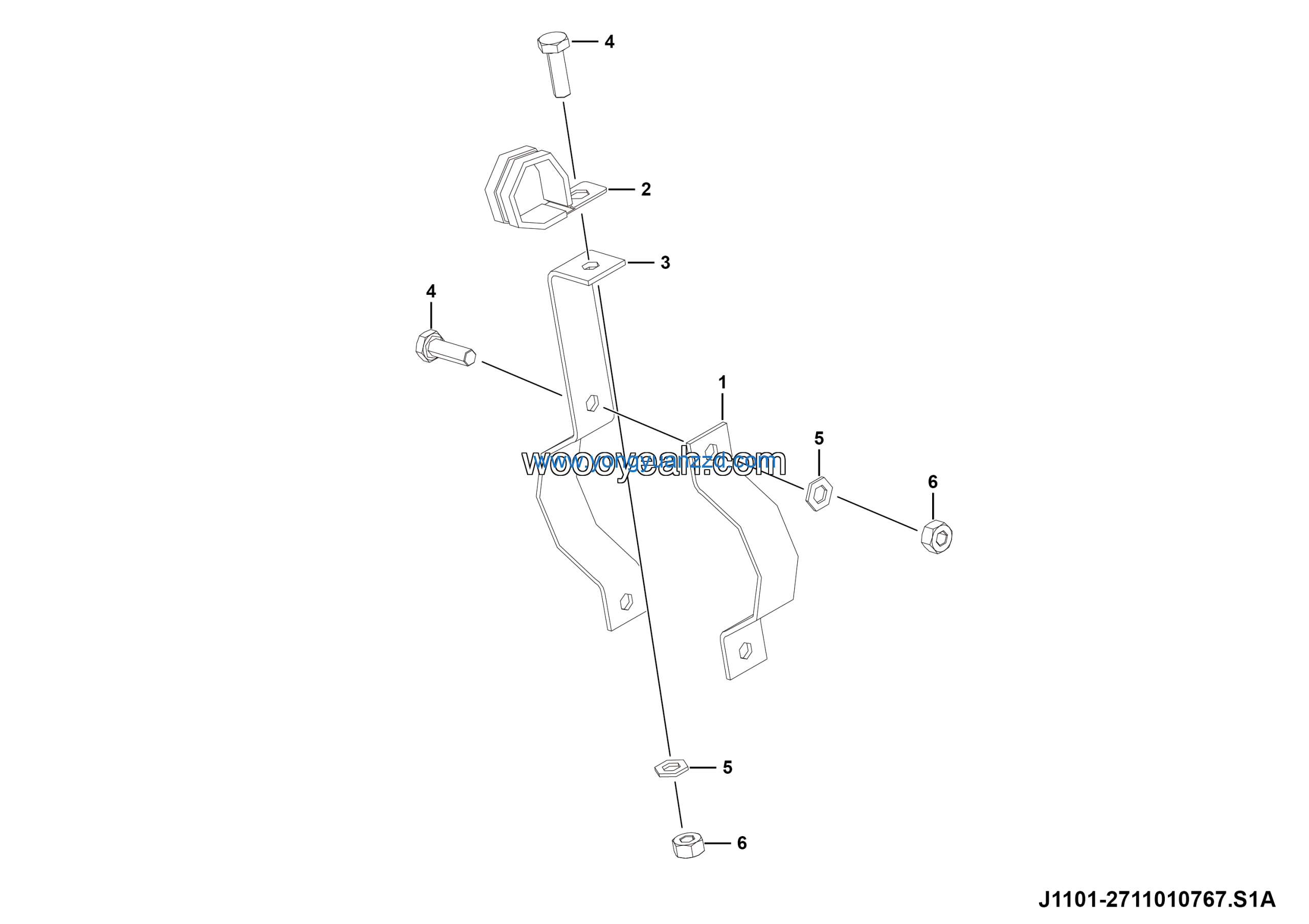

LGMG Off-Highway Dump Truck 2023 – ASM-Tracheal fixing bracket assy – J1101-2711010767.S1A
Category: 2023 > Off-Highway Dump Truck > MT96LF > M096LW4A0M004
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bracket 2 | 27100108201 | 1 |
| 2 | Pipe clamp, for fixing control valve harness | 26370001961 | 1 |
| 3 | Support | 27100108931 | 1 |
| 4 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 3 |
| 5 | Washer GB97.1-10EpZn-300HV | 4015000162 | 3 |
| 6 | Nut GB6170-M10EpZn-8 | 4013000007 | 3 |
