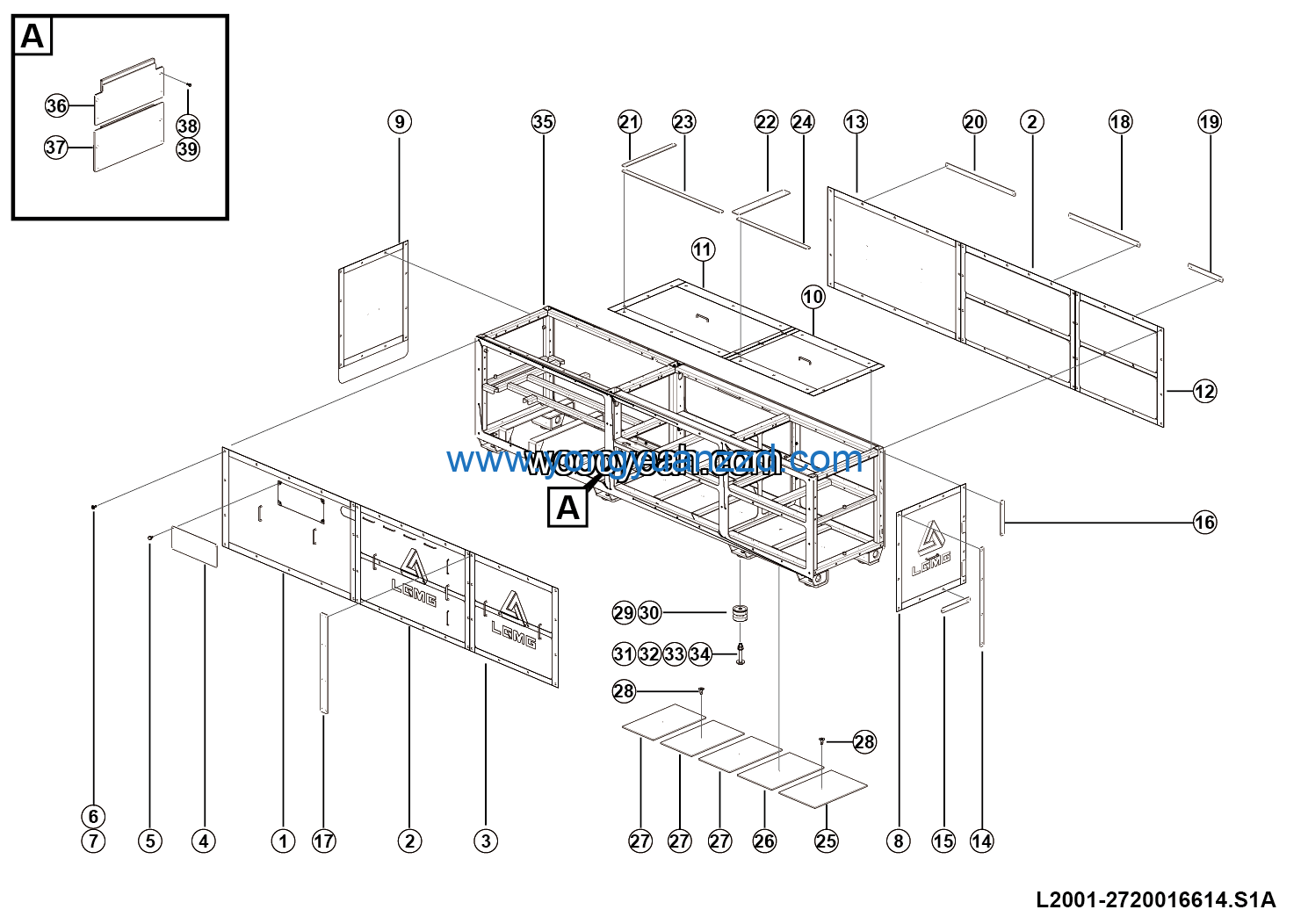

LGMG Off-Highway Dump Truck 2023 – Battery box assy – L2001-2720016614.S1A
Category: 2023 > Off-Highway Dump Truck > RTH136 > R1360Y3A0A102
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Battery box lh upr insulation layer | 27200166061 | 1 |
| 2 | Battery box rh upr insulation layer | 27200166751 | 1 |
| 3 | Battery box lh rr insulation layer | 27200165981 | 1 |
| 4 | Rr cover plate wldmt | 27200166091 | 1 |
| 5 | Hold-down strip 850*40*6 | 27200166861 | 7 |
| 6 | Hold-down strip 310*40*6 | 27200166951 | 4 |
| 7 | Hold-down strip 300*40*6 | 27200166961 | 1 |
| 8 | Hold-down strip 850*80*6 | 27200166921 | 4 |
| 9 | Hold-down strip 780*40*6 | 27200166881 | 4 |
| 10 | Hold-down strip 380*40*6 | 27200166871 | 4 |
| 11 | Fr cover plate wldmt | 27200166821 | 1 |
| 12 | Hold-down strip 765*40*6 | 27200166941 | 4 |
| 13 | Hold-down strip 570*40*6 | 27200166891 | 2 |
| 14 | Hold-down strip 570*80*6 | 27200166901 | 1 |
| 15 | Hold-down strip 1090*40*6 | 27200166931 | 2 |
| 16 | Hold-down strip 785*40*6 | 27200166911 | 2 |
| 17 | Lwr insulation cotton 576*395*10 | 27200165671 | 1 |
| 18 | Lwr insulation cotton 576*380*10 | 27200165681 | 1 |
| 19 | Lwr insulation cotton 580*340*10 | 27200158871 | 3 |
| 20 | Plate | 27200148061 | 5 |
| 21 | Front rubber baes plate | 27010115971 | 8 |
| 22 | Battery box rh fr insulation layer | 27200166001 | 2 |
| 23 | FR mounted shock absorber | 4110702313 | 16 |
| 24 | BOLT GB5782-M22*180flZnyc-12.9-480 | 4011011124 | 8 |
| 25 | Washer GB96.1-22flZnyc-300HV-480 | 4015010587 | 8 |
| 26 | Washer GB1230-22EpZn-45 | 4015000294 | 8 |
| 27 | Nut GB6185.1-M22flZnyc-12-480 | 4013010282 | 8 |
| 28 | Battery box wldmt | 27200165241 | 1 |
| 29 | Inner insulation layer | 27200165891 | 1 |
| 30 | Inner insulation layer 2 | 27200165921 | 1 |
| 31 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 8 |
| 32 | Washer GB97.1-10EpZn-300HV | 4015000162 | 8 |
| 33 | Battery box lh fr insulation layer | 27200165951 | 1 |
| 34 | Bdu fr cover plate 498*198*1.5 | 27200153171 | 1 |
| 35 | Handwheel 462060 | 4190708038 | 4 |
| 36 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 144 |
| 37 | Washer GB96.1-10EpZn-300HV | 4015000197 | 144 |
| 38 | Battery box side insulation layer | 27200166031 | 1 |
| 39 | Side cover plate wldmt | 27200166111 | 1 |
