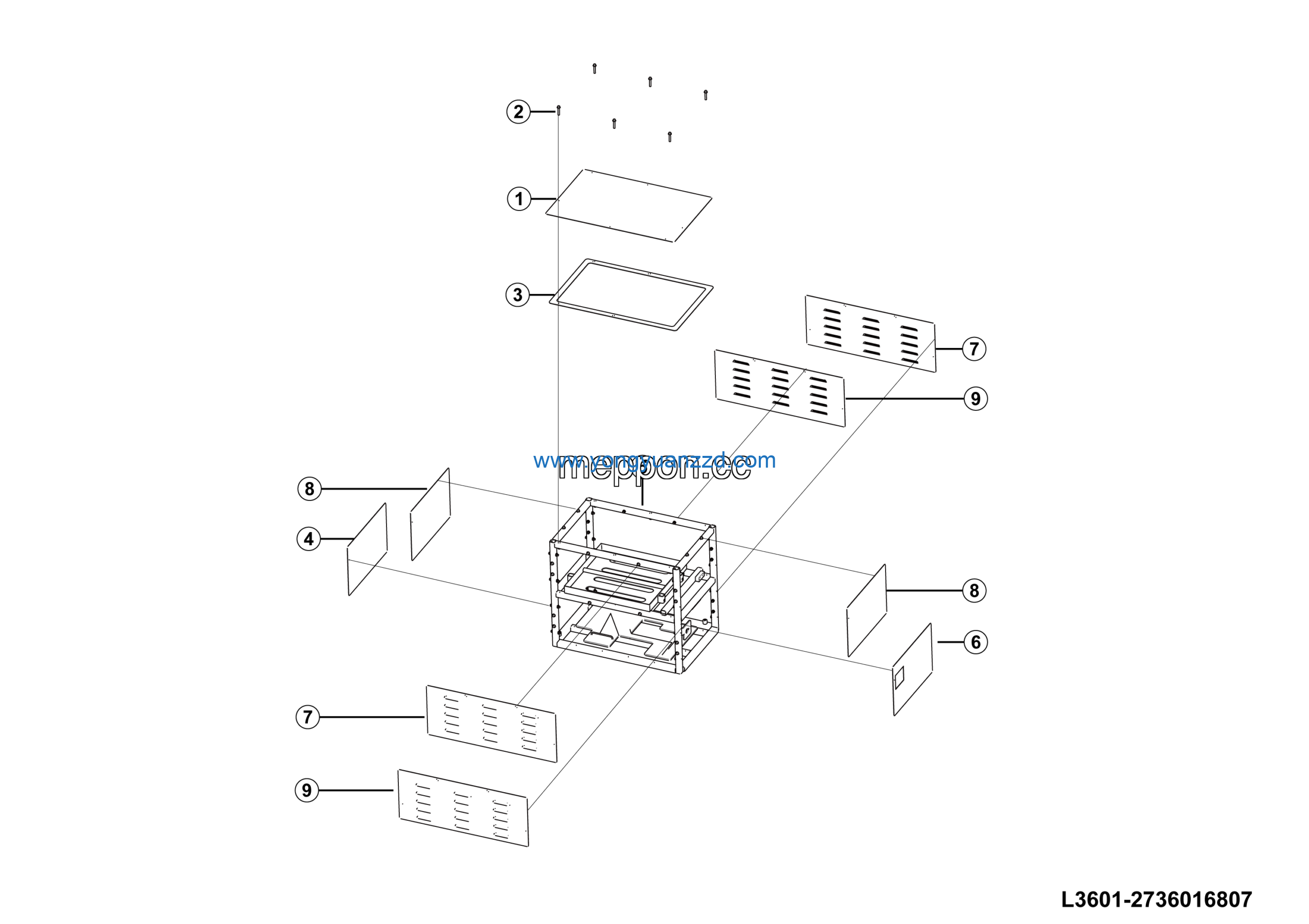

LGMG Off-Highway Dump Truck 2023 – Battery box assy – L3601-2736016807
Category: 2023 > Off-Highway Dump Truck > RT136 > R1360Y3A0M001
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Top cover 743.5*480*2 | 27360163282 | 1 |
| 2 | Bolt GB16674.1-M8*45EpZn-8.8 | 4011000527 | 42 |
| 3 | Rubber strip 736*476*2 | 27360163572 | 1 |
| 4 | Cover | 27360133831 | 1 |
| 5 | Battery box frame weldment | 27360168082 | 1 |
| 6 | Plate | 27360158841 | 1 |
| 7 | Cover fr | 2736013385２ | 2 |
| 8 | Cover | 27360133841 | 2 |
| 9 | Cover fr | 2736013386２ | 2 |
