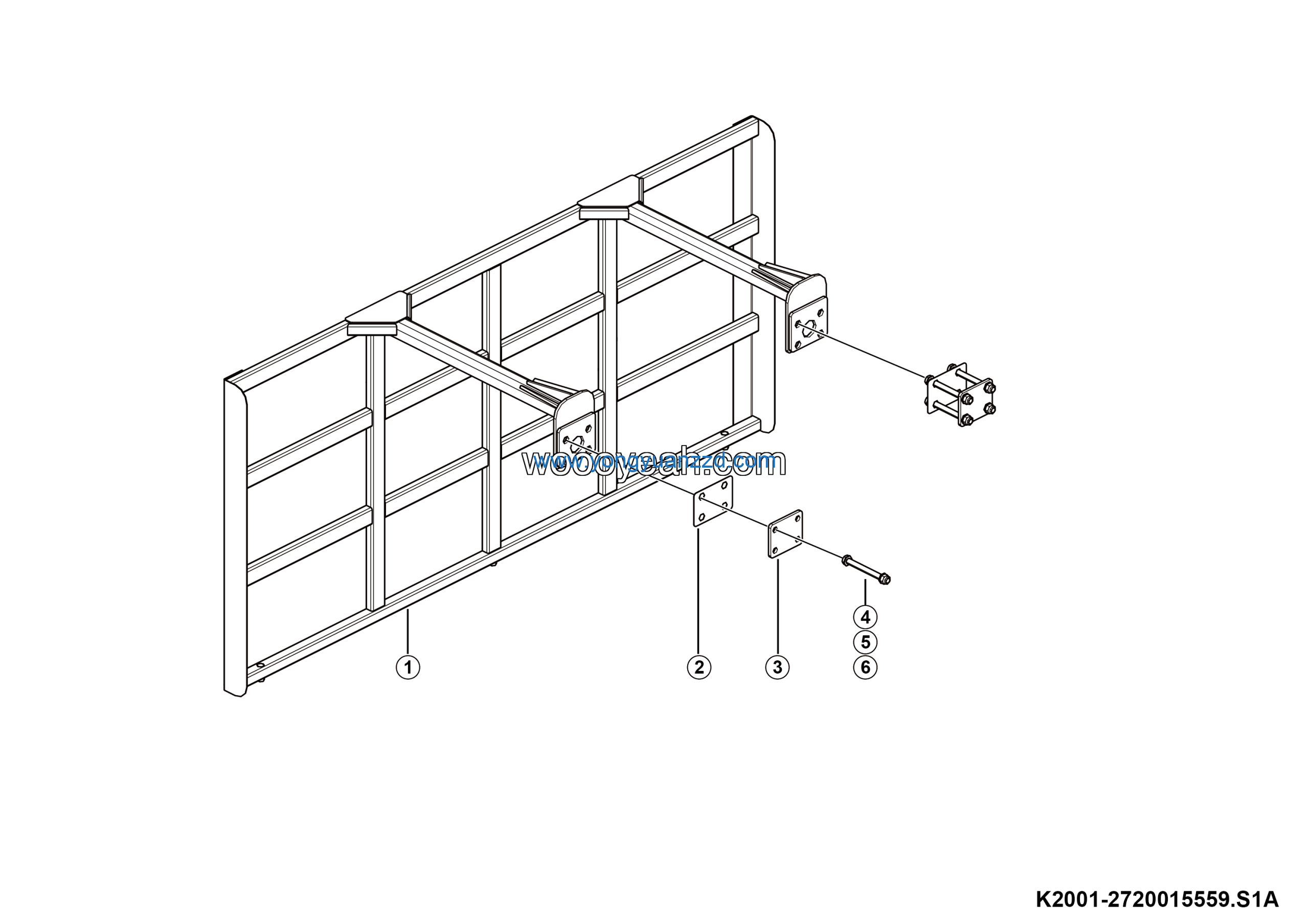

LGMG Off-Highway Dump Truck 2023 – Battery external protection assy – K2001-2720015559.S1A
Category: 2023 > Off-Highway Dump Truck > CMTE106H > C106HE0A0A406
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | External protection welding of battery | 27200155601 | 1 |
| 2 | Plate | 27200150461 | 2 |
| 3 | Plate | 27200150471 | 2 |
| 4 | Bolt GB5785-M18*1.5*180flZnyc-12.9-480 | 4011011695 | 8 |
| 5 | Washer GB97.1-18EpZn-300HV | 4015000182 | 16 |
| 6 | Nut GB6185.2-M18*1.5flZnyc-12-480 | 4013010239 | 8 |
