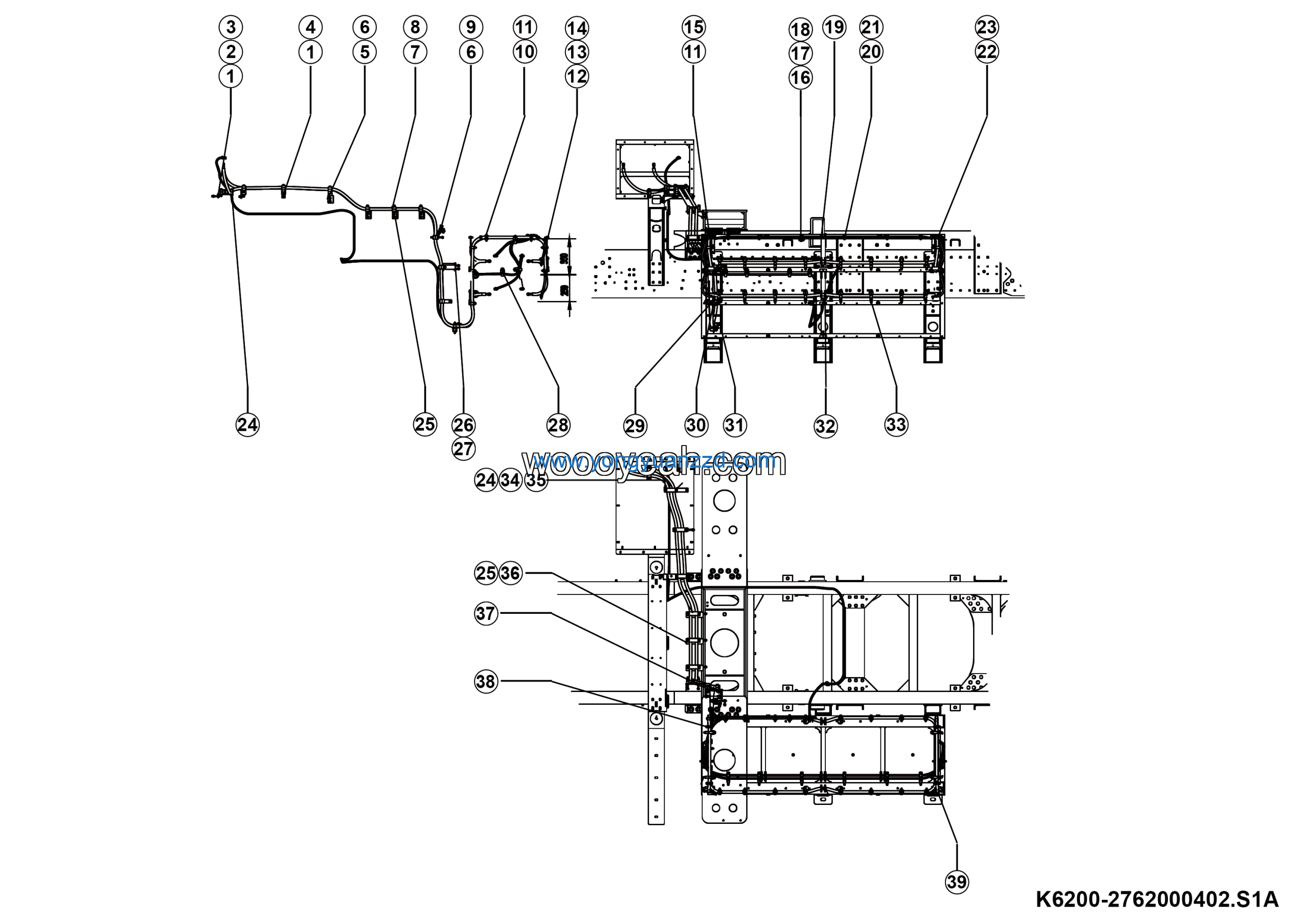

LGMG Off-Highway Dump Truck 2023 – Branch A electrical assy – K6200-2762000402.S1A
Category: 2023 > Off-Highway Dump Truck > CMTE106H > C106HE0A0A401
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Cable tie 14400342 | 4130703098 | 37 |
| 2 | Bolt GB5783-M8*30EpZn-8.8 | 4011000107 | 59 |
| 3 | Ground wire BZW-50*350 | 2762000155-087 | 4 |
| 4 | Bolt GB5783-M8*20EpZn-8.8 | 4011000105 | 8 |
| 5 | Washer GB862.2-10-65Mn | 4015010586 | 4 |
| 6 | Bracket | 27620002551 | 3 |
| 7 | Nut GB6170-M8EpZn-8 | 4013000033 | 78 |
| 8 | Washer GB97.1-8EpZn-300HV | 4015000072 | 144 |
| 9 | Bracket | 27620002681 | 6 |
| 10 | Protecting bush6*66 | 27620003961 | 6 |
| 11 | L-bracket 140*30*4 | 27620004141 | 2 |
| 12 | Tube bank plate 84*13*25 | 27620003991 | 12 |
| 13 | Bolt GB5782-M8*45EpZn-8.8 | 4011000298 | 12 |
| 14 | Support | 27620003331 | 4 |
| 15 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 4 |
| 16 | Bolt GB5782-M10*65EpZn-8.8 | 4011000497 | 12 |
| 17 | Bolt GB5783-M10*40EpZn-8.8 | 4011000184 | 7 |
| 18 | Bracket 200*110*70 | 27620004081 | 1 |
| 19 | Bolt GB5782-M10*50EpZn-8.8 | 4011000048 | 2 |
| 20 | Bolt GB5783-M8*65EpZn-8.8 | 4011010633 | 3 |
| 21 | Bracket 140*70*30 | 27620004071 | 1 |
| 22 | Nut GB6170-M10EpZn-8 | 4013000007 | 40 |
| 23 | Cable tie HS-J117 | 4130704969 | 3 |
| 24 | Bracket | 27620001221 | 1 |
| 25 | Protecting bush | 27620003221 | 6 |
| 26 | Support | 27620003431 | 16 |
| 27 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 1 |
| 28 | Support3 | 27340113411 | 1 |
| 29 | Harness bracket weldment | 27620004441 | 1 |
| 30 | Bolt GB5782-M10*110EpZn-8.8 | 4011000797 | 4 |
| 31 | Jacket 10*60 | 27620003971 | 4 |
| 32 | protection | 4130705914-002 | 4 |
| 33 | Washer GB97.1-10EpZn-300HV | 4015000162 | 81 |
| 34 | Bolt GB5783-M10*100EpZn-8.8 | 4011000914 | 3 |
| 35 | Support | 27620003441 | 1 |
| 36 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 7 |
| 37 | Tube bank plate 120*35*20 | 27620003811 | 26 |
| 38 | Bolt GB5782-M10*75EpZn-8.8 | 4011000052 | 4 |
| 39 | Support | 27620003361 | 1 |
