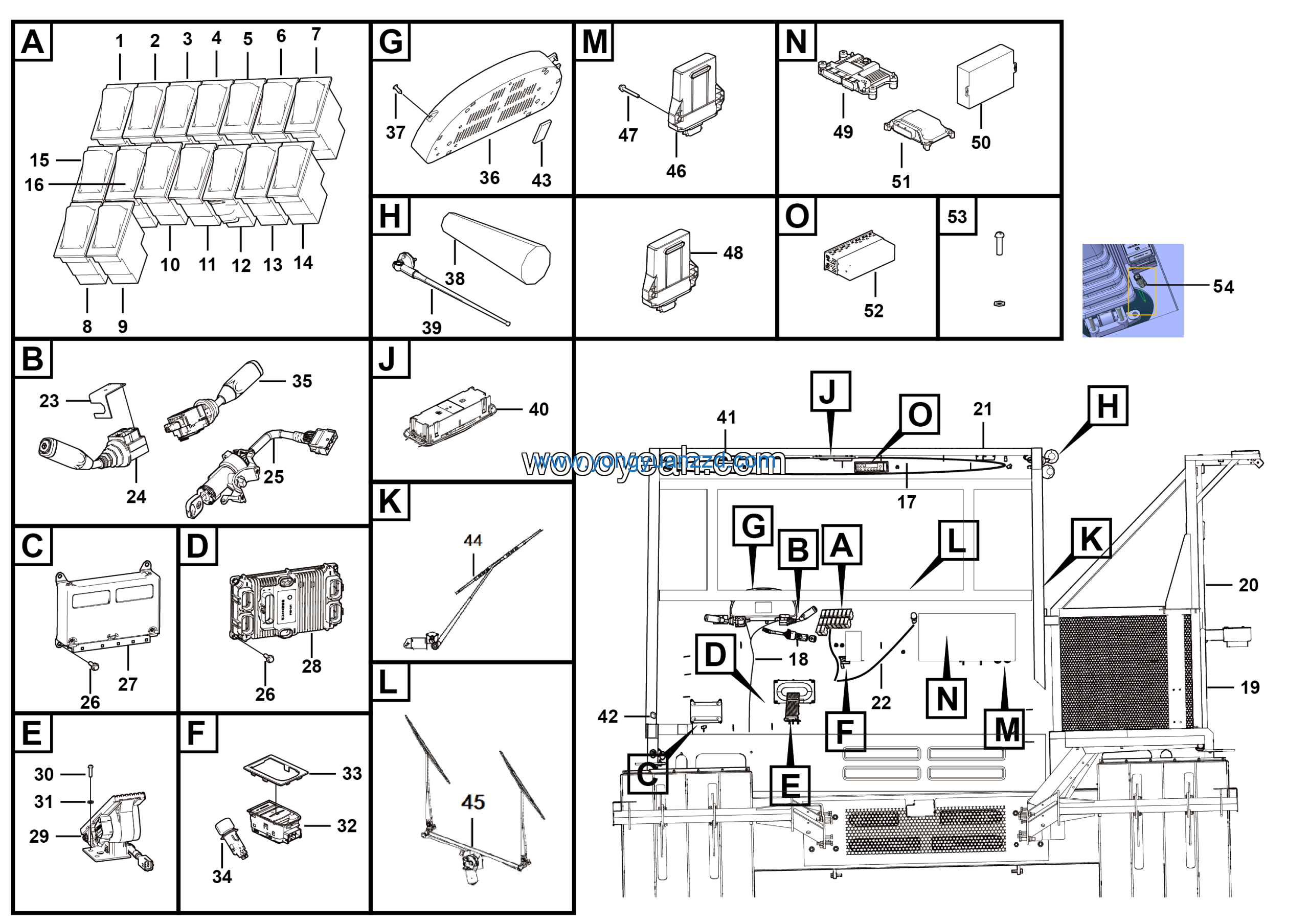

LGMG Off-Highway Dump Truck 2023 – Cab electrical system – L1301-2713013949.S1A-G1
Category: 2023 > Off-Highway Dump Truck > MTE86U > M086HE0A0A001
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Horn rocker switch JK939C | 4130000315 | 1 |
| 2 | Emergency steering rocker switch JK939C | 4130701384 | 1 |
| 3 | Cargo tank flipping rocker switch | 4130702534 | 1 |
| 4 | Driving mode rocker switch JK939C | 4130705616 | 1 |
| 5 | Driving mode rocker switch | 4130702535 | 1 |
| 6 | Wiper washing rocker switch JK939C | 4130000819 | 1 |
| 7 | Side window wiper rocker switch JK939C | 4130000341 | 1 |
| 8 | Roof harness | 27130139931 | 1 |
| 9 | Cab harness | 27130139921 | 1 |
| 10 | Platform harness | 2720010609-002 | 1 |
| 11 | Work/position light rocker switch JK939C | 4130000318 | 1 |
| 12 | Electrical assembly | 27130140091 | 1 |
| 13 | Front overhead light harness | 27130140071 | 1 |
| 14 | Warped switch wiring harness | 27130139941 | 1 |
| 15 | Retarder handle bracket | 27370102281 | 1 |
| 16 | Slow-speed handle CS-102628-1 | 4130705040 | 1 |
| 17 | Lgnition lock-81.46433.6009-1 | 4130001175 | 1 |
| 18 | Bolt GB16674.1-M6*20EpZn-8.8 | 4011000154 | 10 |
| 19 | EBS Controller 36352010010 | 4120706428 | 1 |
| 20 | FR drive MOD KM7023 | 4130705592 | 1 |
| 21 | ELEK accelerator pedal 403269 | 4130701363 | 1 |
| 22 | FR fog lamp rocker switch JK939C | 4130000314 | 1 |
| 23 | Screw GB818-M6*20EpZn-4.8 | 4014000040 | 5 |
| 24 | Washer GB97.1-6EpZn-300HV | 4015000207 | 5 |
| 25 | EPB Switch 35082000110 | 4120709610 | 1 |
| 26 | EPB Switch connections 35082000023 | 4120709611 | 1 |
| 27 | Cigarette lighter LG770 | 4130000364 | 1 |
| 28 | Combination switch CS-102621 | 4130001174 | 1 |
| 29 | LCD instrument panel BEV 3266 | 4130703266 | 1 |
| 30 | Screw GB846-ST4.8*16-C-H | 4014000071 | 4 |
| 31 | Horn TX1033AR29 | 4130000299 | 2 |
| 32 | Antenna QT1290B259 | 4130000300 | 1 |
| 33 | Central alarm rocker switch JK939C | 4130000320 | 1 |
| 34 | Indoor ceiling lamp LG751 | 4130000312 | 1 |
| 35 | Cab FR position light | 4130000954 | 4 |
| 36 | Door lamp switch LG751 | 4130000323 | 1 |
| 37 | Cover plate | 4130000328 | 3 |
| 38 | Side wiper sys | 4130000807 | 1 |
| 39 | Integral wiper 37419000040 | 4130000949 | 1 |
| 40 | T-BOX | 4130705674 | 1 |
| 41 | Bolt GB16674.1-M6*40EpZn-8.8 | 4011000281 | 10 |
| 42 | T-BOX antenna | 4130703544 | 1 |
| 43 | Vehicle Controller VECU | 4130704605 | 1 |
| 44 | Main-beam headlamp rocker switch JK939C | 4130000331 | 1 |
| 45 | CAN Dtu-400ER | 4130704841 | 1 |
| 46 | Transmission box controller TCU-MPC5604 | 4130705585 | 1 |
| 47 | Radio SL-630E | 4130705265 | 1 |
| 48 | Self-assembled standard parts assembly | 27130121631 | 1 |
| 49 | MTE86U fog lamp | 2713014118 | 1 |
| 50 | Cab RR work lamp rocker switch JK939C | 4130000342 | 1 |
| 51 | Work lamp rocker switch JK939C | 4130000319 | 1 |
| 52 | Rocker switch JK939C（Differential） | 4130000317 | 1 |
| 53 | Spare 1 rocker switch JK939C | 4130705614 | 1 |
| 54 | Spare 2 rocker switch JK939C | 4130705615 | 1 |
