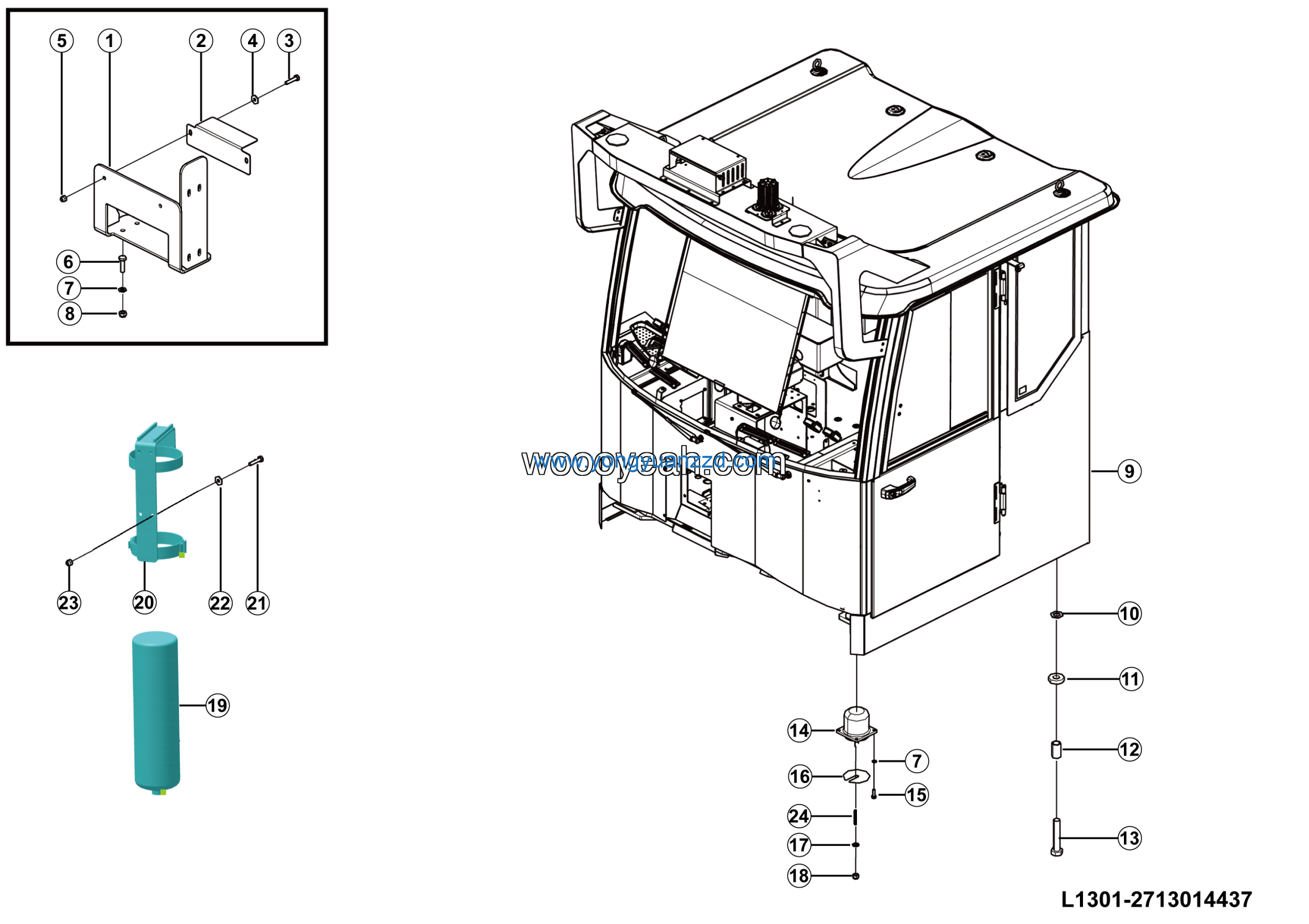

LGMG Off-Highway Dump Truck 2023 – Cab installation – L1301-2713014437
Category: 2023 > Off-Highway Dump Truck > EL100 > R1260Y3A0A602
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB97.1-30EpZn-300HV | 4015000119 | 2 |
| 2 | Spring | 27130116051 | 2 |
| 3 | PLATE | 27360117531 | 2 |
| 4 | Bolt GB5785-M30*2*155EpZn-8.8 | 4011000397 | 2 |
| 5 | Shock absorber 10107-01-A1 | 4190709116 | 4 |
| 6 | Bolt GB5783-M10*35EpZn-10.9 | 4011000569 | 16 |
| 7 | Adjusting shim 120*1.5 | 27130143421 | 4 |
| 8 | Locking washer NL20-G | 4190707163 | 4 |
| 9 | Nut GB6185.2-M20*2flZnyc-12-480 | 4013010564 | 4 |
| 10 | Fire extinguisher 5kg | 4190708019 | 1 |
| 11 | Kettle fire extinguisher bracket weldment | 27130134221 | 1 |
| 12 | Fire extinguisher trestle | 27360132422 | 1 |
| 13 | Bolt GB5783-M8*25EpZn-8.8 | 4011000106 | 4 |
| 14 | Washer GB97.1-8EpZn-300HV | 4015000072 | 4 |
| 15 | Nut GB6185.1-M8EpZn-8 | 4013010118 | 4 |
| 16 | Stud m20*2*90 | 27130143511 | 4 |
| 17 | Plate | 27130119081 | 1 |
| 18 | Bolt GB5783-M8*35EpZn-8.8 | 4011000195 | 2 |
| 19 | Washer GB96.1-8EpZn-300HV | 4015000256 | 4 |
| 20 | Nut GB889.1-M8EpZn-8 | 4013000210 | 2 |
| 21 | Bolt GB5783-M10*35EpZn-8.8 | 4011000085 | 4 |
| 22 | Washer GB97.1-10EpZn-300HV | 4015000162 | 20 |
| 23 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 4 |
| 24 | Cab assy LG13-JSS-9604 | 4190709604 | 1 |
