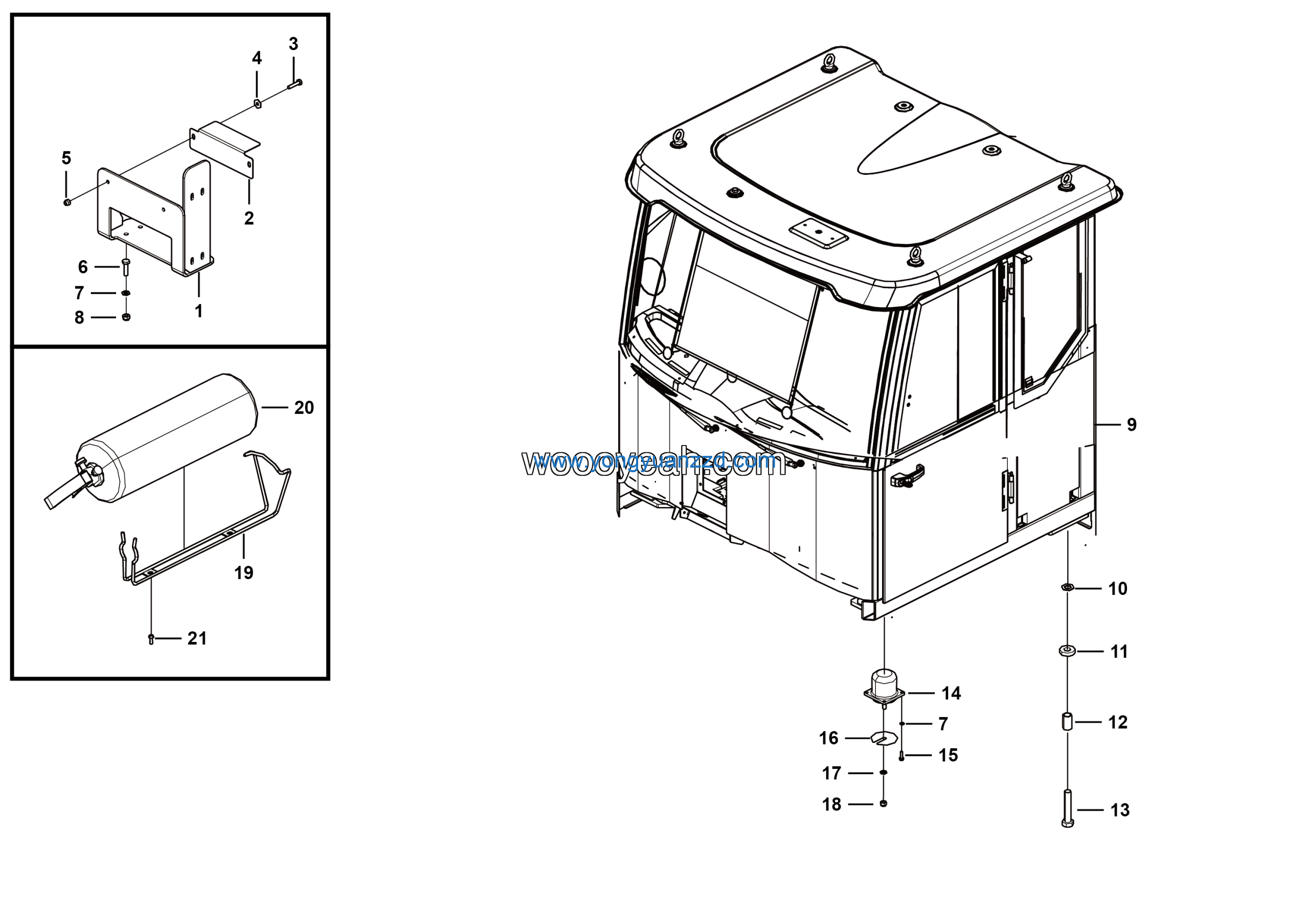

LGMG Off-Highway Dump Truck 2023 – Cab mounting assenbly – L1301-2713014084.S1A
Category: 2023 > Off-Highway Dump Truck > RT90 > R090HW3A0A006
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Washer GB97.1-30EpZn-300HV | 4015000119 | 2 |
| 2 | Spring | 27130131911 | 2 |
| 3 | Spacer | 27130124861 | 2 |
| 4 | BOLT GB5785-M30*2*130EpZn-8.8 | 4011000410 | 2 |
| 5 | Shock absorber | 4190704147 | 4 |
| 6 | Bolt GB5783-M10*35EpZn-10.9 | 4011000569 | 16 |
| 7 | Plate | 27130122211 | 4 |
| 8 | Washer GB97.1-16EpZn-300HV | 4015000181 | 4 |
| 9 | Nut GB6185.1-M16flZnyc-12-480 | 4013010251 | 4 |
| 10 | Fire extinguisher bracket | 4190003487 | 1 |
| 11 | Kettle fire extinguisher bracket weldment | 27130134221 | 1 |
| 12 | Fire extinguisher | 4190003486 | 1 |
| 13 | Screw GB818-M5*12EpZn-4.8 | 4014000048 | 2 |
| 14 | Plate | 27130119081 | 1 |
| 15 | Bolt GB5783-M8*20EpZn-8.8 | 4011000105 | 2 |
| 16 | Washer GB97.1-8EpZn-300HV | 4015000072 | 2 |
| 17 | Nut GB889.1-M8EpZn-8 | 4013000210 | 2 |
| 18 | Bolt GB5783-M10*30EpZn-8.8 | 4011000084 | 4 |
| 19 | Washer GB97.1-10EpZn-300HV | 4015000162 | 20 |
| 20 | Nut GB6185.1-M10EpZn-8 | 4013010119 | 4 |
| 21 | Cab assy LG13-JSS-8595 | 4190708595 | 1 |
